LUOYANG SANWU CABLE GROUP CO.,LTD.
Professional Cable and Conductor Manufacturer
 |
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | ACAR |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | USD 0.2-20 per meter |
| Packaging Details: | wooden drums |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per day |
| Conductor: | Aluminum | Core: | Aluminum Alloy |
|---|---|---|---|
| Color: | Silver | Insulation: | Bare |
| Application: | Aerial Power Distribution Lines | Rated Voltage: | 0.6-1kv |
| Service Life: | 70 Years | Warranty: | 1 Year |
| High Light: | 500MCM Aluminium Conductor Alloy Reinforced,750MCM transmission line conductor,750MCM Aluminium Conductor Alloy Reinforced |
||

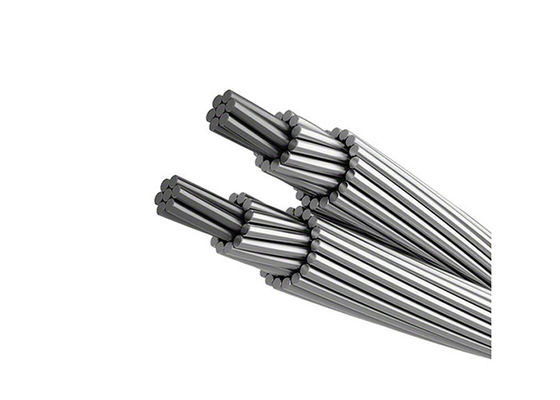

Outdoor Bare Aluminium Conductor Alloy Reinforced Flexible Low Voltage
| Product Name | Aluminum Conductor Alloy Reinforced (ACAR) |
| Conductor | Aluminum |
| Construction | Aluminum Stranded & Aluminum Alloy Reinforce |
| Colors | Assorted upon request |
| Voltage | 600-1000V, 1KV-35KV |
| Application | Used as bare overhead conductor for power distribution lines |
| Standards | GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request |
1.Applications:
ACAR is used as bare cable for overhead transmission and distribution lines and also as bus-bar in substations where is highly suitable considering the mechanical and electrical characteristics.
As comparison with ACSR of same weight, ACAR can offers higher mechanical strength.
2.Features :
Aluminum Conductor Alloy Reinforced (ACAR)
cable is an excellent conductor choice where current
carrying capacity, higher strength and a lower conductor
weight are critical to the line design.
3.Construction:
Wires of Aluminium 1350-H19 is concentrically stranded on Aluminium Alloy 6201 core. The number of wires of each one depends on the cable design.
In some cable constructions the wires of Aluminium Alloy 6201 can be distributed in layers throughout the Aluminium 1350-H19.
Producing Process:
Our Products:
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
