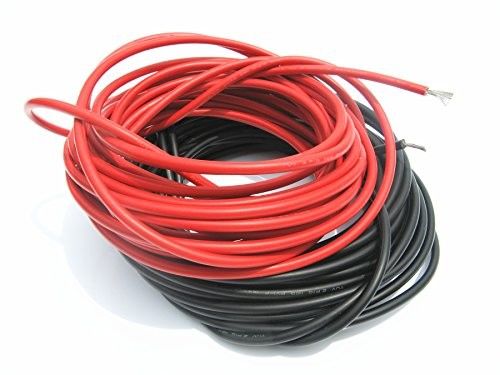

XLPO Insulation jacket DC 0.6/1kv Solar Power Cable

XLPO Insulation jacket DC 0.6/1kv Solar Power Cable

    • XLPO Insulation jacket DC 0.6/1kv Solar Power Cable
    • XLPO Insulation jacket DC 0.6/1kv Solar Power Cable
    • XLPO Insulation jacket DC 0.6/1kv Solar Power Cable
    • XLPO Insulation jacket DC 0.6/1kv Solar Power Cable
    • XLPO Insulation jacket DC 0.6/1kv Solar Power Cable
  • XLPO Insulation jacket DC 0.6/1kv Solar Power Cable

    Product Details:

    Place of Origin: Luoyang,China
    Brand Name: Sanwu
    Certification: IS09001, IS014001,OHSAS18001,TUV
    Model Number: Solar cable 010

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000meters
    Price: Negotiable
    Packaging Details: 100 meters/roll 2 rolls/carton
    Delivery Time: 1-7 work days after we receive your payment
    Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1000km per month
    Contact Now
    Detailed Product Description
    Conductor: Tinned /Annealed Copper Insulated: XLPE/PE
    Jaket: XLPE/PE Cable Spec: 2.5-185mm2
    Application: Solar Power System Market: All Over The World
    High Light:

    0.6/1kv Solar Power Cable

    ,

    XLPO Solar Power Cable

    ,

    0.6/1kv solar dc cable

    PV1-F 0.6/1kv dc solar power cable with copper conductor xlpo insulation and jacket



    ---Application

    Our TÜV PV1-F photovoltaic (PV) cables are intended for interconnecting power supplies within photovoltaic systems such as solar panel arrays in solar energy farms. These cable are suitable for fixed installations, both internal and external, and within conduits or systems, but not for direct burial applications.
    These PV cables have an AC voltage rating of 0.6/1kV and a DC voltage rating of 0.9/1800kV. Their operating temperature range is -40ºC to +90ºC.



    ---Standards
    TÜV PV1-F TUV 2 pfg 1169.08-2007



    ---Rated Voltage

    0.6/1KV



    ---No. of cores

    1C, 2C.



    ---Nominal cross-section

    1.5-400 mm2



    ---Construction

    Conductor: Annealed soft tinned copper wire, meets to IEC60228.

    Insulation: XLPE, Halogen-free cross-linked compound.

    Sheath: WDZ, Halogen-free cross-linked flame retardant compound



    --Temperature Rating

    -25°C to +90°C



    --Minimum Bending Radius
    1.5mm2 to 16mm2 - Fixed: 6 x overall diameter
    25mm2 and above - Fixed: 8 x overall diameter



    --Core Identification

    1 core: black, red, orange or others
    2 core: Brown, Blue
    3 core: Brown, Black, Grey
    4 core: Brown, Blue, Black, Grey
    5 core: Green/Yellow, Brown, Blue, Black, Grey



    --Sheath Colour
    Black



    --Main Production Processes

    1.Copper wire drawing and annealing.

    2.Copper wire stranding.

    3.XLPE insulation extruding.

    4.Cores Twisting.



    5.Outer sheath extruding and labeling.

    6.Packing

    Application
    Photovoltaic cable is mainly used in the line-line photovoltaic equipment systems under maximum 1.8KV DC voltage with safety class II. It should have the characteristics of O-Zone and weather resistance, UV resistance, cid and alkali resistance, cold resistance, high wear and abrasion resistance, halogen free and flame retardant. It should also be compatible with standard joint and connection system.

    Advantages
    Electron-beam cross-linked compounds
    UV, ozone and hydrolysis resistant
    High temperature resistant, the materials do not melt or flow
    Good cold flexibility
    Very long service life >25 years at 90℃
    Compatible to all popular connectors

    Packaging : 100 meters/roll. Or packed on wooden drum, as per customer’s requirements.
    HS Code: 8544492100

    Characteristics
    Ambient temperature: 60℃
    Max. conductor working temperature : 120℃
    Rated temperature: -40~90℃
    Rated Rating: DC:1/1.8KV AC: 0.6/1KV
    Rated Current: 33~57A 41~98A
    Weathering Resistance: Sun Resistant
    PV1-F 600/1000v dc solar cable 10AWG 6mm photovoltaic power cable

    Parameter


    Item

    Unit

    Technical parameter
    Rated temperature -40~+90
    Rated Rating AC/DC(kv) 0.6~1.0/1.8
    Cable Core No. 1
    Cross-Section Area mm2 4.0 6.0
    Number/Diameter of wires NO./mm 56/0.30 84/0.3
    Diameter of copper conductor mm 2.6 3.5
    Thickness of the Insulation mm 0.7 0.7
    Thickness of the Sheath mm 1.4 1.4
    Outer Dia. mm 6.8 7.7
    weight for reference Kg/km 82.63 109.6
    Conductor resistance(20℃) Ω/km 4.95 3.3

    125℃ Min insulation resistance
    mΩ.km 0.0367x1012 0.0367x1012

    Conductor Max. permission traction
    N 280 420
    Voltage test on completed cable kV/min

    6.5/5 No breakdown



    XLPO Insulation jacket DC 0.6/1kv Solar Power Cable 1
