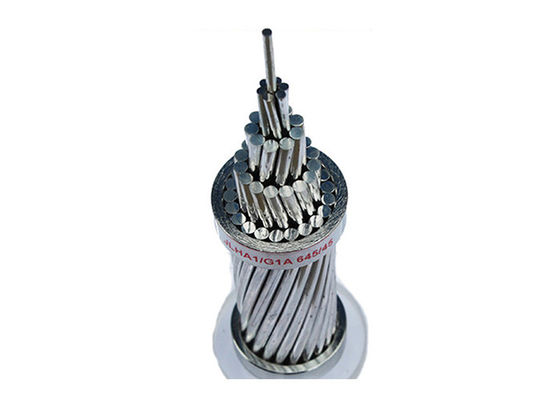

High Voltage cable 330kv 4 Core ACSR AS

High Voltage cable 330kv 4 Core ACSR AS

  • High Voltage cable 330kv 4 Core ACSR AS
  • High Voltage cable 330kv 4 Core ACSR AS
High Voltage cable 330kv 4 Core ACSR AS
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: ACSR/AS
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: USD 0.2-2.22 per meter
Packaging Details: Wooden drums packaging with different sizes
Delivery Time: 1-15days
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Conductor: Aluminum Core: Aluminum Clad Steel
Color: Silver Insulation: Bare
Rated Voltage: 1-330kv Application: Aerial Power Distribution Lines
Service Life: 70 Years Warranty: 1 Year
High Light:

4 Core ACSR AS

,

330kv ACSR AS

,

4 Core aluminium conductor cable

ACSR/AS Aluminum Conductor Aluminum Clad Steel Reinforced 4 Core 1-330kv High Voltage Cable



 Product Show
Product Name Aluminum Conductor Alloy Reinforced (ACAR)
Conductor Aluminum
Construction Aluminum Stranded & Aluminum-Clad Steel Reinforce
Voltage 600-1000V, 1KV-35KV
Application Used as bare overhead conductor for power distribution lines
Standards GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request

ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium (E.C. GRADE). ACSR Conductor may be manufactured for having a wide range of tensile strength as per requirement. The principal advantage of these conductors are high tensile strength and light weight with longer spans as well as with lesser supports. Due to the greater diameter of ACSR Conductor a much higher corona limit can be obtained causing big advantages on high as well as extra high voltage overhead lines.

High Voltage cable 330kv 4 Core ACSR AS 0

Features

1)Rated voltage is 500KV or lower

2) ACSR bare conductor meets or exceeds the following ASTM specifications:
• B230 Aluminum 1350-H19 Wire for Electrical Purposes.
• B232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
• B498 Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors.
• B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors.

Construction

•Aluminum 1350H19 wires, concentrically stranded about a steel core. Standard core wire for ACSR is class A galvanized.

• Class A core stranding is also available in zinc-5%

alloy coating.
• For aluminum-clad (AW) ACSR, please refer to the ACSR/AW catalog sheet
• Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
• ACSR conductor is also available in non-specular.

The Testing Machine

          High Voltage cable 330kv 4 Core ACSR AS 1

Our Company Show

High Voltage cable 330kv 4 Core ACSR AS 2

FAQ

Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.

Q:Have you ever supplied cables to our country ?

A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
