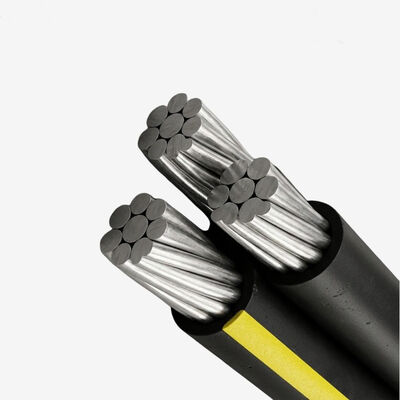

PVC / XLPE / PE Insulated Aluminium Conductor Cable Lower Power Losses

China PVC / XLPE / PE Insulated Aluminium Conductor Cable Lower Power Losses supplier
PVC / XLPE / PE Insulated Aluminium Conductor Cable Lower Power Losses supplier PVC / XLPE / PE Insulated Aluminium Conductor Cable Lower Power Losses supplier PVC / XLPE / PE Insulated Aluminium Conductor Cable Lower Power Losses supplier

Large Image :  PVC / XLPE / PE Insulated Aluminium Conductor Cable Lower Power Losses

Product Details:

Place of Origin: Luoyang, Henan, China
Brand Name: Sanwu
Certification: IS09001, IS014001,OHSAS18001,CCC
Model Number: ABC

Payment & Shipping Terms:

Minimum Order Quantity: 3 km
Price: Negotiate
Packaging Details: wooden drums
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 50km / week
Contact Now
Detailed Product Description
Conductor: Auminum Insulation: PVC,PE,XLPE
Application: Overhead Voltage: 0.6/1kv

 AAC/AAAC/ACSR/ACSS/ACCC Conductor Overhead bare conductors



1. IEC ASTM DIN BSstandard
2. ISO CCC certification
3. Response within 12 hours
4. Free sample
5. Factory direct sale

1. Specification:
(1) all aluminium conductor (AAC)

(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)

(6) rear earth aluminimum conductor steel reinforced(ACSR/RE)

(7) aluminimum conductor aluminimum alloy reinforced(ACAR)
2. Elative manufacturing standards: IEC83, IEC1089, 31, B232, BS215, DIN48204

1). Standard: IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182
2). Specification: ACSR is composed by bare concentric-lay-stranded galvanized steel wire(s) with aluminum wires surrounded by one or more layers of helically. Greased ACSR can also be supplied.
3). Application: ACSR is widely used in overhead electric power transmission and distribution lines with various voltage levels

All Aluminum Conductor(AAC)& Aluminum Conductor Steel Reinforced(ACSR))for ASTM (AAC, ACCR, AAAC, ACSR) Generally Confirming to IS 398 (Part-I, II, IV), IEC-228
(AAAC) Conductor as per ASTM-B-399-1992
(AAAC) Conductor as per BS-3242-1970
(AAAC) Conductor IS: 398-IV-1994
(ACSR) as per ASTM-B-233-1992
(AAC) as per BS-215-1-1970
(AAC) as per IS-398-1: 1976
(AAC) as per ASTM-B-231-1990
(ACSR) as per IS: 398-II: 1976 & IS: 398-V: 1992
(ACSR) BS-215-II-1970
(AACSR) as per IEC-1089-1191

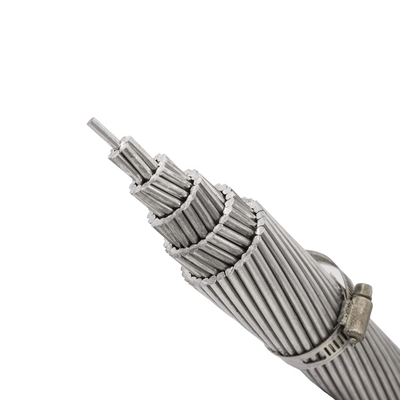

AAC(All aluminum conductor) are suited for overhead power line.
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.

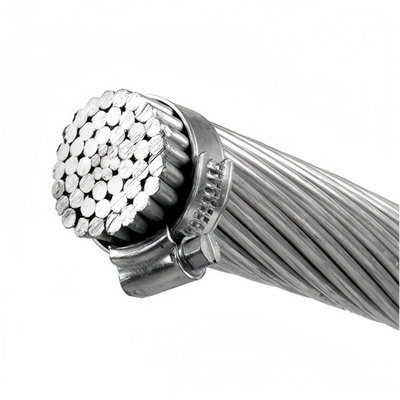

ACSR or ACSR cable or ACSR conductor used for Overhead electrical distribution and transmission lines for distributing power
Applications
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Construction
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
Specifications
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-clad Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AW)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
Notes
Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.
Current ratings are based on 75oC conductor temperature, 25oC ambient, 2ft/s wind, 96/watts/sq. Ft sun, 0.5 coefficients of emissivity and absorption.





          Luoyang Sanwu Cable CO.,Ltd was established in September 2016 ,with registered capital of 5 million RMB and more than 200 employees.Sanwu is a wire and cable manufacturing enterprise integrating with R&D, production and sales. The transportation of manufacturing base is convenient ,which is located in Yichuan Country Industrial Zone, adjacent to the Luoyang southwest highway,Zhengzhou-Shaolinsi-Luoyang high way .
           The company has obtained national product safety certification, 3C certification, 3 system certification, German TUV certification and international standard product mark certification, etc. Now Sanwu has three production workshops and more than 40 production lines. We mainly produce and manage electric round aluminum rods, overhead wires, power cables, wires and cables for electrical equipment, and special cables. Sanwu products are widely used in electric power, transportation, new energy, petroleum and petrochemical, national defense, and urban construction. In addition, Leading products overhead conductors are sold well and trusted by users all over the world .
          The company is committed to "all for customer satisfaction," giving full play to the advantages of talent, technology and equipment, emphasising on quality, price and service, and striving to establish national cable brand, to achieve the leap-forward development of enterprises.
