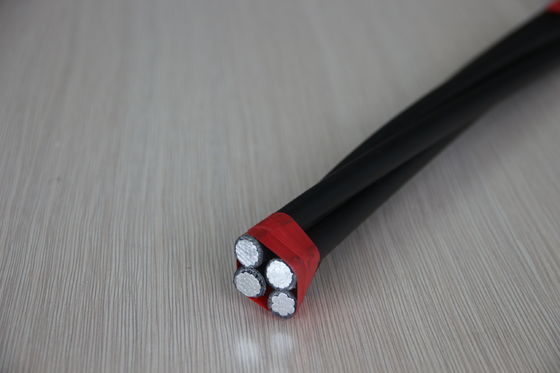

Aluminium Steel Reinforced ACSR 0.6/1kv Aerial Bundle Conductor

Aluminium Steel Reinforced ACSR 0.6/1kv Aerial Bundle Conductor

    • Aluminium Steel Reinforced ACSR 0.6/1kv Aerial Bundle Conductor
    • Aluminium Steel Reinforced ACSR 0.6/1kv Aerial Bundle Conductor
    • Aluminium Steel Reinforced ACSR 0.6/1kv Aerial Bundle Conductor
    • Aluminium Steel Reinforced ACSR 0.6/1kv Aerial Bundle Conductor
  • Aluminium Steel Reinforced ACSR 0.6/1kv Aerial Bundle Conductor

    Product Details:

    Place of Origin: Luoyang,China
    Brand Name: Luoyang Sanwu
    Certification: IS09001, IS014001,OHSAS18001. CCC
    Model Number: ABC

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000m
    Price: Negotiable
    Packaging Details: Export steel or wooden drum
    Delivery Time: 10-25days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5000KM PER MONTH
    Contact Now
    Detailed Product Description
    Material: Al +xlpe Application: Overhead Transmission Line
    Voltage: LV,MV Standard: IEC,ASTM,BS,DIN,NFC,CSA
    High Light:

    0.6/1kv Aerial Bundle Conductor

    ,

    ACSR Aerial Bundle Conductor

    ,

    0.6/1kv overhead aerial cable

    Insulated XLPE ABC Aluminum Overhead Aerial Bundle Power Conductor Electrical Cable 0.6/1kv



    Characteristics of Overhead Insulated Cable
    1)Rated voltage U0/U :0.6/1 KV
    2)Max. permissible long-time working temperature : PVC or PE insulated conductor is not more than 70 ,and that of XLPE insulation is not more than 90 .
    3)Installing temperature should not be below -20 .
    4)Admissible bending radius to cable :When overall-diameter (D) is less than 25 mm , it should be not less than 4D . When overall diamter(D) is 25mm or more , it should not be less than 6D .
    Our overhead insulated cable have formed a system, such as single core, two-core ,three core and four core. There are conductors of aluminium , aluminium alloy or aluminium steel-reinforced . We can manufacture the overhead insulated cable not only in accordance with China`s standard GB12527-90 but also the other standards and special requiement by the custormers. If you have any suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. Thanks for your support.
    (Service drop cable)
    1. Stranded aluminium conduct
    2. PE or XLPE insulation
    3. ACSR, AAAC Messenger wire

    Application
    It is preferred to use of service drop (ABC cables) instead of uninsulated conductors at low voltage networks. service drop (ABC cables)are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages.
    If you have any suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. Thanks for your support.

    Triplex AAAC cable

    Code Word AWG or Kcmil Neutral AAAC Phase AAC
    Minex 2*6 AWG+1*30.58 7/1.68 1/4.11
    Hippa 2*6 AWG+1*30.58 7/1.68 7/1.56
    Prawn 2*4 AWG+1*48.69 7/2.12 1/5.19
    Bamacle 2*4 AWG+1*48.69 7/2.12 7/1.96
    Shrimp 2*2 AWG+1*77.47 7/2.67 7/2.47
    Gammarus 2*1/0 AWG+1*123.3 7/3.37 7/3.12
    Leda 2*1/0 AWG+1*123.3 7/3.37 19/1.89



    Triplex ACSR cable

    Code Word AWG or Kcmil Neutral ACSR Phase AAC
    Paludina 2*6 AWG+1*6AWG 6+1 /1.68 1/4.11
    Voluta 2*6 AWG+1*6AWG 6+1 /1.68 7/1.56
    Whelk 2*4 AWG+1*4AWG 6+1 /2.12 1/5.19
    Periwinkle 2*4 AWG+1*4AWG 6+1 /2.12 7/1.96
    Conch 2*2 AWG+1*2AWG 6+1 /2.67 7/2.47
    Neritina 2*1/0 AWG+1*1/0 AWG 6+1 /3.37 7/3.12
    Cenia 2*1/0 AWG+1*1/0 AWG 6+1 /3.37 19/1.89



    Duplex Service Drop

    Code

    word

    AWG or kcmil Bare Neutral Messenger Phase conductor

    Weight

    Kg/km

    Allowcable

    Ampacities(A)

    ACSR

    Rated

    Strength

    Lbs.

    AAC

    Insul

    Thick.mm

    XLPE PE
    NO.

    Dia.

    mm

    NO.

    Dia.

    mm

    NO. Dia.mm

    Setter

    Shepherd

    Eskimo

    Terrier

    Chow

    Bull

    1*6AWG+1*6AWG

    1*6AWG+1*6AWG

    1*4AWG+1*4AWG

    1*4AWG+1*4AWG

    1*2AWG+1*2AWG

    1*1/0AWG+1*1/0AWG

    1

    1

    1

    1

    1

    1

    1.68

    1.68

    2.12

    2.12

    2.67

    3.37

    6

    6

    6

    6

    6

    6

    1.68

    1.68

    2.12

    2.12

    2.67

    3.37

    1190

    1190

    1860

    1860

    2850

    4380

    1

    7

    1

    7

    7

    19

    4.11

    1.56

    5.19

    1.96

    2.47

    1.89

    1.14

    1.14

    1.14

    1.14

    1.14

    1.52

    111

    113

    171

    173

    266

    427

    85

    85

    115

    115

    150

    205

    70

    70

    90

    90

    120

    160





    Aluminium Steel Reinforced ACSR 0.6/1kv Aerial Bundle Conductor 0
