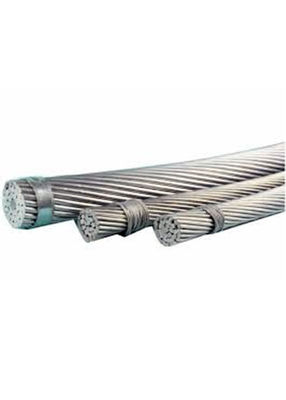

Low Voltage 10KV 6201-T81 All Aluminium Conductor

Low Voltage 10KV 6201-T81 All Aluminium Conductor

    • Low Voltage 10KV 6201-T81 All Aluminium Conductor
    • Low Voltage 10KV 6201-T81 All Aluminium Conductor
    • Low Voltage 10KV 6201-T81 All Aluminium Conductor
  • Low Voltage 10KV 6201-T81 All Aluminium Conductor

    Product Details:

    Place of Origin: China
    Brand Name: Sanwu
    Certification: ISO,CCC, TUV, CE
    Model Number: AAC-006

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: New wooden drum, Reel, Circle or according to customer's request
    Delivery Time: According to customer's request, usually 2-4 weeks.
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 700 Kilometer/Kilometers per Month conductor
    Contact Now
    Detailed Product Description
    Material: Aluminum Application: Overhead
    Voltage: Low & Medium Voltage Life Span: More Than 30 Years
    Certification: ISO,CCC, TUV, CE Factory: Yes
    High Light:

    6201-T81 All Aluminium Conductor

    ,

    6201-T81 aac bull conductor

    ,

    10KV All Aluminium Conductor

    AAC conductor All Aluminum Conductor low voltage Sanwu manufacturing

    Description:

    The bare conductor:AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electric power transmission and distribution lines with various grade voltage.

    Products AAC conductor All Aluminum Conductor low voltage Sanwu manufacturing
    Type All auminum conductor
    Material Aluminum
    Power Capacity 1~10KV
    Certification ISO9001 & ISO 14001, CCC
    Galvanization No
    Packing New wooden drum, Reel, Circle or according to customer's request
    payment term L/C, T/T, Western Union, MoneyGram



    Life Period

    More than 25 years, it is according to installing environment



    Certificates

    ISO,CCC, TUV, CE







    Construction



    All Aluminum-Alloy Conductors (AAAC) is a concentric-lay-stranded conductor consisting of aluminum-alloy wires available in both single layer and multi-layer constructions.

    Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay- stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. The DC resistance at 20°C of the 6201-T81 conductors and of the standard ACSRs of the same diameter are approximately the same. Conductors of the 6201-T81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.



    Low Voltage 10KV 6201-T81 All Aluminium Conductor 0



    Features

    • High strength to weight ratio
    • Better sag characteristics
    • Improved electrical properties
    • Excellent resistance to corrosion

    Application



    Aluminium Conductors are predominantly used in Overhead Line applications and for primary and secondary power distribution.

    All Aluminum-Alloy Conductors (AAAC) can be used in Medium, High and Extra-High voltage transmission lines. AAAC offers better sag performance due to the high strength-to-weight ratio provided by the aluminum-alloy. In addition, AAAC provides a higher corrosion resistance than ACSR conductors.

    Low Voltage 10KV 6201-T81 All Aluminium Conductor 1



    Specification



    (1) all aluminium conductor (AAC)
    (2) all aluminimum alloy conductor(AAAC)
    (3) aluminum conductor steel reinforced (ACSR)
    (4) anti-corrosion type ACSR
    (5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
    (6)rear earth aluminimum conductor steel reinforced(ACSR/RE)
    (7)aluminimum conductor aluminimum alloy reinforced(ACAR)

    Low Voltage 10KV 6201-T81 All Aluminium Conductor 2























































    Other related Products:



    Our main products, AAC CONDUCTOR, AAAC CONDCUTOR, ABC AERIAL BUNDLE CABLE, ACSR BARE CONDUCTOR ETC.

    Low Voltage 10KV 6201-T81 All Aluminium Conductor 3
