Home ProductsACAR Conductor

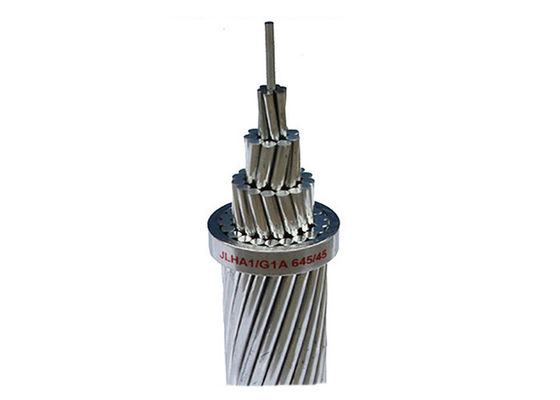

Distribution Lines 1350-H19 35000V Overhead Aluminum Wire

Distribution Lines 1350-H19 35000V Overhead Aluminum Wire

    • Distribution Lines 1350-H19 35000V Overhead Aluminum Wire
    • Distribution Lines 1350-H19 35000V Overhead Aluminum Wire
    • Distribution Lines 1350-H19 35000V Overhead Aluminum Wire
  • Distribution Lines 1350-H19 35000V Overhead Aluminum Wire

    Product Details:

    Place of Origin: Luoyang,Henan Province,China
    Brand Name: Sanwu
    Certification: IS09001; IS014001;OHSAS18001;CCC
    Model Number: ACAR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000M
    Price: USD 0.2-20 per meter
    Packaging Details: wooden drums
    Delivery Time: 5-15 work days
    Payment Terms: L/C, T/T
    Supply Ability: 50km / week
    Contact Now
    Detailed Product Description
    Conductor: Aluminum Color: Silver
    Insulation: Bare Rated Voltage: 0.6-1kv
    Application: Aerial Power Distribution Lines Service Life: 70 Years
    Warranty: 1 Year Core: Aluminum Alloy
    High Light:

    35000V Overhead Aluminum Wire

    ,

    35000V transmission line conductor

    ,

    1350-H19 Overhead Aluminum Wire

     Aluminium Conductor Alloy Reinforced Overhead Bare Wire Cable





    Product Name

    Aluminum Conductor Alloy Reinforced (ACAR)
    Conductor Aluminum/Copper
    Construction Aluminum Stranded & Aluminum Alloy Reinforce
    Colors Assorted upon request
    Voltage 600-1000V, 1KV-35KV
    Application Used as bare overhead conductor for power distribution lines
    Standards GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request

    1. Applications:

    ACAR is used as bare cable for overhead transmission and distribution lines and also as bus-bar in substations where is highly suitable considering the mechanical and electrical characteristics.

    As comparison with ACSR of same weight, ACAR can offers higher mechanical strength.

    2. Features :

    Aluminum Conductor Alloy Reinforced (ACAR)

    cable is an excellent conductor choice where current

    carrying capacity, higher strength and a lower conductor

    weight are critical to the line design.

    3. Construction:

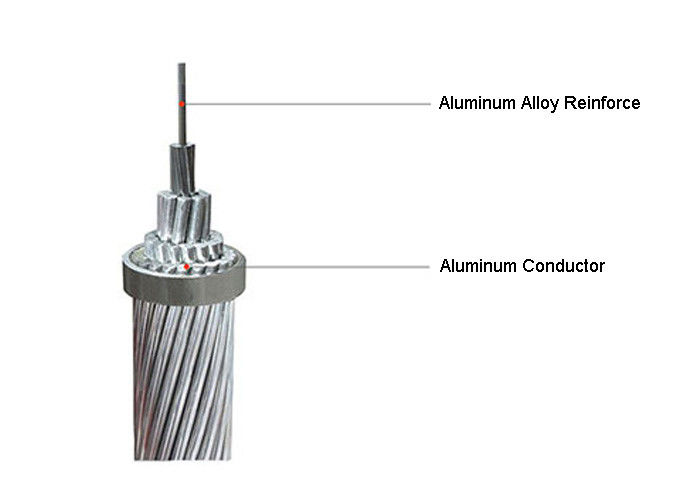

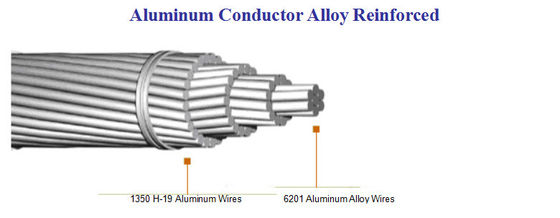

    Wires of Aluminium 1350-H19 is concentrically stranded on Aluminium Alloy 6201 core. The number of wires of each one depends on the cable design.

    In some cable constructions the wires of Aluminium Alloy 6201 can be distributed in layers throughout the Aluminium 1350-H19.

    4. Producing Process:

    Distribution Lines 1350-H19 35000V Overhead Aluminum Wire 0
