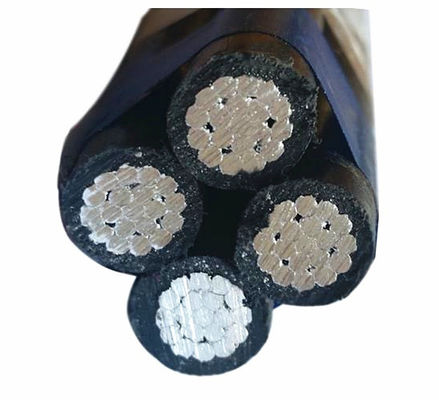

Overhead Transmission Quadruplex 600V ABC Power Cable

Overhead Transmission Quadruplex 600V ABC Power Cable

    • Overhead Transmission Quadruplex 600V ABC Power Cable
    • Overhead Transmission Quadruplex 600V ABC Power Cable
  • Overhead Transmission Quadruplex 600V ABC Power Cable

    Product Details:

    Place of Origin: Luoyang,China
    Brand Name: Sanwu
    Certification: IS09001, IS014001,OHSAS18001 CCC
    Model Number: ABC

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000meters
    Price: USD0.16-125 per meter
    Packaging Details: Standard export wooden drums or as your requirement
    Delivery Time: 2-12weeks
    Payment Terms: T/T, L/C, MoneyGram, Western Union
    Supply Ability: 3000km per month
    Contact Now
    Detailed Product Description
    Insulation Material: PE/XLPE/PVC Type: Low Voltage Overhead Cable
    Application: Overhead Transmission Conductor Material: AAC/AAAC/ACSR
    Packing: Standard Export Wooden Drums Production Capacity: 3000km Per Month
    High Light:

    600V ABC Power Cable

    ,

    Quadruplex ABC Power Cable

    ,

    600V aerial bunch conductor

    Aerial Bundle Cable XLPE insulation Duplex Service Drop

    We can produce XLPE(PE) insulated ABC cable (service drop) as per GB, IEC,ASTM Standard with high quality&competitive price.

    XLPE(PE) insulated ABC cable (service drop)

    1.Applications:

    Primarily used for overhead service applications such as street lighting. Outdoor lighting, and temporary service for construction. To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75°c for polyethylene insulated conductors or 90°c for crossliked polyethylene(XLPE) insulated conductors.

    2.construction:

    Concentric strand or compressed 1350-H19 conductor, poly- ethylene or cross linked polyethylene insulation,concentric strand AAC, ACSR or 6201 alloy neutral messenger.

    3.type of XLPE(PE) insulated abc cable (service drop)

    XLPE(PE) insulatedabc cable (service drop)covers mainly three types:

    Duplex Service Drop

    Triplex Service Drop

    Quadruplex Service Drop



    The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor , etc. And we can still produce the cables according to the request of customers.



    4.Detaild Introduction of XLPE(PE) insulated abc cable (service drop)

    3.1 Duplex Service Drop

    Applications

    To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.



    Construction

    Concentic strand or cmpressed 1350-H19 conductor , polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy nertral messenger.



    3.2 Triplex Service Drop

    Applications

    To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .



    Construction

    Concentic strand or cmpressed 1350-H19 conductor , polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy nertral messenger.



    3.3 Quadruplex Service Drop

    Applications

    Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.

    Cord word Phase conductor Bare neutral messenger Nominal lay length Weight per 1000ft (ibs) Allowable amp cities
    Size (AWG) Stranding Insul. Thick(Mils) Size (AWG) Stranding Pated strength(ibs) inches XLPE PE XLPE PE
    AAC Neutral-messenger
    Patella 6 7 45 6 7 563 14.88 103 103 85 70
    oyster 4 7 45 4 7 881 14.88 154 154 115 90
    clam 2 7 45 2 7 1350 20.58 233 233 150 120
    murex 1/0 7 60 1/0 7 1990 20.58 374 374 205 160
    purpura 1/0 9 60 1/0 7 1990 20.58 368 368 205 160
    nassa 2/0 7 60 2/0 7 2510 25.42 462 462 235 185
    melita 3/0 17 60 3/0 19 3310 29.97 562 562 275 215
    portunus 4/0 18 60 4/0 19 4020 29.97 696 696 315 245
    nannynose 336.4 19 80 336.4 19 6146 38.79 1118 1118 420 325

    Overhead Transmission Quadruplex 600V ABC Power Cable 0
