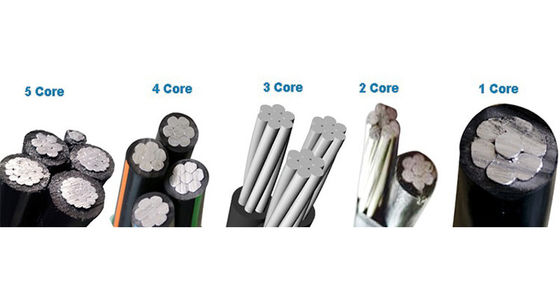

Compressed Aluminum B-230 B-231 Aerial Bundled Cable

Compressed Aluminum B-230 B-231 Aerial Bundled Cable

    • Compressed Aluminum B-230 B-231 Aerial Bundled Cable
    • Compressed Aluminum B-230 B-231 Aerial Bundled Cable
  • Compressed Aluminum B-230 B-231 Aerial Bundled Cable

    Product Details:

    Place of Origin: Luoyang,China
    Brand Name: Sanwu
    Certification: IS09001, IS014001,OHSAS18001
    Model Number: ABC

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000meters
    Price: Negotiable
    Packaging Details: Wooden drum, steel drum, steel-wooden drum
    Delivery Time: 2-8weeks
    Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability: 2000km per month
    Contact Now
    Detailed Product Description
    Application: Overhead And Distribution Construction: Aluminium Conductor Xlpe Insulation
    Production Ability: 50KM Per Day Delivery Port: Qingdao
    Payment Terms: T/T,L/C Validity: 7days
    High Light:

    B-231 Aerial Bundled Cable

    ,

    B-230 Aerial Bundled Cable

    ,

    B-231 Aerial Electrical Cable

    Low voltage xlpe insulated aluminium conductor aerial bundle cable:



    1.Applications of XLPE,PVC or PE insulated ABC Cable

    Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service

    forconstruction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not toexceed

    75°Cfor polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

    2.Specification ofXLPE,PVC or PE insulated ABC Cable

    service drop cable meets or exceeds the following ASTM specifications:

    B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

    B-231Aluminum Conductors, Concentric-Lay-Stranded.

    B-232Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

    B-399Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.

    B-901Compressed Round Stranded Aluminum Conductors Using Single Input Wire

    3.Construction ofXLPE,PVC or PE insulated ABC Cable

    Conductors are concentrically stranded, compressed 1350 H-19 aluminum. Insulated with either polyethylene or

    crosslinkedpolyethylene (XLP). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

    4.Teachnical Data of XLPE,PVC or PE insulated ABC Cable

    A.Duplex service drop cable:

    Code word: ABC cable Chihuahua, ABC cable Vizsla, ABC cable Harrier, ABC cable Whippet, ABC cable Schnauzer, ABC cable Heeler, ABC cable Pekingese, ABC cable Collie, ABC cable Dachshund, ABC cable Spaniel, ABC Cable Doberman, ABC cable Malemute, ABC cable Setter, ABC cable Shepherd, ABC cable Eskimo, ABC cable Terrier, AB cable Chow, ABC cable Bull

    B.Triplex service drop cable



    Code Name Phase Conductor Bare Neutral Messenger Weight Per 1000ft (lbs) Ampacity(amps)
    Size AWG Stranding Insulation Thickness(mls) Size AWG Stranding Breaking Strength(lbs) XLPE Poly XLPE Poly
    6201 ALLOY NEUTRAL-MESSENGER
    Minex 6 Solid 45 6 7 1,110 106.6 102.9 85 70
    Hippa 6 7 45 6 7 1,110 113.2 105.7 85 70
    Prawn 4 Solid 45 4 7 1,760 158.4 154.1 115 90
    Barnacles 4 7 45 4 7 1,760 168.3 158.2 115 90
    Shrimp 2 7 45 2 7 2,800 253.7 239.7 150 120
    Gammarus 1/0 7 60 1/0 7 4,460 411.7 386.0 205 160
    Leda 1/0 19 60 1/0 7 4,460 402.7 386.0 205 160
    Dungenese 2/0 7 60 2/0 7 5,390 506.8 476.3 235 185
    Cyclops 2/0 19 60 2/0 7 5,390 495.3 476.3 235 185
    Dlustra 3/0 19 60 3/0 7 6,790 611.4 589.1 275 215
    Lepas 4/0 19 60 4/0 7 8,560 757.1 730.5 315 245
    6201 ALLOY REDUCED NEUTRAL-MESSENGER
    Artemia 4 Solid 45 6 7 1,110 141.4 137.1 115 90
    Crab 4 7 45 6 7 1,110 151.3 141.2 115 90
    Solaster 2 7 45 4 7 1,760 226.6 212.6 150 120
    Sandcrab 1/0 7 60 2 7 2,800 368.8 343.1 205 160
    Echinus 1/0 19 60 2 7 2,800 358.8 343.1 205 160
    Crayfish 2/0 7 60 1 7 3,530 452.6 422.5 235 185
    Sipho 2/0 19 60 1 7 3,530 441.0 422.5 235 185
    Fulgar 3/0 19 60 1/0 7 4,460 543.4 521.1 275 215
    Arca 4/0 19 60 2/0 7 5,390 671.2 644.6

    We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards, etc.
    ISO9001:2008, OHSAS, CCC, TUV Certifications.
