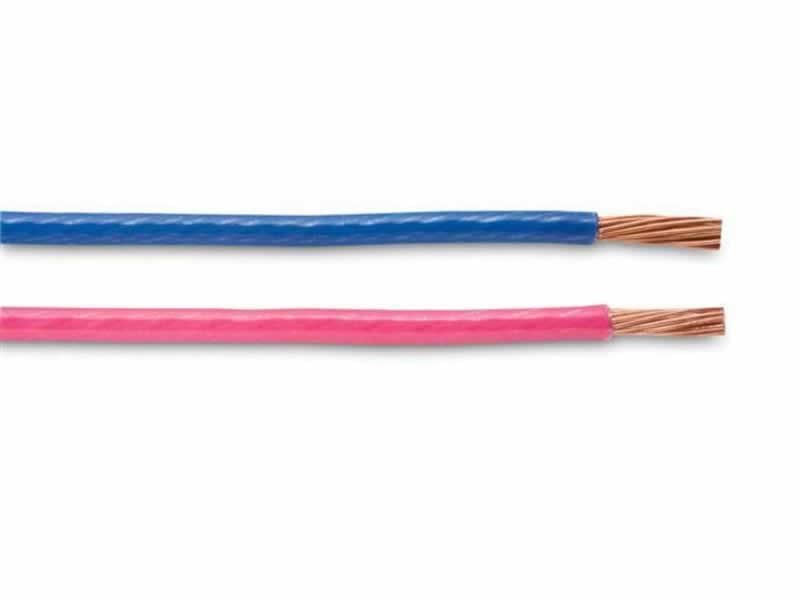

Copper Building 600 Volts THW2 lV ABC cable

Copper Building 600 Volts THW2 lV ABC cable

    • Copper Building 600 Volts THW2 lV ABC cable
    • Copper Building 600 Volts THW2 lV ABC cable
    • Copper Building 600 Volts THW2 lV ABC cable
  • Copper Building 600 Volts THW2 lV ABC cable

    Product Details:

    Place of Origin: Luoyang,China
    Brand Name: Sanwu
    Certification: IS09001, IS014001,OHSAS18001 CCC
    Model Number: THW-003

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000meters
    Price: USD0.16-125 per meter
    Packaging Details: 100m one roll with plastic bag or as clients' requirement
    Delivery Time: 2-12weeks
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 3000km per month
    Contact Now
    Detailed Product Description
    Conductor Material: Soft Or Hard Strand Copper Insulation Material: PVC
    Type: Low Voltage Power Cable Application: Primarily Used For Power Distribution
    Packing: 100m One Roll Market: All Around The World
    Production Capacity: 3000km Per Month
    High Light:

    THW2 LV ABC Cable

    ,

    600 Volts LV ABC Cable

    ,

    THW2 low voltage landscape cable

    Standard PVC Insulated Copper Building Wire Low Voltage Power Cable



    1 APPLICATION: General purpose wiring for lighting and power -residential,commercial, industrial buildings in accordance with the National Electrical Code, maximum conductor temperature of 75°C in wet or dry locations,for circuits not exceeding 600 volts

    When used as type TW, conductor is suitable for use in wet or dry locations at temperatures rated 60°C.
    When used as type THW, conductor is suitable for use in wet or dry locations at temperatures rated 75°C.
    When used as type THW2, conductor is suitable for use in wet or dry locations at temperatures rated 95°C.
    2 STANDARDS:
    1. Listed by UL as Type THW per Standard 83.
    2. All sizes carry the VW-1 flame test designation.
    3. Listed by UL as Oil Resistant I.
    4. Listed by UL as Sunlight Resistant (250 kcmil and larger, black only)
    5. 250 kcmil and larger pass UL and IEEE-383 ribbon burner flame test and are listed For CT Use.
    6. Conforms to Federal Specification J-C-30B.

    7 Cable Construction

    Conductor: Conductors shall be solid or Class B stranded annealed uncoated copper per UL Standard 83
    Insulation:flame-retardant, moisture- and heat-resistant thermoplastic
    insulation UL Standard 83.





     Coductor  Copper / Aluminum, based on client's requirements
    Construction  Bare copper wire
     Insulation jacket
     PVC sheath
    Colors

     Assorted upon request

    Voltage

     300/500V, 450/750V

    Application

      The cables are used for general purpose, as building wire for power, lighting and control wiring. They can be place into trucking and conduit.

    Specifications

     CCC ISO certificated

     Strict QC

     Prompt delivery

    OEM/ODM  Available

    Sample

     Free, freight charge prepaid or negotiation



    Type

    Rated

    Voltage

    Application Cores

    Nominal

    cross-sectional

    areas

    GB IEC HAR Code
    BV 60227 IEC 01 H07V-U/R 450/750V

    Single-core non-sheathed cable

    with rigid conductor

    for general purpose

    1 1.5-400
    BLV JB/T 8734 2.5-400
    RV 60227 IEC 02 H07V-K 450/750V

    Single-core non-sheathed cable

    with flexible conductor

    for general purpose

    1 1.5-240
    BV 60227 IEC 05 H05V-U 300/500V

    Single-core non-sheathed cable with solid /

    stranded conductor

    for internal wiring

    for a conductor

     temperature of 70 °C

    1 0.5-400
    JB/T 8734 H05V-R
    RV  60227 IEC 02 H05V-K 300/500V

     Single-core non-sheathed cable

    with flexible conductor

     for internal wiring for a

    conductor temperature of 70 °C

    1  0.5-240
      BVV   60227 IEC 10  / 300/500V

     Light Polyvinyl chloride

    sheathed Round cable

    2-5 1.5-35
    BLVV 1 0.75-185

      BVVB JB/T 8734  / 300/500V

    Light Polyvinyl chloride

    sheathed Flat cable

    2,3 0.75-6
    RVV 60227 IEC 52  H03VV-F  300/300V

    Light Polyvinyl chloride

    sheathed cord

    2-16(Round)  0.5-6
    H03VVH2-F 2(Flat)
         RVV  60227 IEC 53 H05VV-F 300/500V

    Ordinary Polyvinyl

    chloride sheathed cord

     2-16(Round) 0.5-6
    H05VVH2-F 2 (Flat)
    JB/T 8734      /  300/500V

    Ordinary Polyvinyl

    chloride sheathed cord

    2 (Flat) 1.0-4
    Multi cores  /
    RVVP JB/T 8734 / 300/300V

    Polyvinyl chloride insulated

    and sheathed cord with screen

    2~4 0.5-6

     Copper Building 600 Volts THW2 lV ABC cable 0
