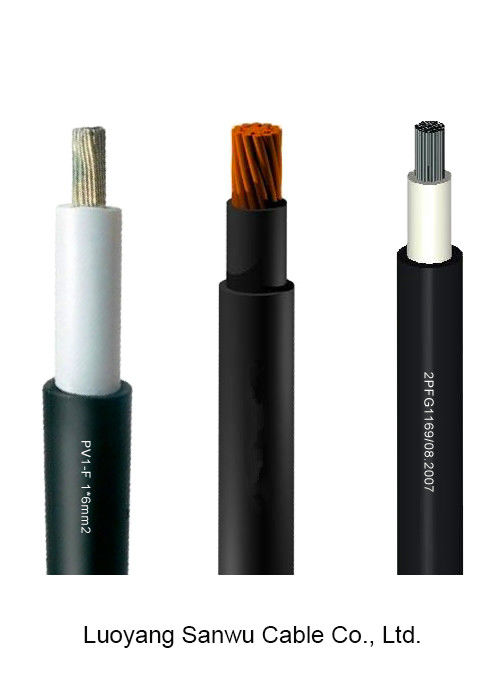

Two Cores 2PfG 1169 PV1-F 2*1.5mm2 Aluminum PV Wire

Two Cores 2PfG 1169 PV1-F 2*1.5mm2 Aluminum PV Wire

    • Two Cores 2PfG 1169 PV1-F 2*1.5mm2 Aluminum PV Wire
    • Two Cores 2PfG 1169 PV1-F 2*1.5mm2 Aluminum PV Wire
    • Two Cores 2PfG 1169 PV1-F 2*1.5mm2 Aluminum PV Wire
  • Two Cores 2PfG 1169 PV1-F 2*1.5mm2 Aluminum PV Wire

    Product Details:

    Place of Origin: China
    Brand Name: SanWu
    Certification: IS09001, IS014001,OHSAS18001,CCC
    Model Number: SC-001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 meters
    Price: USD 0.11--2.55/ Meter
    Packaging Details: Roll,Coil,sandard wooden drums(250m/roll)
    Delivery Time: 5-25 days after receive the deposite payment.
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 10000 meters per day.
    Contact Now
    Detailed Product Description
    Insulation: XLPO Conductor Material: Aluminum Or Copper
    Voltage: High Voltage Jacket: XLPO
    Working Life: 30 Years Application: Solar Energy System
    High Light:

    2*1.5mm2 Aluminum PV Wire

    ,

    PV1-F Aluminum PV Wire

    ,

    tuv 2pfg 1169

              Wholesale Type 2PfG 1169 PV1-F 2*1.5mm2 Two Cores XLPO Insulation solar cable


    Advantages of Solar Cables:
    1.Dual wall insulation.Electron beam cross-linked
    2.Excellent resistance to U.V,oil,greases,oxygen and ozone.
    3.Excellent resistance to abrasion.
    4.Halogen free, flame retardant,low toxicity.
    5.Excellent flexibility and stripping performance.
    6.High current carring capacity.
    7.TUV approved.

    Type:

    TYPE Cross section Wire struct Conductor diameter Outer diameter Conductor resistance Rated voltage Rated current
    mm2 No.OD (mm) mm mm Ω/Km V AC/DC A
    1X2.5mm2 2.5 48XΦ0.25 2.0 5.2 8.06 1000/1800 30
    1X4.0mm2 4.0 56XΦ0.30 2.6 6.2 4.97 1000/1800 50
    1X6.0mm2 6.0 81XΦ0.30 3.3 7.2 3.52 1000/1800 70
    1X10mm2 10 74XΦ0.40 4.4 8.3 2.12 1000/1800 95
    2X2.5mm2 2.5 48XΦ0.25 2.0 6.2*9.90 8.06 1000/1800 30
    2X4.0mm2 4.0 56XΦ0.30 2.6 6.9*11.30 4.97 1000/1800 50
    2X6.0mm2 6.0 81XΦ0.30 3.3 7.1*14.50 3.52 1000/1800

    70



    Two Cores 2PfG 1169 PV1-F 2*1.5mm2 Aluminum PV Wire 0

    Technical Data:

    Certificate of PV cable and wire  TUV
    Original Peoduction Place Henan, China
    Insulation material of PV cable and wire XLPE
    Voltage Rate of PV cable and wire 1000/1800V
    Cores of PV cable and wire  1-2 cores
    Range of Nominal cross section: 1.5--10mm2
    Standard of PV cable and wire  TUV 2PfG 1169/IEC
    Temperature range of PV cable and wire  -40~+90°C
    Flame test standard of PV cable and wire  DIN EN50265-2-1 UL 1571(VW-1).
    Smallest permissible bending radius 5XD
    Color of PV cable and wire  Black/red
    Packing of PV cable and wire 100 meter/roll for small size, wooden drum for big size, or as per requirement
    MOQ of PV cable and wire  1000M
    Delivery time of PV cable and wire  within 25 days
    Application of PV cable and wire  These cables are used for solar power plant,solar energy power station.



    Two Cores 2PfG 1169 PV1-F 2*1.5mm2 Aluminum PV Wire 1































































    DHL/FedEx/UPS carton package:

    Types Roll N.W Carton measure Package G.W.
    2.5mm2 250m/roll 12.5kg 360*360*300mm 2 rolls/carton 26kg
    4.0mm2 250m/roll 17kg 360*360*300mm 2 rolls/carton 34kg
    6.0mm2 100m/roll 9.8kg 300*300*320mm 2 rolls/carton

    20kg



    Who we are:

    We are a factory which have 10 years experience in manufacturing and exporting solar component for solar panel,located in Henan, China.

    Two Cores 2PfG 1169 PV1-F 2*1.5mm2 Aluminum PV Wire 2

    Two Cores 2PfG 1169 PV1-F 2*1.5mm2 Aluminum PV Wire 3



    FAQ:

    Q: Are you trading company or manufacturer ?
    A: We have our own factory and trading company, our factory have more than 10 years production experience.
    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
    Q: Do you provide samples ? is it free or extra ?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
    Q: What is your terms of payment ?
    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.

    Q:Have you ever supplied cables to our country ?

    A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
