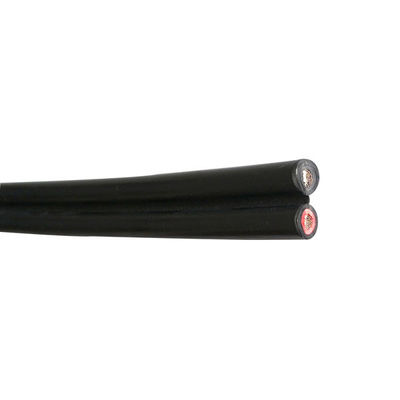

Tinned Copper 900/1800V H1Z2Z2-K Solar PV Cables

APPLICATION

Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems, but not direct burial applications. Our solar cable is ozone-resistant according to BS EN 50396, UV resistant according to HD 605/ A1, and is tested for durability according to EN 60216. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.

CONSTRUCTION

Conductor Class 5 flexible tinned copper conductor Insulation Halogen-free cross-linked compound Sheath Halogen-free cross-linked, flame retardant compound

CHARACTERISTICS Voltage Rating (Uo/U) AC: 600/1000V DC: 900/1800V Temperature Rating Fixed: -40°C to +90°C Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 5 x overall diameter Maximum Voltage (Umax) 1.8kV DC (conductor/conductor, non earthed system, circuit not under load) Maximum Conductor Temperature +120°C (for 20000h)

cable Features:

1. Dual wall insulation, electron beam cross-linked;
2. Excellent resistance to UV, water, ozone, fluids,salt, general weathering;
3. Excellent resistance to abrasion;
4. Halogen free, flame retardant, low toxicity;
5. Excellent flexibility and stripping performance;
6. High current carrying capacity;

 1)Description

Photovoltaic Power Cable ,TUV Single core Solar PV Cable

Application

Double insulation ,electron-bean cross linked cables for photovoltaic power station

Construction

Construction :Tinned copper, according to the VDE 0295/IEC 60228,Class 5

Insulation :Polyolefin copolymer electron-bean cross-linked

Outer sheath:Polyolefin copolymer electron-beam cross-linked

Sheath color :Black And Red

2)Parameter

Technique Specification

Nominal Voltage :Uo/U=600/1000VAC 1000/1800VDC

Test Voltage: 6500V,50Hz 5Min

Temperature Rating 45℃ up to +125℃ -40F up to +257F

Ambient Temperature 25years

-40℃ up to 90℃

-40F up to +194F

Max short Circuit temperature 280℃,+536F

Bending Radius

Fixed installation >4X

Occasionally moved >5X

Material Properties/Standards

Fire performance :IEC 60332-1

Smoke emission:IEC 61034 EN 50268

Low fire load:Din 51900
