LUOYANG SANWU CABLE GROUP CO.,LTD.
Professional Cable and Conductor Manufacturer
 |
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | ACAR |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | USD 0.2-20 per meter |
| Packaging Details: | wooden drums |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per day |
| Conductor: | ACAR Overhead Conductors | Core: | Aluminum Alloy |
|---|---|---|---|
| Insulation: | Bare | Rated Voltage: | 0.6-1kv;1-35KV |
| Service Life: | 70 Years | Warranty: | 1 Year |
| High Light: | ASTM Standard Overhead Conductors,ACAR Overhead Conductors,ASTM Aluminum Conductor Alloy Reinforced |
||

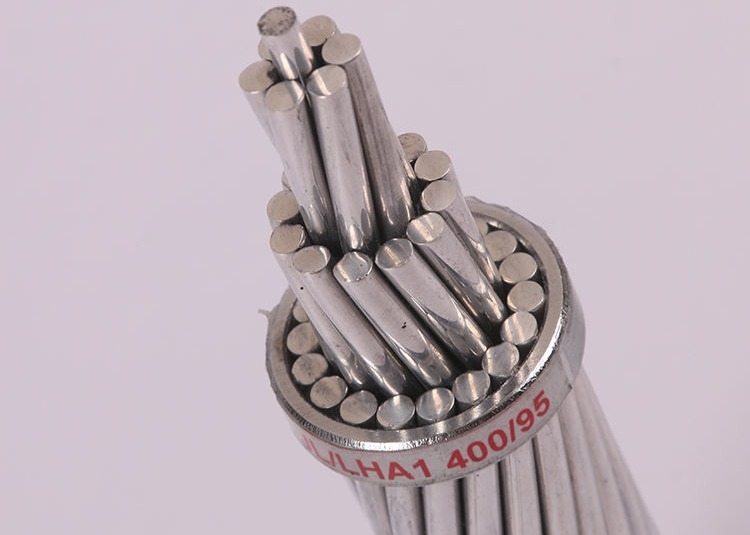

BS ASTM Standard ACAR Overhead Conductors Aluminum Conductor Alloy Reinforced
1. Applications:
ACAR is used as bare cable for overhead transmission and distribution lines and also as bus-bar in substations where is highly suitable considering the mechanical and electrical characteristics.
As comparison with ACSR of same weight, ACAR can offers higher mechanical strength.
2. Features :
Aluminum Conductor Alloy Reinforced (ACAR)
cable is an excellent conductor choice where current
carrying capacity, higher strength and a lower conductor
weight are critical to the line design.
3. Construction:
Wires of Aluminium 1350-H19 is concentrically stranded on Aluminium Alloy 6201 core. The number of wires of each one depends on the cable design.
In some cable constructions the wires of Aluminium Alloy 6201 can be distributed in layers throughout the Aluminium 1350-H19.
4. Part of ACAR(6201) conductors of ASTM sizes.
| Size Kcmil | Stranding No.& Dia.(In.) | Cross Sectional Area(Square In.) | Nominal Conductor Dia. (In.) |
Nominal weight (Lbs/1000FT) |
Rated Strength ( Lbs) |
|||
| 1350 | 6201 | 1350 | 6201 | Total | ||||
| 503.6 | 15*0.1628 | 4*0.1628 | 0.3122 | 0.0833 | 0.3955 | 0.814 | 473 | 10500 |
| 587.2 | 15*0.1758 | 4*0.1758 | 0.3644 | 0.0971 | 0.4612 | 0.879 | 551 | 12200 |
| 649.5 | 18*0.1325 | 19*0.1325 | 0.2482 | 0.2620 | 0.5102 | 0.927 | 608 | 16600 |
| 653.1 | 12*0.1854 | 7*0.1854 | 0.3240 | 0.1890 | 0.5130 | 0.927 | 612 | 15400 |
| 739.8 | 18*0.1414 | 19*0.1414 | 0.2827 | 0.2983 | 0.5810 | 0.990 | 693 | 18800 |
| 853.7 | 30*0.1519 | 7*0.1519 | 0.5437 | 0.1268 | 0.6705 | 1.063 | 801 | 17500 |
| 853.7 | 24*0.1519 | 13*0.1519 | 0.4349 | 0.2356 | 0.6705 | 1.063 | 800 | 19300 |
| 927.2 | 24*0.1583 | 13*0.1583 | 0.4723 | 0.2559 | 0.7282 | 1.108 | 869 | 20900 |
5.Packaging and Delivery:
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
