LUOYANG SANWU CABLE GROUP CO.,LTD.
Professional Cable and Conductor Manufacturer
 |
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | ACAR |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | USD 0.2-20 per meter |
| Packaging Details: | wooden drums |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per day |
| Name: | Anti Corrosion ACAR Conductor | Core: | Aluminum Alloy |
|---|---|---|---|
| Color: | Silver | Insulation: | Bare |
| Rated Voltage: | 0.6-1kv;1-35KV | Service Life: | 70 Years |
| Insulation Material: | Bare | Jacket: | Bare |
| Standard: | ASTM,IEC,IEC60502,BS,DIN | ||
| High Light: | Anti Corrosion ACAR Conductor,Aerial Bundled Cable ACAR Conductor,Anti Corrosion aluminium conductor alloy reinforced |
||

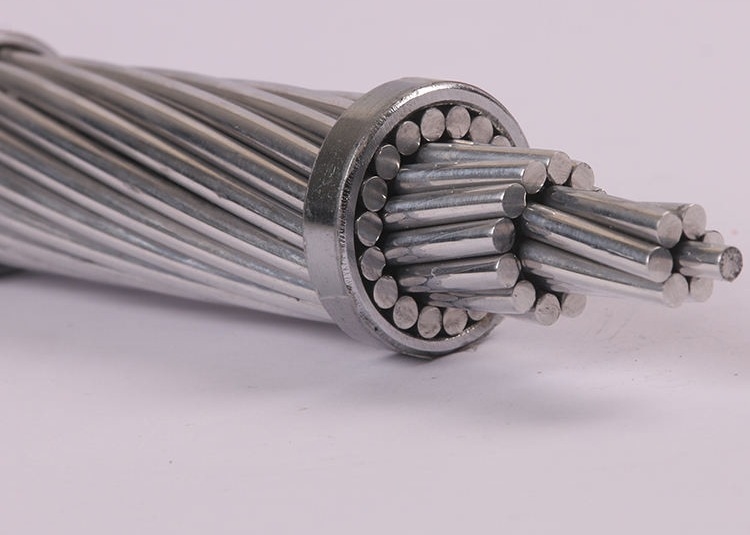

Anti Corrosion ACAR Conductor For Aerial Bundled Cable
Anti Corrosion ACAR Conductor is used in overhead electrical power transmission and distribution lines with various grade voltage.
| Product Name | Aluminum Conductor Alloy Reinforced (ACAR) |
| Conductor | Aluminum/Copper |
| Construction | Aluminum Stranded & Aluminum Alloy Reinforce |
| Colors | Assorted upon request |
| Voltage | 600-1000V, 1KV-35KV |
| Application | Used as bare overhead conductor for power distribution lines |
| Standards | GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request |
1.Standard
ASTM B524 ,B 230, B 398, IEC61089, etc Application
2.Construction
ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer
3.Features
1. ACAR offers excellent balance mechanical and electrical properties.
2.It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.
3.It is a compromise choice between AAC,ACSR,and AAAC.
4.It has 1350 designates grade of pure aluminium.
5. It has 6201 designates aluminium alloy grade.
4.Part of ACAR(6201) conductors of ASTM sizes.
| Size Kcmil | Stranding No.& Dia.(In.) | Cross Sectional Area(Square In.) | Nominal Conductor Dia. (In.) |
Nominal weight (Lbs/1000FT) |
Rated Strength ( Lbs) |
|||
| 1350 | 6201 | 1350 | 6201 | Total | ||||
| 503.6 | 15*0.1628 | 4*0.1628 | 0.3122 | 0.0833 | 0.3955 | 0.814 | 473 | 10500 |
| 587.2 | 15*0.1758 | 4*0.1758 | 0.3644 | 0.0971 | 0.4612 | 0.879 | 551 | 12200 |
| 649.5 | 18*0.1325 | 19*0.1325 | 0.2482 | 0.2620 | 0.5102 | 0.927 | 608 | 16600 |
| 653.1 | 12*0.1854 | 7*0.1854 | 0.3240 | 0.1890 | 0.5130 | 0.927 | 612 | 15400 |
| 739.8 | 18*0.1414 | 19*0.1414 | 0.2827 | 0.2983 | 0.5810 | 0.990 | 693 | 18800 |
| 853.7 | 30*0.1519 | 7*0.1519 | 0.5437 | 0.1268 | 0.6705 | 1.063 | 801 | 17500 |
| 853.7 | 24*0.1519 | 13*0.1519 | 0.4349 | 0.2356 | 0.6705 | 1.063 | 800 | 19300 |
| 927.2 | 24*0.1583 | 13*0.1583 | 0.4723 | 0.2559 | 0.7282 | 1.108 | 869 | 20900 |
5.Packaging and Delivery:
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
