LUOYANG SANWU CABLE GROUP CO.,LTD.
Professional Cable and Conductor Manufacturer
 |
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | ABC |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export steel or wooden drum |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 tons per day |
| Name: | 3+1 Aerial Bundled Cable | Material: | Al +xlpe/pe/pvc |
|---|---|---|---|
| Usage: | Overhead Transmission Line | Voltage: | LV,MV |
| Standard: | IEC,ASTM,BS,DIN,NFC Standard | Size: | 4x25mm2 |
| High Light: | 3+1 aerial bundle conductor cable,self supporting aerial bundle conductor cable,overhead transmission line abc cable |
||

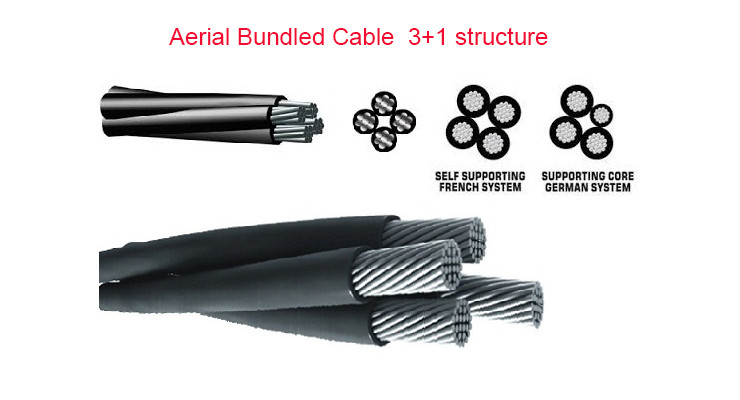

3+1 Aerial Bundled Cable Self Supporting Overhead Transmission Line
Product Description
Aerial Bundled Cable is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system.
It provides a higher level of safety and reliability, lower power
losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.
Standards:
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA
| Cores | Nominal cross-sectional area | Phase Conductors insulation |
Dia. Of cable | R. of conductors at 20℃ | Break strength of conductor | ||
| /km | KN | ||||||
| 3C+1C | mm2 | Thickness (mm) | mm | Phase cores | Neutral cores | Phase cores | Neutral cores |
| 3C+1C | 3x25+54.6 | 1.4 | 23.57 | 1.2 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3x35+54.6 | 1.6 | 26.08 | 0.868 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3x50+54.6 | 1.6 | 28.15 | 0.641 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3x70+54.6 | 1.8 | 32.15 | 0.443 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3x70+54.6 | 1.8 | 32.15 | 0.443 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3x70+70 | 1.8 | 32.75 | 0.443 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3x95+70 | 1.8 | 35.78 | 0.32 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3x120+70 | 1.8 | 37.93 | 0.253 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3x120+70 | 1.8 | 37.93 | 0.253 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3x120+95 | 1.8 | 39.26 | 0.253 | 0.343 | 27.5 | 27.5 |
| 3C+1C | 3x150+95 | 1.9 | 41.81 | 0.206 | 0.343 | 27.5 |
27.5
|
