LUOYANG SANWU CABLE GROUP CO.,LTD.
Professional Cable and Conductor Manufacturer
 |
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | acsr-001 |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New Wooden drum, reel, circle, or according to customers request |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 tons per day |
| Name: | Aluminium Conductor Steel Reinforced | Voltage: | Low Voltage |
|---|---|---|---|
| Application: | Overhead | Dimensions: | 0.5--1000mm2 |
| Type: | MV / LV | Life Span: | 30 Years |
| High Light: | 0.5mm2 aluminium conductor steel reinforced,low voltage aluminium conductor steel reinforced,low voltage aluminum conductor steel reinforced |
||
336.4 Mcm Aluminium Conductor Steel Reinforced ACSR Low Voltage
Aluminium Conductor Steel Reinforced Standard
IEC61089, BS 215, ASTM B232, CSA C49, DIN48204, JIS C3110
| Code | Size (AWG/MCM) | Number of Strands(mm) | Weight(kg/km) | Rated Strength(kg) |
| Rose | 4 | 7*1.96 | 58.3 | 399 |
| Iris | 2 | 7*2.47 | 92.7 | 611 |
| Pansy | 1 | 7*2.78 | 117 | 740 |
| Poppy | 1/0 | 7*3.12 | 147.5 | 897 |
| Aster | 2/0 | 7*3.5 | 186 | 1375 |
Aluminium Conductor Steel Reinforced Application
ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. Thanks for your support.
Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
Packing: New Wooden drum, reel, circle, or according to customers request.
Technical characteristics

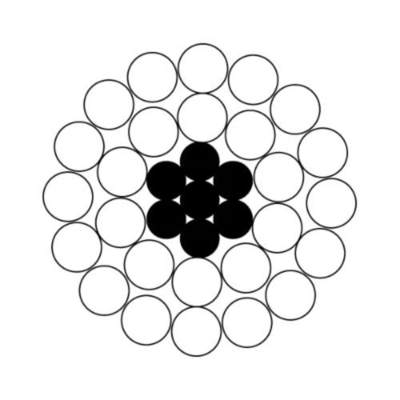

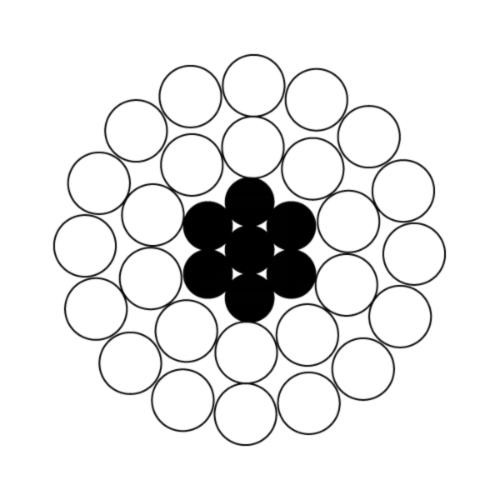

Conductor picture
