LUOYANG SANWU CABLE GROUP CO.,LTD.
Professional Cable and Conductor Manufacturer
 |
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | ABC |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | USD 0.2-20 per meter |
| Packaging Details: | wooden drums |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per day |
| Name: | Aluminum Covered Line Wire | Insulation: | XLPE |
|---|---|---|---|
| Rated Voltage: | 0.6-1kv | Application: | Power Distribution Lines |
| Service Life: | 70 Years | Warranty: | 2 Year |
| Size: | 1*16mm2 1*25mm2 | Sheath: | PVC Sheath |
| Package: | Wooden Drum | ||
| High Light: | pvc sheath overhead insulated cable,aluminum covered overhead insulated cable,pvc sheath overhead insulated wire |
||

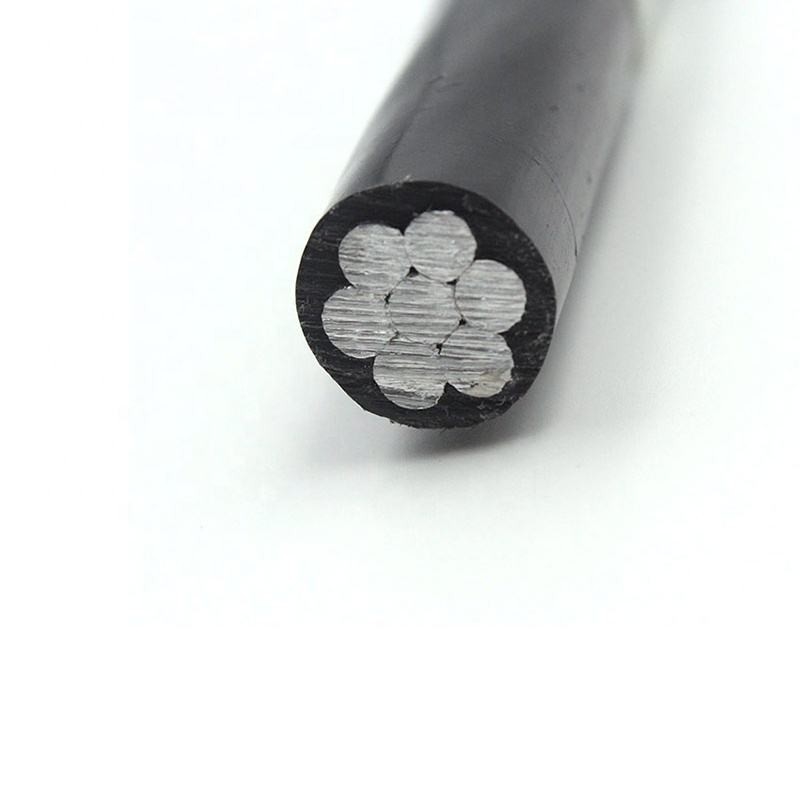

PVC Sheath Overhead Insulated Cable Aluminum Covered Line Wire
Secondary distribution lines that are located overhead are intended to utilize Aluminum Covered Line Wire. When installed, covered line wire is handled like a naked conductor because it is not electrically insulated. The insulation shields the circuit from weather-related disruptions.
Standards :
ASTM B232 IEC BS DIN NFC 33-209 ISO9001-2008
Rated voltage
0.6/1kV 10kV 25kV 35kV
Nominal Cross-sectional Areas(sqmm)
10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2
Standard
NFC 33209 IEC ASTM
|
SPEC
mm2 |
Conductor structure |
Insulation
Material |
Insulation thickness (mm) |
Approx overall Diameter(mm) |
Approx weight
(kg/km) |
||
|
Phase (compacted A)
Phase (compacted Al) |
Neutral (alloy) | ||||||
| No./mm | No./mm | ||||||
| 1*16+1*16 | 7/1.72 | 7/1.72 |
XLPE Or |
1.2 | 12.5 | 110.1 | |
| 1*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | ||
| 1*35+1*35 | 7/2.54 | 7/2.54 |
PVC or PE |
1.4 | 17.5 | 229.0 | |
| 1*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300.0 | ||
| 1*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | ||
| 1*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | ||
| 2*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | ||
| 2*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | ||
| 2*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | ||
| 2*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | ||
| 2*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | ||
| 2*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | ||
| 3*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | ||
| 3*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | ||
| 3*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | ||
| 3*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 25.7 | 644.1 | ||
| 3*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | ||
| 3*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | ||
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.L/C is also available.
Contact Person: Alex Yang
Tel: 86-13233918312
