|Place of Origin:||Henan|
|Minimum Order Quantity:||1000M|
|Packaging Details:||New wooden drum, Reel, Circle or according to customer's request|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||200 tons per day|
|Conductor Material:||Aluminum||Voltage:||High Voltage|
|Supplier By Area:||Asia,South America,South Africa||MOQ:||10KM|
|Sample:||Free||Cross Section Area::||10-800mm2|
|Type Of Conductor::||Stranded|

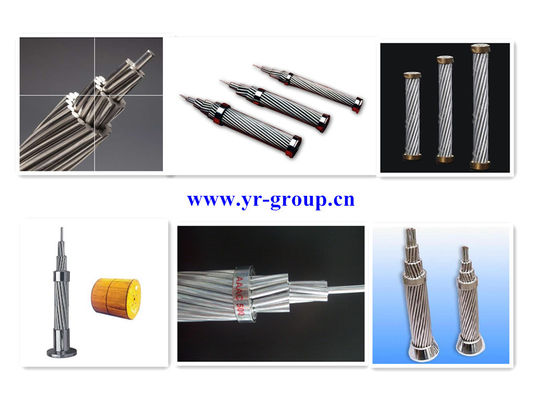

Grid Distribution System AAAC Conductor,
ASTM All Aluminum Alloy Conductor,
800mm2 AAAC Conductor
National Grid Distribution System AAAC Conductor All Aluminum Alloy Conductor Aluminum Cable

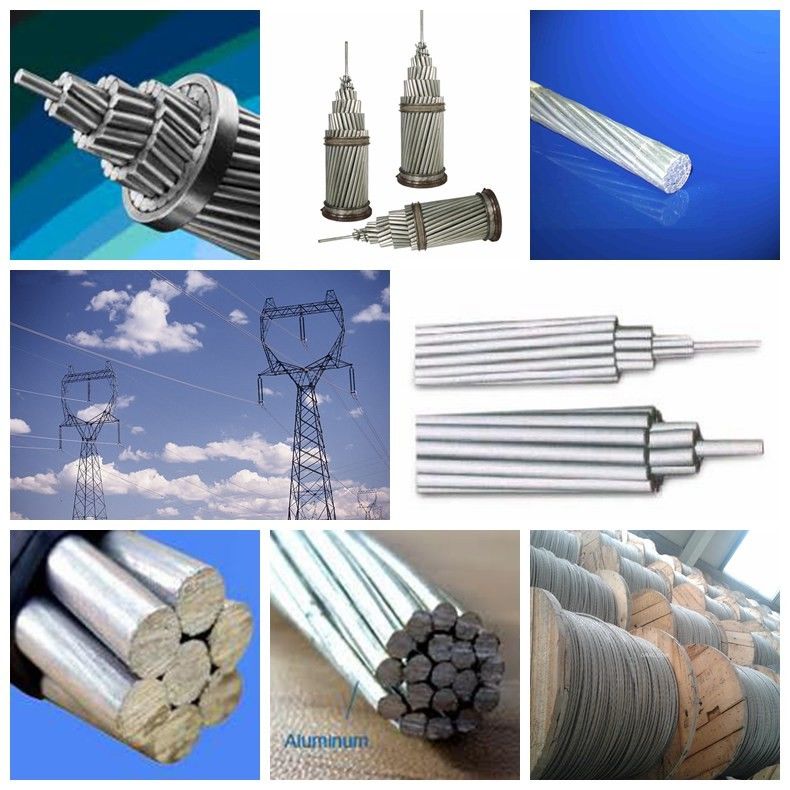

AAC All Aluminum Conductor
AAC–ASTM-B All Aluminium Conductor
AAC are a refined Aluminium stranded conductor with a minimum metal purity of 99.7%. It is principally used in urban areas where spacing is short and the supports are close. It can be used in coastal regions owing to its high degree of corrosion resistance and is also used extensively within the Railway and Metro industries.
Conductor (AAC and ACSR) have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost, large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
2. Service Performance
(1).The permissible long-time operating temperature for aerial conductor is 70oC.
(2).Under the circumstance that rare climate occurs and high ice coverage rate, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3).When connecting conductors, the conductor beside the connecting tube can’t be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are installed, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4).Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.
|Stranding &wire diameter||Approx Overall diameter||Breaking Load||DC Resistance at 20||
