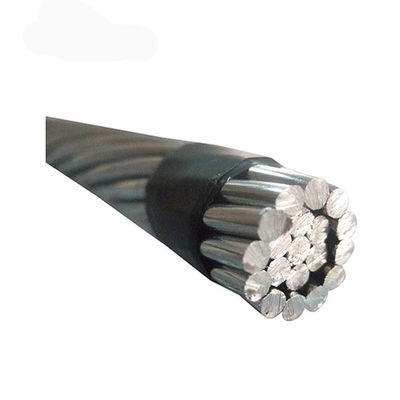

Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable

Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable

  • Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable
  • Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable
  • Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable
  • Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable
Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: AAAC-1
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: $0.45-$5.55
Packaging Details: Wooden drum
Delivery Time: 1-15days
Payment Terms: L/C, D/A, , D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Material: Aluminum Alloy Voltage Type: High Voltage
Application: Overhead Standard: ASTM,BS,DIN,AS/NZS,IEC, CSA
Port: Qingdao Packing: Wooden Drum
Supplier By Area: Asia,South America,South Africa MOQ: 10km
Sample: Free Cross Section Area:: 10-800mm2
Type Of Conductor:: Stranded
Highlight:

800mm2 AAAC Cable

,

800mm2 aaac panther conductor

,

Overhead AAAC Cable

Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable



Aaac alloy overhead Conductor have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.



35 34.36 7 2.50 7.50 94.0 6.01 0.8333
50 49.48 7 3.00 9.00 135.3 8.41 0.5787
70 71.25 7 3.60 10.8 194.9 11.40 0.4019
95 95.14 7 4.16 12.5 260.2 15.22 0.3010
120 121.21 19 2.85 14.3 333.2 20.61 0.2374
150 148.07 19 3.15 15.8 407.0 24.43 0.1943
185 182.80 19 3.50 17.5 502.4 30.16 0.1574
210 209.85 19 3.75 18.8 576.8 33.58 0.1371
240 238.76 19 4.00 20.0 656.3 38.20 0.1205
300 297.57 37 3.20 22.4 819.3 49.10 0.0969
500 502.90 37 4.16 29.1 1385.5 80.46 0.0573


Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable 0

Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable 1



AAAC 6201-T81



AAAC 6201-T81 Applications

The bare aluminum alloy conductors type AAAC (All Aluminum Alloy Conductor) 6201-T81 stranded classes AA and A are used for transmission and distribution lines of electric power, when for reasons of design of the line, a high tensile stress is needed (even bigger that the obtained with 5005-H19) and a high ratio mechanical stress-weight for the optimization of the sags in long spans. These conductors are especially useful for installation in coastal areas or of high environmental corrosion, where the ACSR cannot be used.

AAAC 6201-T81 Specifications

The bare aluminum alloy conductors AAAC 6201-T81 manufactured by ELECTROCABLES C.A., meets the following specifications and standards:

  • ASTM B-398: Aluminum Alloy Wires 6201-T81 for electric purposes.
  • ASTM B-399: Aluminum Alloy Stranded conductors 6201-T81in concentric layers.

AAAC 6201-T81 Construction

The bare aluminum alloy conductors type AAAC 6201-T81 are concentrically stranded, and they are built with wires of this alloy. Their packaging is in reels in lengths according to the client's necessities.

AAAC 6201-T81 Detail of the Cable



Aluminum Conductor 6201 - T81

Aluminum Alloy Conductors A.A.A.C 6201-T81

CONDUCTOR MANUFACTURED UNDER STANDARDS:ASTM B-398 • ASTM B-399 • INEN

PACKAGING:For all sizes
Z - Length as per customer's requirements.
AMPACITY IN AMPERES:
Calculated for a conductor temperature of 75 ºC, ambient temperature 25 ºC, emissivity of 0.5, wind of 0.61 m/sec. and with sun effect (1033 watts/m2).




Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable 2

Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable 3

Overhead Transmission Line 800mm2 AAAC All Aluminum Alloy Conductor Cable 4




Service Performance
(1). The permissible long-time operating temperature for aerial conductor is 70 degree.

(2). Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.

(4). Under installaion, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.
