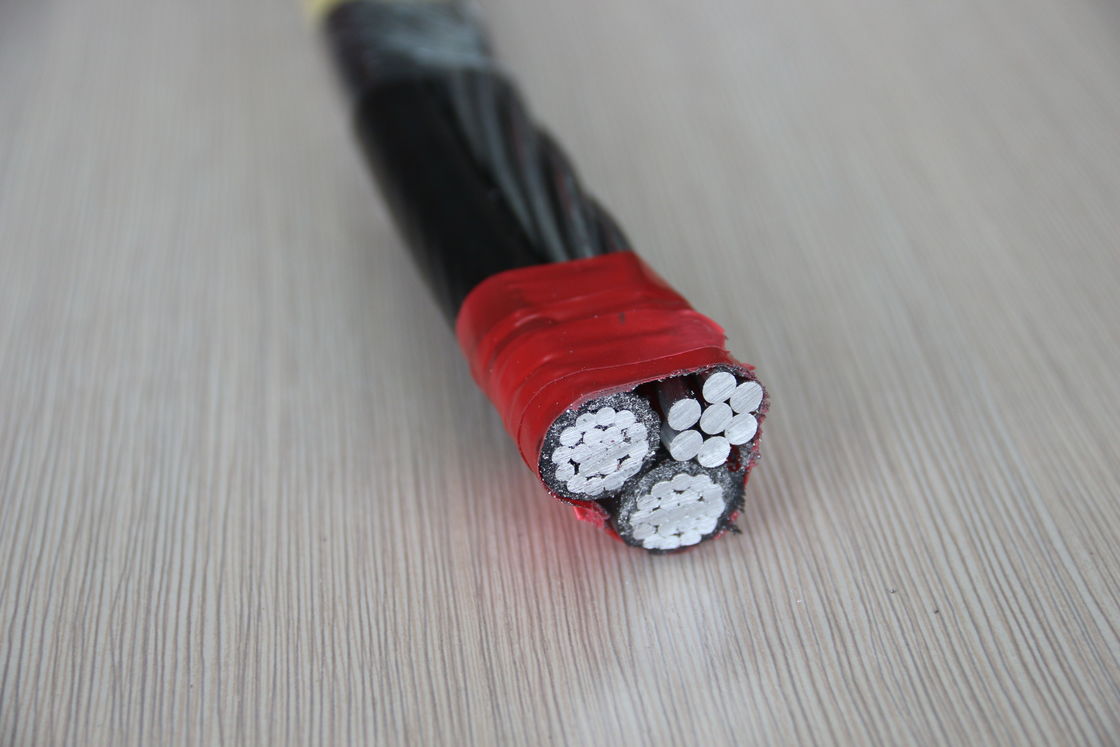

Triplex XLPE Insulated IEC standard 60502 Aerial Cable cable

Wear Resistant Triplex Aluminium Power Cables , XLPE Insulated Aluminum Aerial Cable

1. Application
Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross linked polyethylene (XLPE) insulated conductors.
2. Standards:
IEC 60502/BS/DIN/ASTM/GB/NF C 33-209
3. Construction of 1 x 70 mm2 3 x 120 mm2 2 x 16 mm2 abc cable
PHASE CONDUCTORS :
Phase conductors made of aluminium wires are circular stranded, rounded and compacted with smooth circular surface. Our products are available 16 mm2 as solid, 25 to 70 mm2 7 wired; from 95 mm2 to onwards as 19 wired confirming TS 11654.

MESSENGER (NEUTRAL) CONDUCTOR :
Bare, round, stranded and compacted aluminium alloy (294 N/mm2).

INSULATION :
Phase conductors of Aerial Bundled Cables are insulated by black coloured PE or XLPE which are weather resistant.

CORE IDENTIFICATION of 16 mm overhead XLPE/Al insulated abc cable :
Phase conductors two, three and four longitudinal ridges, street lighting conductor without ridges.
