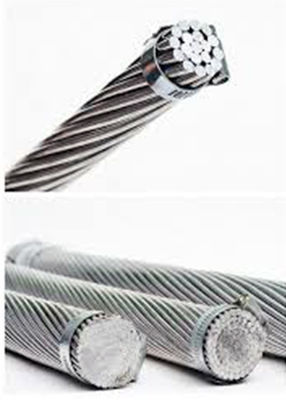

High quality Luoyang cable Al Conductor ACSR 1/0 applied for overhead transimission

High quality Luoyang cable Al Conductor ACSR 1/0 applied for overhead transimission

High quality Luoyang cable   Al Conductor ACSR 1/0 applied for overhead transimission
High quality Luoyang cable   Al Conductor ACSR 1/0 applied for overhead transimission
High quality Luoyang cable   Al Conductor ACSR 1/0 applied for overhead transimission
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: ACSR-006
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: New Wooden drum, reel, circle, or according to customers request.
Delivery Time: 1-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Material: Aluminum Voltagte: MV / LV
Original Place: Henan, China Life Span: 30 Years
Application: Aerial Factory: Yes
Highlight:

1/0 ACSR Rabbit Conductor

,

7*3.12mm ACSR Rabbit Conductor

,

1/0 acsr panther conductor

Economic design bare ACSR conductor overhead cable power cable

Material Standard:

ASTM-B232 Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors

BS215-2 aluminum conductors steel-reinforced —For overhead power transmission

DIN48204 Steel reinforced aluminum stranded conductors

IEC209 Aluminum stranded conductor steel reinforced

We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC standards, etc.



ACSR Conductor

Code Size (AWG/MCM) Number of Strands(mm) Weight(kg/km) Rated Strength(kg)
Rose 4 7*1.96 58.3 399
Iris 2 7*2.47 92.7 611
Pansy 1 7*2.78 117 740
Poppy 1/0 7*3.12 147.5 897
Aster 2/0 7*3.5 186 1375





ACSR Conductor

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products,please leave a message,and we will immediately answer your questions.



Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.

Single Shielded Wire Bare Aluminum Conductor Steel Reinforced Cables And ACSR Conductor
