LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer
 |
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | AAC-010 |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New wooden drum, Reel, Circle or according to customer's request |
| Delivery Time: | 1-15days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 200 tons per day |
| Material: | Aluminum | Application: | Overhead |
|---|---|---|---|
| Port: | Qingdao / Shanghai/ | Conductor: | Stranded |
| Voltage: | LV / MV | Standard: | BS IEC ASTM DIN |
| High Light: | 70mm2 All Aluminium Conductor,Bluebottle All Aluminium Conductor,70mm2 aac gnat conductor |
||
Bare Aluminum Conductor AAC/AAAC/ACSR for Transmission Line
STANDARDS:
IEC 61089, ASTM B231,BS 215 Part 1, EN 50182, DIN 48201 Part 5 etc.
All Aluminium Stranded Conductors BS 215, Part 1
| Code Name | Area | Stranding and wire diameter | Approx. Overall diameter | Weight | Nominal breaking load | Nom. DC resistance at 20 deg. | |
| Nominal | Actual | ||||||
| mm2 | mm2 | mm | mm | kg/km | kN | ohm/km | |
| MIDGE | 22 | 23.33 | 7/2.06 | 6.2 | 64 | 3.99 | 1.227 |
| APHIS | 25 | 26.4 | 3/3.35 | 7.2 | 73 | 4.11 | 1.081 |
| GNAT | 25 | 26.8 | 7/2.21 | 6.6 | 73 | 4.59 | 1.066 |
| WEEVIL | 30 | 31.6 | 3/3.66 | 7.9 | 86 | 4.86 | 0.9082 |
| MOSQUITO | 35 | 37.0 | 7/2.59 | 7.8 | 101 | 6.03 | 0.7762 |
| LADYBIRD | 40 | 42.8 | 7/2.79 | 8.4 | 117 | 6.87 | 0.6689 |
| ANT | 50 | 52.83 | 7/3.10 | 9.3 | 145 | 8.28 | 0.5419 |
| FLY | 60 | 63.55 | 7/3.40 | 10.2 | 174 | 9.90 | 0.4505 |
| BLUEBOTTLE | 70 | 73.7 | 7/3.66 | 11.0 | 202 | 11.34 | 0.3881 |
| EARWING | 75 | 78.5 | 7/3.78 | 11.4 | 215 | 11.94 | 0.3644 |
| GRASSHOPPER | 80 | 84.1 | 7/3.91 | 11.7 | 230 | 12.78 | 0.3406 |
| CLEGG | 90 | 95.6 | 7/4.17 | 12.5 | 262 | 14.53 | 0.2995 |
| WASP | 100 | 106.0 | 7/4.39 | 13.2 | 290 | 16.00 | 0.2702 |
| BEETLE | 100 | 106.6 | 19/2.67 | 13.4 | 293 | 17.42 | 0.2704 |
| BEE | 125 | 132.0 | 7/4.90 | 14.7 | 361 | 19.94 | 0.2169 |
CONSTRUCTION:
Aluminum 1350-H19 wires, concentrically stranded.
The most commonly used stranding consists of 7, 19, 37, 61 and 91 wires.

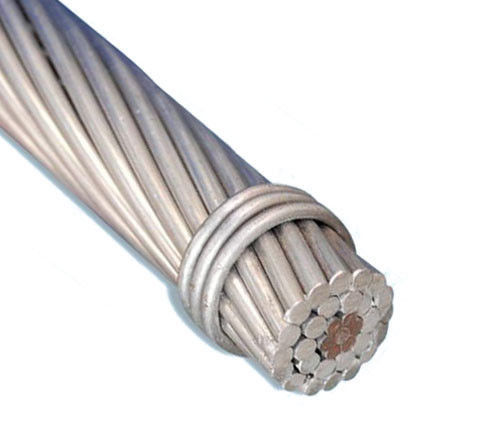

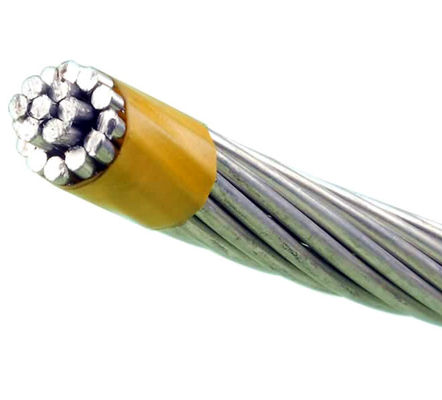

Bare concentric-lay-stranded aluminum wires constructed with a straight round central aluminum wire surrounded by one or more layers of helically laid aluminum wires.
In all constructions, the successive layers shall have opposite directions of lay, the outermost layer being right-handed.
APPLICATION:
AAC used in overhead electric power transmission and distribution lines with various grade voltages. Mainly used in urban areas for electricity transfer where the spacing is short and the supports are closer together. Apart from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties.
