|Place of Origin:||Henan|
|Minimum Order Quantity:||1000M|
|Packaging Details:||Non returnable wooden / steel reels|
|Supply Ability:||200 tons per day|
|Materials:||1350 Alloy||Application:||Cable Construction|
|Standard:||ASTM, BS, IEC, DIN||Type:||LV|
B-398 aaac panther conductor,
B-399 All Aluminium Alloy Conductor,
B-398 All Aluminium Alloy Conductor

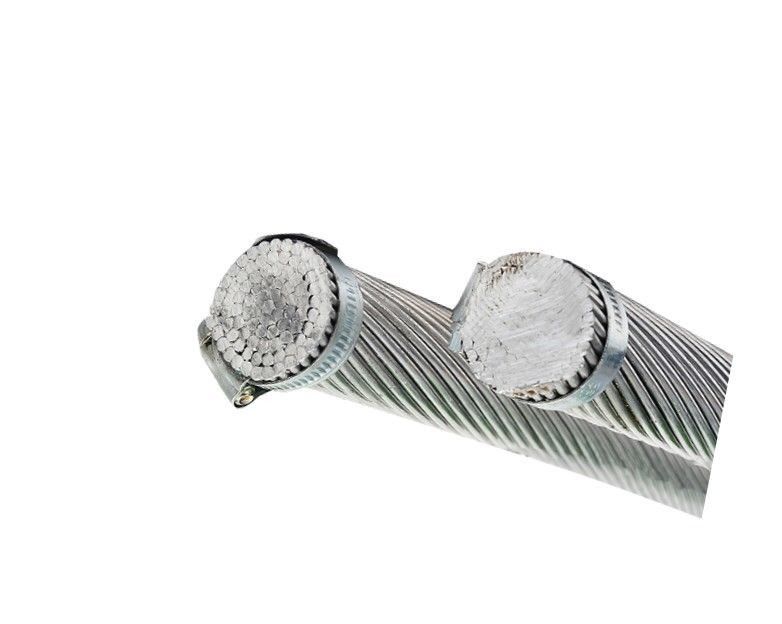

Factory Direct B-398,B-399,Ardival, Aldrey or Almelec AAAC All aluminium alloy conductor
Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.
Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay- stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. The DC resistance at 20°C of the 6201-T81 conductors and of the standard ACSRs of the same diameter are approximately the same. Conductors of the 6201-T81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.
AAAC bare conductor meets or exceeds the following ASTM specifications :
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
ELECTRICAL PROPERTIES of 2/0 AWG All aluminium alloy conductor
|Temperature Coefficient@20°C||0.00360 (°C)|
|Resistivity@20°C||0.0326 Ohms mm2 /m|
|Linear Expansivity||23 x10-6 (°C)|
SERVICE CONDITIONS of 2/0 AWG All aluminium alloy conductor
|Ambient Temperature||-5°C - 50°C|
|Wind Pressure||80 – 130kg/m2|
|Seismic Acceleration||0.12 - 0.05g|
|Isokeraunic Level||10 – 18|
|Relative Humidity||5 – 100%|
CONSTRUCTION PARAMETERS of 2/0 AWG All aluminium alloy conductor
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
Luoyang Sanwu Cable Co., Ltd., with registered capital of 100 million RMB, is a high-tech development company for scientific research, industry producing and trading , offering a diverse selection of quality wires and cables to industrial customers in 33 countries worldwide. The leading products are ACSR, overhead conductor, AAAC, AAC, power cable, BLXY, home-used wire and so on.
Sanwu cable owns variously advanced equipment and large quantities of high skilled professionals. With complete management system, advanced production process, strict testing procedure and reliable product quality, we have successively got IS09001, IS014001,OHSAS18001,TUV Certificate, CCC(China Compulsory Certification), the national industrial production license and so on.
In terms of quality, It is highly controlled by our company to ensure that all the products we sell meet your requirements and give you reassurance with excellent after-sale service.In terms of service, we are focusing on your need, we concern what you concern and request what you request to provide a more satisfied service.
Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.
Q:Have you ever supplied cables to our country ?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
Contact Person: Alex Yang
