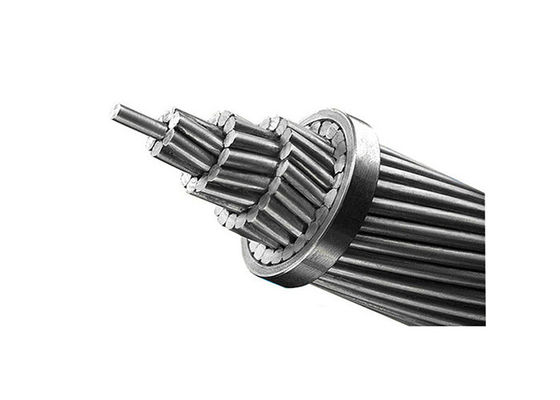

Bare Insulation LV ACAR Conductor For Power Distribution Lines

Bare Insulation LV ACAR Conductor For Power Distribution Lines

Bare Insulation LV ACAR Conductor For Power Distribution Lines
Bare Insulation LV ACAR Conductor For Power Distribution Lines
Bare Insulation LV ACAR Conductor For Power Distribution Lines
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: ACAR
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: USD 0.2-20 per meter
Packaging Details: wooden drums
Delivery Time: 1-15days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Conductor: Aluminum Core: Aluminum Alloy
Insulation: Bare Rated Voltage: 0.6-1kv;1-35KV
Application: Aerial Power Distribution Lines Service Life: 70 Years
Highlight:

LV ACAR Conductor

,

Bare Insulation acar wire

,

LV ACAR Conductor

 Aluminium Conductor Alloy Reinforced 0.6-1kv Low Voltage Direct Burial Cable Made in China



Product Name Aluminum Conductor Alloy Reinforced (ACAR)
Conductor Aluminum/Copper
Construction Aluminum Stranded & Aluminum Alloy Reinforce
Colors Assorted upon request
Voltage 600-1000V, 1KV-35KV
Application Used as bare overhead conductor for power distribution lines
Standards GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request

ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer.

ACAR is an excellent conductor choice where current carrying capacity ,higher strenghth and lower conductor weight are critical to the line design.

1. Standard

ASTM B524 ,B 230, B 398, IEC61089, etc Application

2. Construction

ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer

3. Features

1. ACAR offers excellent balance mechanical and electrical properties.

2.It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.

3.It is a compromise choice between AAC,ACSR,and AAAC.

4.It has 1350 designates grade of pure aluminium.

5. It has 6201 designates aluminium alloy grade.

4.Part of ACAR(6201) conductors of ASTM sizes.

Size Kcmil Stranding No.& Dia.(In.) Cross Sectional Area(Square In.) Nominal Conductor Dia. (In.)

Nominal weight

(Lbs/1000FT)

Rated Strength

( Lbs)

1350 6201 1350 6201 Total
503.6 15*0.1628 4*0.1628 0.3122 0.0833 0.3955 0.814 473 10500
587.2 15*0.1758 4*0.1758 0.3644 0.0971 0.4612 0.879 551 12200
649.5 18*0.1325 19*0.1325 0.2482 0.2620 0.5102 0.927 608 16600
653.1 12*0.1854 7*0.1854 0.3240 0.1890 0.5130 0.927 612 15400
739.8 18*0.1414 19*0.1414 0.2827 0.2983 0.5810 0.990 693 18800
853.7 30*0.1519 7*0.1519 0.5437 0.1268 0.6705 1.063 801 17500
853.7 24*0.1519 13*0.1519 0.4349 0.2356 0.6705 1.063 800 19300
927.2 24*0.1583 13*0.1583 0.4723 0.2559 0.7282 1.108 869 20900

5.Packaging and Delivery:

Bare Insulation LV ACAR Conductor For Power Distribution Lines 0

Packaging Details

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.
