LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | ACAR |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | USD 0.2-20 per meter |
| Packaging Details: | wooden drums |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per day |
| Conductor: | Aluminum | Core: | Aluminum Alloy |
|---|---|---|---|
| Color: | Silver | Insulation: | Bare |
| Rated Voltage: | 0.6-1kv;1-35KV | Application: | Aerial Power Distribution Lines |
| Service Life: | 70 Years | Warranty: | 1 Year |
| High Light: | IEC 61089 ACAR Cable,IEC 61089 bare conductor wire,1350 ACAR Cable |
||
Aluminium Conductor Alloy Reinforced 0.6-1kv Low Voltage Underground Cable Made in China
Conductor have been widely used in power transmission lines with various voltage levels, they have good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features.
| Product Name | Aluminum Conductor Alloy Reinforced (ACAR) |
| Conductor | Aluminum/Copper |
| Construction | Aluminum Stranded & Aluminum Alloy Reinforce |
| Colors | Assorted upon request |
| Voltage | 600-1000V, 1KV-35KV |
| Application | Used as bare overhead conductor for power distribution lines |
| Standards | GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request |
1.Standard
ASTM B524 ,B 230, B 398, IEC61089, etc Application
2.Construction

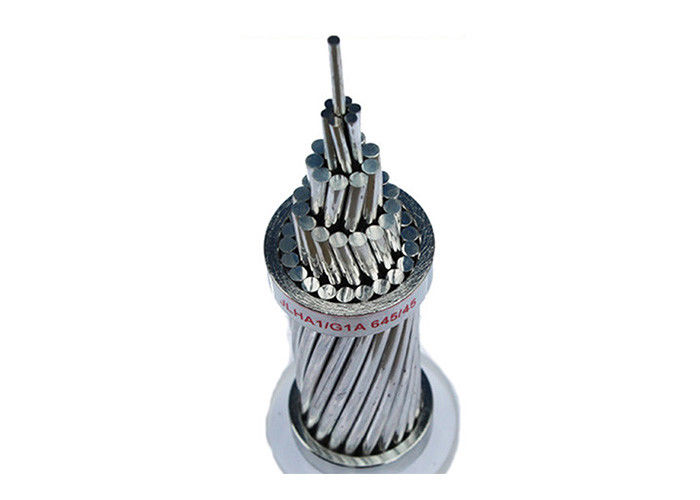

ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer
3.Features
1. ACAR offers excellent balance mechanical and electrical properties.
2.It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.
3.It is a compromise choice between AAC,ACSR,and AAAC.
4.It has 1350 designates grade of pure aluminium.
5. It has 6201 designates aluminium alloy grade.
4.Part of ACAR(6201) conductors of ASTM sizes.
| Size Kcmil | Stranding No.& Dia.(In.) | Cross Sectional Area(Square In.) | Nominal Conductor Dia. (In.) |
Nominal weight (Lbs/1000FT) |
Rated Strength ( Lbs) |
|||
| 1350 | 6201 | 1350 | 6201 | Total | ||||
| 503.6 | 15*0.1628 | 4*0.1628 | 0.3122 | 0.0833 | 0.3955 | 0.814 | 473 | 10500 |
| 587.2 | 15*0.1758 | 4*0.1758 | 0.3644 | 0.0971 | 0.4612 | 0.879 | 551 | 12200 |
| 649.5 | 18*0.1325 | 19*0.1325 | 0.2482 | 0.2620 | 0.5102 | 0.927 | 608 | 16600 |
| 653.1 | 12*0.1854 | 7*0.1854 | 0.3240 | 0.1890 | 0.5130 | 0.927 | 612 | 15400 |
| 739.8 | 18*0.1414 | 19*0.1414 | 0.2827 | 0.2983 | 0.5810 | 0.990 | 693 | 18800 |
| 853.7 | 30*0.1519 | 7*0.1519 | 0.5437 | 0.1268 | 0.6705 | 1.063 | 801 | 17500 |
| 853.7 | 24*0.1519 | 13*0.1519 | 0.4349 | 0.2356 | 0.6705 | 1.063 | 800 | 19300 |
| 927.2 | 24*0.1583 | 13*0.1583 | 0.4723 | 0.2559 | 0.7282 | 1.108 | 869 | 20900 |
5.Packaging and Delivery:
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
