LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer
 |
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | Solar cable 03 |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1.250meter a roll 2.2 rolls in a carton 3.Carton dimension:42cm*42cm*21cm 4.Net weight:35kg 5.Gross weight:36kg |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 tons per day |
| Conductor: | Copper | Insulation: | XLPE/XLPO |
|---|---|---|---|
| Jacket: | XLPE/XLPO | Colour: | Black And Red |
| Standard: | TUV | Application: | Solar Power Station |
| Highlight: | 6mm2 solar panel cable,6mm2 Solar PV Cables,3.42mm Solar PV Cables |
||

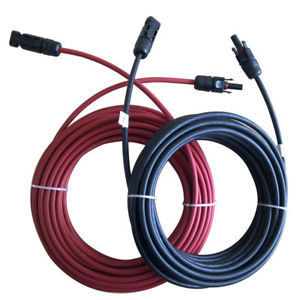

6mm2 Electric Cable Solar Power Cables for Solar Power Panel Solar Station
Main features:
1.High thermolysis efficiency
2.High quality with anti-dust, anti-UV&anti-aging
3.High resistance against oil, steam, bacteria&ozone
4.Creative technique for conductivity
5.Temperature range for applications -40°C~+125°C
6.Short circuit resistance up to +280
7.Electron beam cross-linked materials do not melt or flow,even at high temperatures
8.High resistance again heat, clod,abrasion,UV,ozone and hydrolysis.
9.Very high mechanical robustness and resistance against water,oil and chemicals.
10.Flexible, easy to strip
11.Halongen free, High flame retardant
12.TUV Rheinland approval.
13.double insulated covering, electron heam, cross linked.
14.It can be used for off-grid and grid connected PV System.
|
Cross section (mm2) |
Conductor construction (n/mm) |
Conductor stranded OD.(mm) |
Cable OD.(mm) |
Conductor Max. Resistance AT 20°C( Ω/km) |
Current Aarring Capacity AT 60°C(A) |
| 1x1.5 | 30/0.25 | 1.58 | 4.90 | 13.3 | 30 |
| 1x2.5 | 49/0.25 | 2.02 | 5.45 | 7.98 | 41 |
| 1x4.0 | 56/0.30 | 2.60 | 6.10 | 4.95 | 55 |
| 1x6.0 | 84/0.30 | 3.42 | 7.20 | 3.30 | 70 |
| 1x10 | 84/0.40 | 4.56 | 9.00 | 1.91 | 98 |
| 1x16 | 128/0.40 | 5.60 | 10.20 | 1.21 | 132 |
| 1x25 | 192/0.40 | 6.95 | 12.00 | 0.780 | 176 |
| 1x35 | 276/0.40 | 8.74 | 13.80 | 0.554 | 218 |
Shipment:
1.we ship to world wide
2.Most orders ship within 1-7 business days on payment received(except holiday)
3.Item shipped from China mainland using airmail by EMS,UPS,DHL,TNT or Hong kong Post Office,reach most of the countries within 6 to 14 business days.
4.Delivery time depends on destination and other factors,it may takes up to 20 business days.
5.After we ship the item,we will email you the shipping information,as well as the tracking number.
6.If it happens to be any duties,taxes and any other fees charged by the courier company and your respective country,the buyers are duty to pay.
Package:
1.250meter a roll
2.2 rolls in a carton
3.Carton dimension:42cm*42cm*21cm
4.Net weight:35kg
5.Gross weight:36kg
