| Name: | ACSR Core Wire | Conductor: | Aluminum Steel |
|---|---|---|---|
| Insulation: | Bare | Valtage: | 0.6/1 Kv |
| Application: | Overhead | Size: | 336.4 Mcm |
| Highlight: | 9.81mm2 ACSR Core Wire,8 Mcm ACSR Core Wire,9.81mm2 acsr squirrel conductor |
||
Conductors Aac/ Aaac/ Acsr/ Acar/ Accc Overhead Bare Conductors

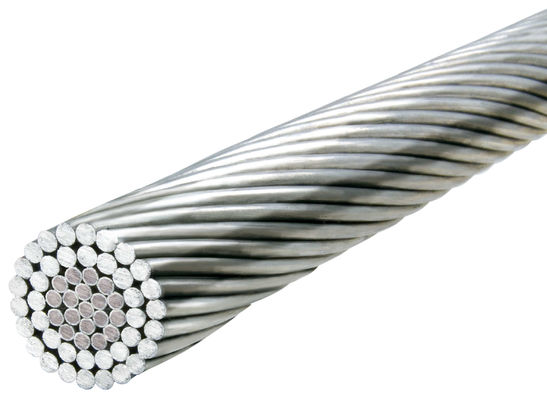

ACSR (Aluminum Conductor Steel Reinforced), consisting of a galvanized steel core, is surrounded byconcentric layers of aluminum wire, and grease if necessary.
Application:
Conductor (AAC and ACSR) have been widely used in power transmission lines with various voltage, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
Specifications:
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced
(ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
Material Standard:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.
| ACSR ASTM Technical Datasheet | ||||||||||
| Code | Size | Section | Stranding | Diameter | Total Weight |
Rated Strength |
Maximum Resisitance @20°C |
|||
| Al | Total | Al | Steel | Cable | Steel | |||||
| AWG or MCM |
mm² | mm | mm | kg/km | kg | Ω/km | ||||
| Wren | 8 | 8.37 | 9.81 | 6×1.33 | 1×1.33 | 3.99 | 1.33 | 33.8 | 340 | 3.4017 |
| Turkey | 6 | 13.3 | 15.48 | 6×1.68 | 1×1.68 | 5.03 | 1.68 | 53.7 | 540 | 2.1135 |
| Swan | 4 | 21.15 | 24.71 | 6×2.12 | 1×2.12 | 6.35 | 2.12 | 85.4 | 846 | 1.3278 |
| Swanate | 4 | 21.15 | 26.52 | 7×1.96 | 1×2.61 | 6.53 | 2.61 | 99.7 | 1067 | 1.3133 |
| Sparrow | 2 | 33.62 | 39.23 | 6×2.67 | 1×2.67 | 8.03 | 2.67 | 136 | 1289 | 0.8343 |
| Sparate | 2 | 33.62 | 42.13 | 7×2.47 | 1×3.30 | 8.26 | 3.3 | 159 | 1650 | 0.8251 |
| Robin | 1 | 42.41 | 49.48 | 6×3.00 | 1×3.00 | 9.02 | 3 | 171 | 1612 | 0.6621 |
| Raven | 1/0 | 53.51 | 62.39 | 6×3.37 | 1×3.37 | 10.11 | 3.37 | 216 | 1987 | 0.5243 |
| Quail | 2/0 | 67.44 | 78.65 | 6×3.78 | 1×3.78 | 11.35 | 3.78 | 273 | 2401 | 0.416 |
| Pigeon | 3/0 | 85.02 | 99.23 | 6×4.25 | 1×4.25 | 12.75 | 4.25 | 344 | 3006 | 0.3304 |
| Penguin | 4/0 | 107 | 125 | 6×4.77 | 1×4.77 | 14.3 | 4.77 | 433 | 3787 | 0.2618 |
| Owl | 266.8 | 135 | 153 | 6×5.36 | 7×1.79 | 16.09 | 5.37 | 507 | 4330 | 0.2109 |
| Waxwing | 266.8 | 135 | 143 | 18×3.09 | 1×3.09 | 15.47 | 3.09 | 431 | 3117 | 0.2119 |
| Partridge | 266.8 | 135 | 157 | 26×2.57 | 7×2.00 | 16.31 | 5.98 | 547 | 5113 | 0.21 |
| Oatrich | 300 | 152 | 177 | 26×2.73 | 7×2.12 | 17.27 | 6.36 | 614 | 5755 | 0.1867 |
| Piper | 300 | 152 | 188 | 30×2.54 | 7×2.54 | 17.78 | 7.62 | 697 | 7000 | 0.1902 |
| Merlin | 336.4 | 171 | 180 | 18×3.47 | 1×3.47 | 17.37 | 3.47 | 544 | 3931 | 0.168 |
| Linnet | 336.4 | 171 | 198 | 26×2.89 | 7×2.25 | 18.31 | 6.74 | 689 | 6730 | 0.1663 |
| Oriole | 336.4 | 171 | 210 | 30×2.69 | 7×2.69 | 18.82 | 8.07 | 784 | 7865 | 0.1654 |
| Chickadee | 397.5 | 201 | 213 | 18×3.77 | 1×3.77 | 18.87 | 3.77 | 642 | 4499 | 0.1421 |
| Ibis | 397.5 | 201 | 234 | 26×3.14 | 7×2.44 | 19.89 | 7.32 | 814 | 7488 | 0.1411 |
| Lark | 397.5 | 201 | 248 | 30×2.92 | 7×2.92 | 20.47 | 8.77 | 927 | 9202 | 0.1401 |
| Pelican | 477 | 242 | 255 | 18×4.14 | 1×4.14 | 20.68 | 4.14 | 771 | 5347 | 0.1184 |
| Flicker | 477 | 242 | 273 | 24×3.58 | 7×2.39 | 21.49 | 7.16 | 914 | 7790 | 0.1178 |
| Hawk | 477 | 242 | 281 | 26×3.44 | 7×2.67 | 21.79 | 8.03 | 977 | 8880 | 0.1171 |
| Hen | 477 | 242 | 298 | 30×3.20 | 7×3.20 | 22.43 | 9.61 | 1112 | 10783 | 0.1165 |
| Heron | 500 | 253 | 312 | 30×3.28 | 7×3.28 | 22.96 | 9.84 | 1162 | 11090 | 0.1141 |
| Osprey | 556.5 | 282 | 298 | 18×4.47 | 1×4.47 | 22.33 | 4.47 | 899 | 6233 | 0.1014 |
| Parakeet | 556.5 | 282 | 319 | 24×3.87 | 7×2.58 | 23.22 | 7.73 | 1067 | 8999 | 0.101 |
| Dove | 556.5 | 282 | 328 | 26×3.72 | 7×2.89 | 23.55 | 8.66 | 1140 | 10019 | 0.1007 |
| Eagle | 556.5 | 282 | 348 | 30×3.46 | 7×3.46 | 24.21 | 10.39 | 1298 | 12606 | 0.1001 |
| Peacock | 605 | 307 | 346 | 24×4.03 | 7×2.69 | 24.21 | 8.03 | 1161 | 9771 | 0.0928 |
| Squab | 605 | 307 | 357 | 26×3.87 | 7×3.01 | 24.54 | 9.04 | 1240 | 11018 | 0.0925 |
| Teal | 605 | 307 | 376 | 30×3.61 | 19×2.16 | 25.25 | 10.82 | 1398 | 13567 | 0.0919 |
| Duck | 605 | 307 | 346 | 54×2.69 | 7×2.69 | 24.21 | 8.07 | 1158 | 10210 | 0.0944 |
| Kingbird | 636 | 322 | 340 | 18×4.78 | 1×4.78 | 23.88 | 4.78 | 1028 | 7128 | 0.0895 |
| Rook | 636 | 322 | 364 | 24×4.14 | 7×2.76 | 24.82 | 8.28 | 1219 | 10298 | 0.0883 |
| Grosbeak | 636 | 322 | 375 | 26×3.97 | 7×3.09 | 25.15 | 9.27 | 1302 | 11427 | 0.0897 |
| Egret | 636 | 322 | 396 | 30×3.70 | 19×2.22 | 25.88 | 11.1 | 1471 | 14302 | 0.0876 |
| Goose | 636 | 322 | 364 | 54×2.76 | 7×2.76 | 24.84 | 8.28 | 1218 | 10730 | 0.0898 |
| Flamingo | 666.6 | 338 | 382 | 24×4.23 | 7×2.82 | 15.4 | 8.46 | 1278 | 10751 | 0.0843 |
| Gull | 666.6 | 338 | 382 | 54×2.82 | 7×2.82 | 25.38 | 8.46 | 1276 | 11140 | 0.0587 |
| Starling | 715.5 | 363 | 422 | 26×4.21 | 7×3.28 | 26.7 | 9.83 | 1465 | 12865 | 0.0781 |
| Redwing | 715.5 | 363 | 445 | 30×3.92 | 19×2.35 | 27.46 | 11.76 | 1653 | 15649 | 0.0778 |
| Cuckoo | 795 | 403 | 455 | 24×4.62 | 7×3.08 | 27.74 | 9.25 | 1524 | 12649 | 0.0719 |
