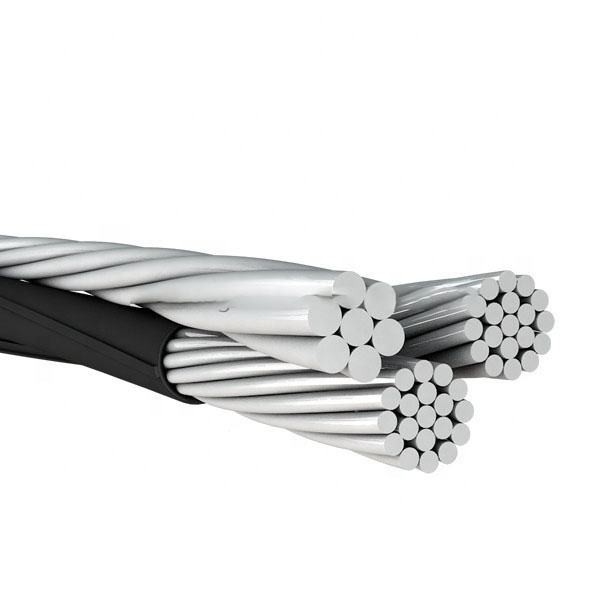

50/8 A/AC wire Conductor transmission line

50/8 A/AC wire Conductor transmission line

  • 50/8  A/AC wire  Conductor transmission line
  • 50/8  A/AC wire  Conductor transmission line
50/8  A/AC wire  Conductor transmission line
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: ACSR
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 1-15days
Payment Terms: T/T, L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Keywords: Dog Panther Zebra Conductor Voltage: LV / MV
Material: Aluminum And Steel Port: Qingdao / Shanghai
Life Span: 30 Years Application: Transmission Line
High Light:

Acsr Dog Panther Zebra Conductor


50 Sq Mm Acsr Dog Panther Zebra Conductor


Transmission 50 sq mm acsr conductor

50 Sq Mm Acsr Dog Panther Zebra Conductor Transmission Line

Dog Panther Zebra Conductors used for overhead distribution and transmission lines adjacent to ocean coastlines.



Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.


ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)

The permissible long-time operating temperature for aerial conductor is 70.
The circumstance that long distance rare climate and ice coverage rare occurring in heavy ice area, the most biggest stress of cable at the lowest arc downing point should not exceed 60% of the distructive power at a short time.

When connecting conductors, the conductor near to the connecting tube can`t be prominient. Otherwise, the force on the operating conductors will be unbalanced after connectors are pressed, the connecting tube should be plated ny moistureproof paint in order to protect from corroding.
Under installation, the arc downing stress of all the conductors at home distance ot the ground and across building can be 10-15% higher than regular tension.

Any crush or bump should be avoided during handling and transportation of the product.
The cable drum is not allowed to be placed with one flange up and the other down during transportation and storage of the products.
A moisture-proof measure should be taken during storage of the product
Corrugated aluminium pipe busbar, made of aluminium wires or aluminium alloy wires stranded around aluminium pipe.
We Can also supply the OEM and customized products as your request!



50/8  A/AC wire  Conductor transmission line 0

ACSR Conductor-Aluminum Conductor Steel Reinfored

Professional ACSR condcutor cable manufacturer from China, Meet your kinds of requirement acsr conductor cable With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size.

ACSR Conductor Character:1.Aluminum Conductor; 2.Steel Reinforced; 3.Bare.

Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
