Bare Conductor ACSR Wire ASTM Standard For Transmission High Voltage

Bare Conductor ACSR Wire ASTM Standard For Transmission High Voltage

  • Bare Conductor ACSR Wire ASTM Standard For Transmission High Voltage
  • Bare Conductor ACSR Wire ASTM Standard For Transmission High Voltage
  • Bare Conductor ACSR Wire ASTM Standard For Transmission High Voltage
  • Bare Conductor ACSR Wire ASTM Standard For Transmission High Voltage
Bare Conductor ACSR Wire ASTM Standard For Transmission High Voltage
Product Details:
Place of Origin: HENAN
Brand Name: SANWU
Certification: ISO,CCC
Model Number: ACSR
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: USD 0.1-0.5
Packaging Details: wooden drums or depend on customers request
Delivery Time: 1-15days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Name: ACSR Conductor Conductor: Aluminium Conductor
Core: Steel Core Insulation: Bare
High Light:

Bare Conductor ACSR Wire

,

ACSR Wire ASTM Standard

,

High Voltage ACSR Wire

Bare Conductor ACSR Wire ASTM Standard For Transmission High Voltage



Product Name Overhead Conductor ACSR Aluminium Conductor Steel Reinforced (ACSR)
Conductor Aluminum
Construction Aluminum Stranded & Steel Reinforce
Colors Assorted upon request
Voltage 600-1000V, 1KV-35KV
Application Used as bare overhead conductor for power distribution lines
Standards GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request

Description

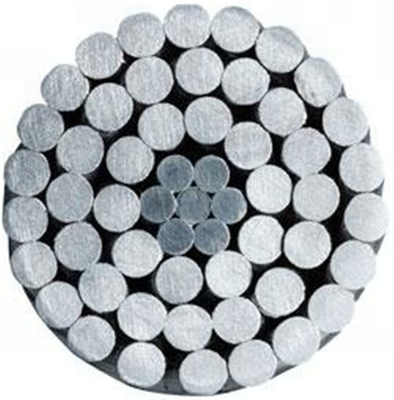

ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium (E.C. GRADE). ACSR Conductor may be manufactured for having a wide range of tensile strength as per requirement. The principal advantage of these conductors are high tensile strength and light weight with longer spans as well as with lesser supports. Due to the greater diameter of ACSR Conductor a much higher corona limit can be obtained causing big advantages on high as well as extra high voltage overhead lines.



Construction

•Aluminum 1350H19 wires, concentrically stranded about a steel core. Standard core wire for ACSR is class A galvanized.

• Class A core stranding is also available in zinc-5%

alloy coating.
• For aluminum-clad (AW) ACSR, please refer to the ACSR/AW catalog sheet
• Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
• ACSR conductor is also available in non-specular.



4. Producing Process:

Bare Conductor ACSR Wire ASTM Standard For Transmission High Voltage 0

5.Our Products:

Bare Conductor ACSR Wire ASTM Standard For Transmission High Voltage 1

6.Packaging & Delivery:

Packaging Details

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.
