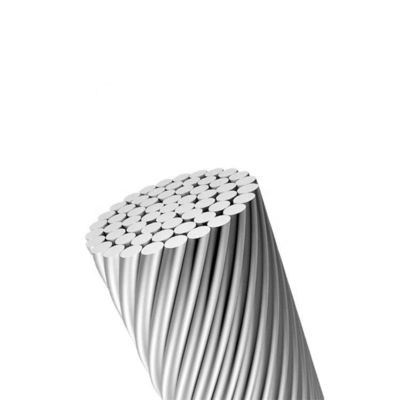

High Voltage HV AAC Aluminum Conductors For Power Transmission

High Voltage HV AAC Aluminum Conductors For Power Transmission

High Voltage HV AAC Aluminum Conductors For Power Transmission
High Voltage HV AAC Aluminum Conductors For Power Transmission
High Voltage HV AAC Aluminum Conductors For Power Transmission
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: AAC
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: New wooden drum, Reel, Circle or according to customer's request
Delivery Time: 1-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Name: AAC Aluminum Conductors Voltage: HV
Application: Power Transmission Standard: ASTM,BS,DIN,AS/NZS,IEC, CSA
Packing: Wooden Drum MOQ: 10KM
Type Of Conductor:: Stranded
High Light:

HV AAC Aluminum Conductors

,

High Voltage AAC Aluminum Conductors

,

Power Transmission AAC Aluminum Conductors

High Voltage HV AAC Aluminum Conductors For Power Transmission



AAC Aluminum Conductors are made up of concentric-lay-stranded aluminium wires only.

The conductor may be made up of 7, 19, 37, 61 or more wires in 1, 2, 3, 4 or more layers arounda central wire. Each successive layer shall have six more wires than the layer immediately beneath.For a given crosssectional area, the conductor becomes more flexible as the number of wires is increased(with a corresponding decrease in size of each wire).



High Voltage HV AAC Aluminum Conductors For Power Transmission 0

High Voltage HV AAC Aluminum Conductors For Power Transmission 1



AAC Aluminum Conductors Specification



Nominal

area

Stranding &wire diameter Approx Overall diameter Breaking Load DC Resistance at 20

Approx.

Weight

mm mm N Ω/km Kg/km
16 7/1.70 5.10 2840 1.802 43.5
25 7/2.15 6.45 4355 1.127 69.6
35 7/2.50 7.50 5760 0.8332 94.1
50 7/3.00 9.00 7930 0.5786 135..5
70 7/3.60 10.80 10950 0.4018 195.1
95 7/4.16 12.48 14450 0.3009 260.5
120 19/2.85 14.25 19420 0.2373 333.5
150 19/3.15 15.75 23310 0.1943 407.4
185 19/3.50 17.5 28440 0.1574 503.0
210 19/3.75 18.75 32260 0.1371 577.4
240 19/4.00 20.00 36260 0.1205 656.9
300 37/3.20 22.40 46850 0.09689 820.4
400 37/3.70 25.90 61150 0.07247 1097
500 37/4.16 29.12 76370 0.05733 1387
630 61/3.63 32.67 91940 0.04577 1744
800 61/4.10 36.90 115900 0.03588 2225



High Voltage HV AAC Aluminum Conductors For Power Transmission 2

High Voltage HV AAC Aluminum Conductors For Power Transmission 3
