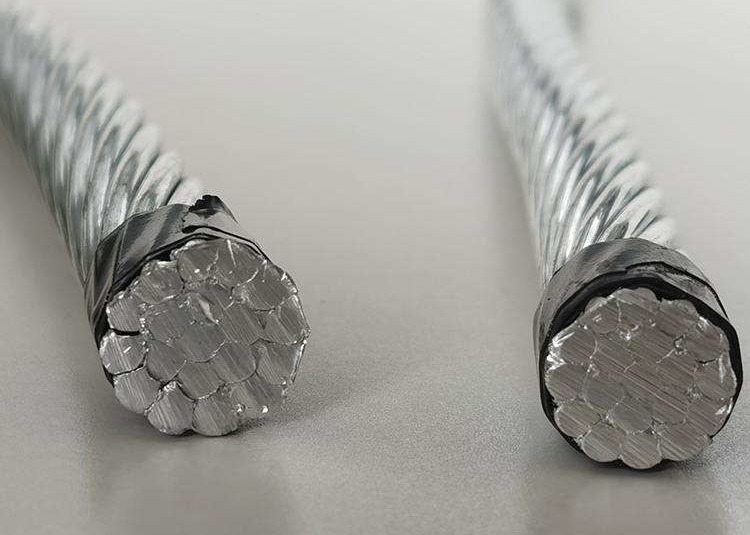

1KV-35KV ACAR Conductor For Aerial Power Distribution Lines

1KV-35KV ACAR Conductor For Aerial Power Distribution Lines

1KV-35KV ACAR Conductor For Aerial Power Distribution Lines
1KV-35KV ACAR Conductor For Aerial Power Distribution Lines
1KV-35KV ACAR Conductor For Aerial Power Distribution Lines
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: ACAR
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: USD 0.2-20 per meter
Packaging Details: wooden drums
Delivery Time: 1-15days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Conductor: ACAR Conductor Core: Aluminum Alloy
Color: Silver Insulation: Bare
Rated Voltage: 0.6-1kv;1-35KV Usage: Aerial Power Distribution Lines
Service Life: 70 Years Insulation Material: Bare
Standard: ASTM,IEC,IEC60502,BS,DIN
High Light:

ACAR Conductor 35KV

,

Aerial Power Distribution Lines ACAR Conductor

,

ACAR Conductor Bare Insulation

1KV-35KV ACAR Conductor For Aerial Power Distribution Lines



1. Standard

ASTM B524 ,B 230, B 398, IEC61089, etc Application

2. Construction

ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer

3. Features

1. ACAR offers excellent balance mechanical and electrical properties.

2. It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.

3. It is a compromise choice between AAC,ACSR,and AAAC.

4. It has 1350 designates grade of pure aluminium.

5. It has 6201 designates aluminium alloy grade.



1KV-35KV ACAR Conductor For Aerial Power Distribution Lines 0



4. Part of ACAR(6201) conductors of ASTM sizes.

Size Kcmil Stranding No.& Dia.(In.) Cross Sectional Area(Square In.) Nominal Conductor Dia. (In.)

Nominal weight

(Lbs/1000FT)

Rated Strength

( Lbs)

1350 6201 1350 6201 Total
503.6 15*0.1628 4*0.1628 0.3122 0.0833 0.3955 0.814 473 10500
587.2 15*0.1758 4*0.1758 0.3644 0.0971 0.4612 0.879 551 12200
649.5 18*0.1325 19*0.1325 0.2482 0.2620 0.5102 0.927 608 16600
653.1 12*0.1854 7*0.1854 0.3240 0.1890 0.5130 0.927 612 15400
739.8 18*0.1414 19*0.1414 0.2827 0.2983 0.5810 0.990 693 18800
853.7 30*0.1519 7*0.1519 0.5437 0.1268 0.6705 1.063 801 17500
853.7 24*0.1519 13*0.1519 0.4349 0.2356 0.6705 1.063 800 19300
927.2 24*0.1583 13*0.1583 0.4723 0.2559 0.7282 1.108 869 20900



1KV-35KV ACAR Conductor For Aerial Power Distribution Lines 1

1KV-35KV ACAR Conductor For Aerial Power Distribution Lines 2

5. Packaging and Delivery:

1KV-35KV ACAR Conductor For Aerial Power Distribution Lines 3

1KV-35KV ACAR Conductor For Aerial Power Distribution Lines 41KV-35KV ACAR Conductor For Aerial Power Distribution Lines 5

Packaging Details

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.

1KV-35KV ACAR Conductor For Aerial Power Distribution Lines 6
