Stranded Aluminium Conductor Steel Reinforced 600-1000V

Stranded Aluminium Conductor Steel Reinforced 600-1000V

Stranded Aluminium Conductor Steel Reinforced 600-1000V
Stranded Aluminium Conductor Steel Reinforced 600-1000V
Stranded Aluminium Conductor Steel Reinforced 600-1000V
Product Details:
Place of Origin: HENAN
Brand Name: SANWU
Certification: ISO,CCC
Model Number: ACSR
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: USD 0.1-0.5
Packaging Details: wooden drums or depend on customers request
Delivery Time: 1-15days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Name: Stranded Aluminium Conductor Steel Reinforced Conductor: Aluminium Conductor
Core: Steel Core Insulation: Bare
Voltage: 600-1000V Tech.: Stranded
High Light:

Stranded Aluminium Conductor Steel Reinforced

,

Aluminium Conductor Steel Reinforced 600V

,

Aluminium Conductor Steel Reinforced 1000V

Stranded Aluminium Conductor Steel Reinforced 600-1000V



Application:
* Used as bare overhead transmission line and as primary and secondary distribution.
* ACSR offers the best strength for line design.
* Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.



Product Name Stranded Aluminium Conductor Steel Reinforced 600-1000V
Conductor Aluminum
Construction Aluminum Stranded & Steel Reinforce
Colors Assorted upon request
Voltage 600-1000V, 1KV-35KV
Application Used as bare overhead conductor for power distribution lines
Standards GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request



Construction

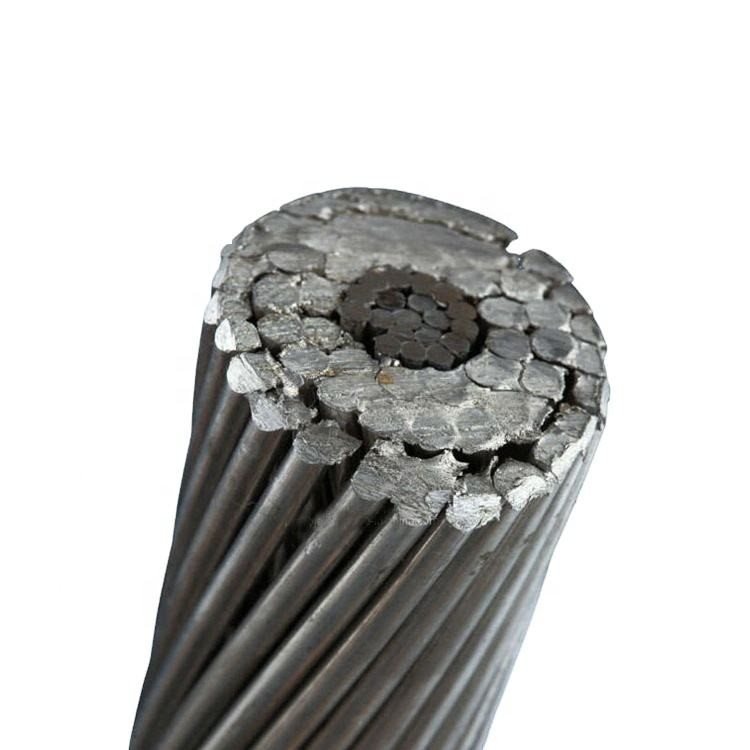

•Aluminum 1350H19 wires, concentrically stranded about a steel core. Standard core wire for ACSR is class A galvanized.

• Class A core stranding is also available in zinc-5%

alloy coating.
• For aluminum-clad (AW) ACSR, please refer to the ACSR/AW catalog sheet
• Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
• ACSR conductor is also available in non-specular.



4. Producing Process:

Stranded Aluminium Conductor Steel Reinforced 600-1000V 0

5.Our Products:

Stranded Aluminium Conductor Steel Reinforced 600-1000V 1

6.Packaging & Delivery:

Packaging Details

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.
