High Capacity Aluminium Conductor Steel Reinforced Acsr

High Capacity Aluminium Conductor Steel Reinforced Acsr

  • High Capacity Aluminium Conductor Steel Reinforced Acsr
High Capacity Aluminium Conductor Steel Reinforced Acsr
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: ACSR-010
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: New Wooden drum, reel, circle, or according to customers request.
Delivery Time: 1-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Keywords: ACSR Bare Cable Original Place: Henan, China
Life Span: More Than 30 Years Voltage: Medium And Low
Dimension: 0.5--1000mm2 Conductor: Aluminum Alloy, Steel , Aluminum
High Light:

high capacity aluminium conductor steel reinforced

,

aluminium conductor steel reinforced acsr

,

high capacity steel reinforced aluminium conductor

High Capacity ACSR Steel Reinforced Aluminium Conductor Turkey Swan​



ACSR Steel Reinforced Aluminium Conductor construction uses aluminum alloy 1350-H19 wires, concentrically stranded around a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; aluminum coated (AZ); or aluminum-clad steel core (AL). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.



ACSR Conductor

Code Size (AWG/MCM) Number of Strands(mm) Weight(kg/km) Rated Strength(kg)
Rose 4 7*1.96 58.3 399
Iris 2 7*2.47 92.7 611
Pansy 1 7*2.78 117 740
Poppy 1/0 7*3.12 147.5 897
Aster 2/0 7*3.5 186 1375





ACSR Conductor

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products,please leave a message,and we will immediately answer your questions.



Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.

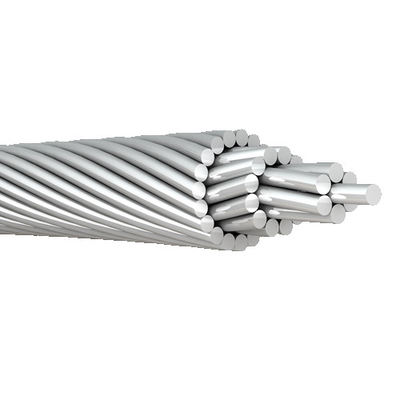

High Capacity Aluminium Conductor Steel Reinforced Acsr 0
