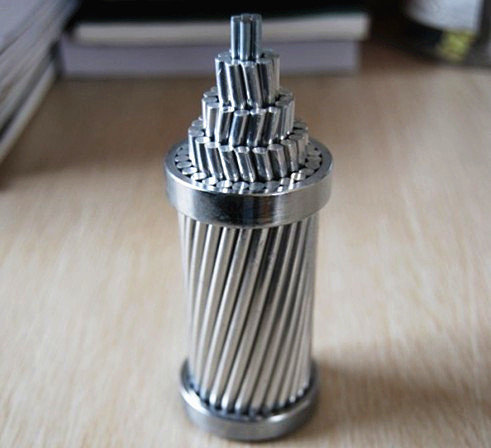

1AWG Bs Standard Acsr Aluminium Conductor Steel Reinforced Bare Conductor

1AWG Bs Standard Acsr Aluminium Conductor Steel Reinforced Bare Conductor

1AWG Bs Standard Acsr Aluminium Conductor Steel Reinforced Bare Conductor
1AWG Bs Standard Acsr Aluminium Conductor Steel Reinforced Bare Conductor
1AWG Bs Standard Acsr Aluminium Conductor Steel Reinforced Bare Conductor
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: ACSR-001
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: New Wooden drum, reel, circle, or according to customers request.
Delivery Time: 1-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Name: Acsr Aluminium Conductor Steel Reinforced Wires: 7stranded
Standard: BS Standard Color: Natural
Insulation: Bare Conductor Keyword: Aluminium Steel Reinforced Conductor
High Light:

1AWG acsr aluminium conductor steel reinforced

,

bare acsr aluminium conductor steel reinforced

,

bs standard aluminium steel reinforced conductor

ASTM ACSR Aluminum Conductor Steel Reinforced Rose Iris Conductor



Introduction of ACSR Aluminum Conductor Steel Reinforced



Acsr Aluminium Conductor Steel Reinforced has a long service record because of its economy, dependability, and strength-to-weight ratio. The combined light weight and high conductivity of aluminum with the strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.



ACSR Aluminum Conductor Steel Reinforced Specification



Code Size (AWG/MCM) Number of Strands(mm) Weight(kg/km) Rated Strength(kg)
Rose 4 7*1.96 58.3 399
Iris 2 7*2.47 92.7 611
Pansy 1 7*2.78 117 740
Poppy 1/0 7*3.12 147.5 897
Aster 2/0 7*3.5 186 1375



Applications


Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

1AWG Bs Standard Acsr Aluminium Conductor Steel Reinforced Bare Conductor 0

Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.



1AWG Bs Standard Acsr Aluminium Conductor Steel Reinforced Bare Conductor 1
