600-1000v Aluminium Conductor Steel Reinforced Cable For Power Distribution Lines

600-1000v Aluminium Conductor Steel Reinforced Cable For Power Distribution Lines

600-1000v Aluminium Conductor Steel Reinforced Cable For Power Distribution Lines
600-1000v Aluminium Conductor Steel Reinforced Cable For Power Distribution Lines
600-1000v Aluminium Conductor Steel Reinforced Cable For Power Distribution Lines
Product Details:
Place of Origin: Henan
Brand Name: SanWu
Certification: ISO CCC
Model Number: ACSR
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: USD 0.1-2.22 Per Meter
Packaging Details: Wooden drums packaging with different sizes
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Keywords: Aluminium Conductor Steel Reinforced Cable Conductor: Aluminium
Voltage: 600-1000V Color: Silver
Insulation: Bare Usage: Aerial Cable
High Light:

600v aluminium conductor steel reinforced

,

silver aluminium conductor steel reinforced

,

1000v aluminum conductor steel reinforced

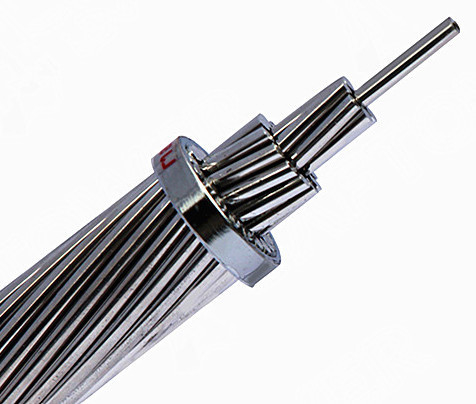

600-1000V Aluminium Conductor Steel Reinforced Cable Power Distribution Lines



ACSR conductor or aluminum conductor steel reinforced is used as bare overhead transmission and as primary and secondary distribution cable. ACSR is suitable for use in all practical spans on wood poles, transmission towers, and other structures because of its dependability and strength-to-weight ratio.



Construction



Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); or aluminum-clad (AW) - please see our ACSR/AW spec for more information. Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.



Product Show
Product Name Penguin Raccoon Aluminium Conductor Steel Reinforced For Aerial Cable
Conductor Aluminum
Construction Aluminum Stranded & Steel Reinforce
Voltage 600-1000V, 1KV-35KV
Application Used as bare overhead conductor for power distribution lines
Standards GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request

600-1000v Aluminium Conductor Steel Reinforced Cable For Power Distribution Lines 0

Features

1)Rated voltage is 500KV or lower

2) ACSR bare conductor meets or exceeds the following ASTM specifications:
• B230 Aluminum 1350-H19 Wire for Electrical Purposes.
• B232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
• B498 Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors.
• B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors.

The Testing Machine

600-1000v Aluminium Conductor Steel Reinforced Cable For Power Distribution Lines 1

FAQ

Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.

Q:Have you ever supplied cables to our country ?

A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
