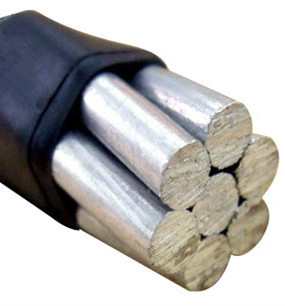

4 Awg 2 Awg Aluminium Conductor Steel Reinforced For Power Transmission

4 Awg 2 Awg Aluminium Conductor Steel Reinforced For Power Transmission

4 Awg 2 Awg Aluminium Conductor Steel Reinforced For Power Transmission
4 Awg 2 Awg Aluminium Conductor Steel Reinforced For Power Transmission
4 Awg 2 Awg Aluminium Conductor Steel Reinforced For Power Transmission
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: ACSR-009
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: New Wooden drum, reel, circle, or according to customers request.
Delivery Time: 1-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Product Name: Aluminium Conductor Steel Reinforced Size: 4 AWG 2 AWG
Voltage: Medium Port: Qingdao / Shanghai
Usage: Power Transmission Factory: Yes
High Light:

4 awg aluminium conductor steel reinforced

,

power transmission aluminium conductor steel reinforced

,

2 awg aluminum conductor steel reinforced

4 AWG 2 AWG Aluminium Conductor Steel Reinforced Power Transmission



Aluminium Conductor Steel Reinforced(ACSR) is a type of high-capacity, high-strength stranded conductor typically used in overhead power lines. The outer strands are high-purity aluminum, chosen for its good conductivity, low weight, low cost, resistance to corrosion and decent mechanical stress resistance. The center strand is steel for additional strength to help support the weight of the conductor.



Aluminium Conductor Steel Reinforced Parameters



Code Size (AWG/MCM) Number of Strands(mm) Weight(kg/km) Rated Strength(kg)
Rose 4 7*1.96 58.3 399
Iris 2 7*2.47 92.7 611
Pansy 1 7*2.78 117 740
Poppy 1/0 7*3.12 147.5 897
Aster 2/0 7*3.5 186 1375





Used bare overhead transmission cable and as primary and secondary distribution cable acsr offers optimal strength for line design without sacrificing ampacity.

4 Awg 2 Awg Aluminium Conductor Steel Reinforced For Power Transmission 0





ACSR Conductor

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. Thanks for your support.



Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.

4 Awg 2 Awg Aluminium Conductor Steel Reinforced For Power Transmission 1
