Aluminium Conductor 3 Core Aerial Bunched Cable Xlpe Sheath

Aluminium Conductor 3 Core Aerial Bunched Cable Xlpe Sheath

  • Aluminium Conductor 3 Core Aerial Bunched Cable Xlpe Sheath
Aluminium Conductor 3 Core Aerial Bunched Cable Xlpe Sheath
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: ABC
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: USD0.16-125 per meter

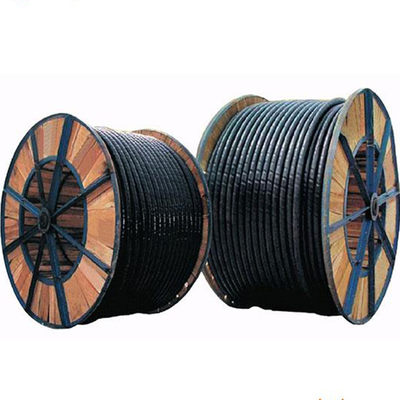

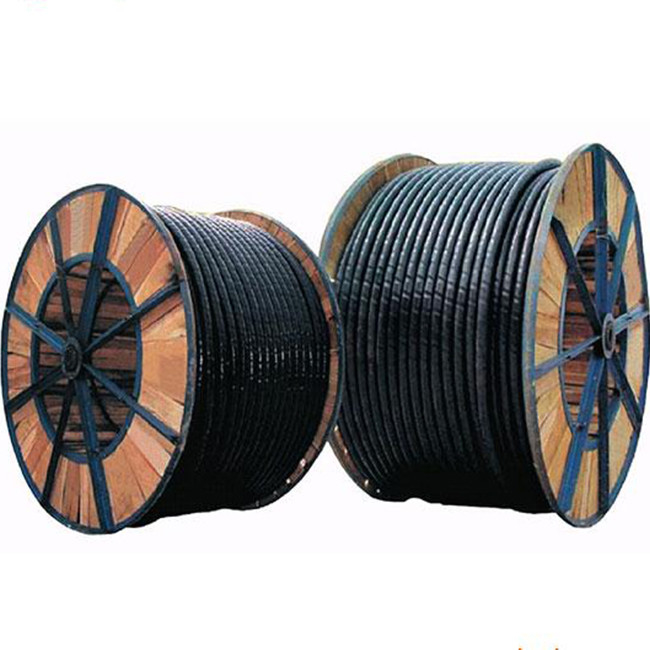

Packaging Details: Standard export wooden drums or as your requirement
Delivery Time: 1-15days
Payment Terms: T/T, L/C, MoneyGram, Western Union
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Insulation Material: PE/XLPE/PVC Type: Aerial Bunched Cable
Application: Street Lighting Conductor Material: AAC/AAAC/ACSR
Sheath: XLPE Sheath Production Capacity: 3000km Per Month
High Light:

3 core aerial bunched cable

,

xlpe sheath aerial bunched cable

,

xlpe sheath aerial bundled cable

Aluminium Conductor 3 Core Aerial Bunched Cable XLPE Sheath



1. Introduction:

Compared with bare wires, overhead insulated cables have many advantages such as small laying span, high reliability, and good anti-aging performance. They are the types of cables that are actively selected for urban power projects.

2. construction:

A concentric strand or compressed 1350-H19 conductor, poly- ethylene or cross linked polyethylene insulation,concentric strand AAC, ACSR or 6201 alloy neutral messenger.

3.type of XLPE(PE) insulated abc cable (service drop)

XLPE(PE) insulatedabc cable (service drop)covers mainly three types:

Duplex Service Drop

Triplex Service Drop

Quadruplex Service Drop

The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor , etc. And we can still produce the cables according to the request of customers.



4.Detaild Introduction of XLPE(PE) insulated abc cable (service drop)

3.1 Duplex Service Drop

Applications

To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.



Construction

Concentic strand or cmpressed 1350-H19 conductor , polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy nertral messenger.



3.2 Triplex Service Drop

Applications

To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .



Construction

Concentic strand or cmpressed 1350-H19 conductor , polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy nertral messenger.


Cord word Phase conductor Bare neutral messenger Nominal lay length Weight per 1000ft (ibs) Allowable amp cities
Size (AWG) Stranding Insul. Thick(Mils) Size (AWG) Stranding Pated strength(ibs) inches XLPE PE XLPE PE
AAC Neutral-messenger
Patella 6 7 45 6 7 563 14.88 103 103 85 70
oyster 4 7 45 4 7 881 14.88 154 154 115 90
clam 2 7 45 2 7 1350 20.58 233 233 150 120
murex 1/0 7 60 1/0 7 1990 20.58 374 374 205 160
purpura 1/0 9 60 1/0 7 1990 20.58 368 368 205 160
nassa 2/0 7 60 2/0 7 2510 25.42 462 462 235 185
melita 3/0 17 60 3/0 19 3310 29.97 562 562 275 215
portunus 4/0 18 60 4/0 19 4020 29.97 696 696 315 245
nannynose 336.4 19 80 336.4 19 6146 38.79 1118 1118 420 325

Aluminium Conductor 3 Core Aerial Bunched Cable Xlpe Sheath 0
