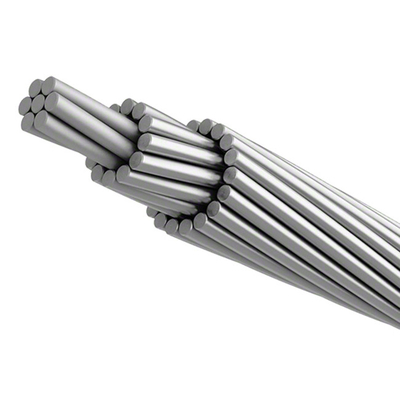

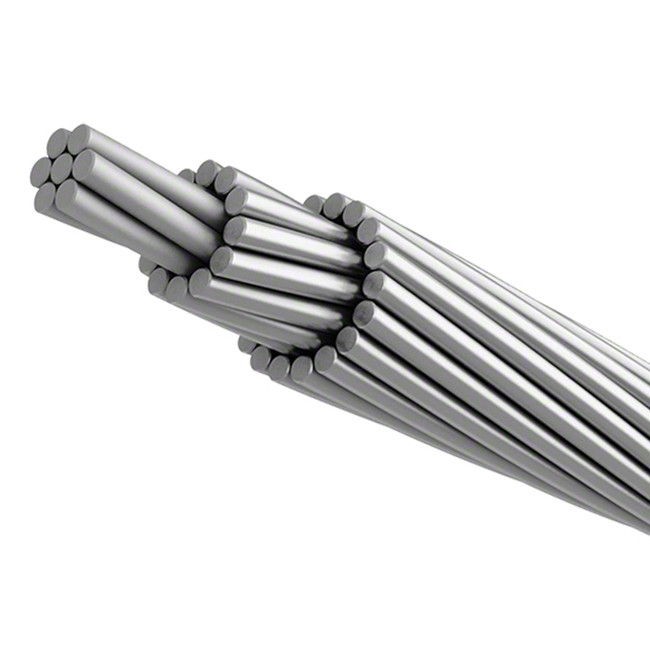

336.4 Mcm 477 Mcm Galvanized Acsr Panther Conductor Overhead Conductor

336.4 Mcm 477 Mcm Galvanized Acsr Panther Conductor Overhead Conductor

336.4 Mcm 477 Mcm Galvanized Acsr Panther Conductor Overhead Conductor
336.4 Mcm 477 Mcm Galvanized Acsr Panther Conductor Overhead Conductor
336.4 Mcm 477 Mcm Galvanized Acsr Panther Conductor Overhead Conductor
Product Details:
Place of Origin: LUOYANG,CHINA
Brand Name: Sanwu
Certification: CCC,ISO
Model Number: AS 3607
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: Negociable
Packaging Details: New wooden drum, Reel, Circle or according to customer's request.
Delivery Time: 1-15days
Payment Terms: T/T, L/C
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Product Name: Acsr Panther Conductor Material: Aluminum Conductor Steel Reinforced (GZ) Zinc-coated ACSR
Conductor: Aluminum Steel Wire: Galvanized
Size: QUINCE,RAISIN,SUPER SULTANA,SULTANA,Almond, Apricot,APPPLE,,Banana, CHERRY,GRAPE, LEMON Standard: AS 3607 Australia Standard
High Light:

336.4 mcm acsr panther conductor

,

galvanized acsr panther conductor

,

477 mcm panther acsr conductor

336.4 MCM 477 MCM Galvanized Acsr Panther Conductor Overhead Conductor



1. APPLICATION



1. ACSR cable are available in a range of steel contents
ranging from 6% to 40% for additional strength.
2. High mechanical strength, Good conductivity,L .arge
transmission capacity.
3. Corrosion resistance ,High temperature resistance,Unit
volume light.
4. Easy to set up, Simple structure, Convenient installation
and maintenance.





2. STANDARDS

AS 3607

ACSR/GZ – Aluminium conductors, galvanised steel reinforced



3. CONDUCTORS



(1) Steel part: Zinc- coated steel wires, one wire or multi-wires concentric stranded
(2) Aluminium part: Hard drawn aluminium wires, concentric stranded
(3) Grease part (optional): Neutral grease, used in coast and in corrosive regions. Conductor with grease application are called ACSR/Lz, ACSR/Mz, ACSR/Hz, ACKP or AsKP and sometime also use ACSR.



Code Name Stranding and wire diameter no/mm Nominal overall diameter Cross- sectional area Approximate mass Breaking load Modulus
of elasticity
Coefficient of linear expansion DC
resist. at 20°C
AC
resist. at 50Hz 75°C
Aluminium Steel mm mm2 kg/km kN GPa x 10–6/°C Ω/km Ω/km
Almond 6/2.50 1/2.50 7.5 34.4 119 10.5 83 19.3 0.975 1.31
Apricot 6/2.75 1/2.75 8.3 41.6 144 12.6 83 19.3 0.805 1.08
Apple 6/3.00 1/3.00 9.0 49.5 171 14.9 83 19.3 0.677 0.91
Banana 6/3.75 1/3.75 11.3 77.3 268 22.7 83 19.3 0.433 0.582
Cherry 6/4.75 7/1.60 14.3 120 402 33.4 80 19.9 0.271 0.367
Grape 30/2.50 7/2.50 17.5 182 677 63.5 88 18.4 0.196 0.263
Lemon 30/3.00 7/3.00 21.0 262 973 90.4 88 18.4 0.136 0.167
Lychee 30/3.25 7/3.25 22.8 307 1140 105 88 18.4 0.116 0.142
Lime 30/3.50 7/3.50 24.5 356 1320 122 88 18.4 0.100 0.123
Mango 54/3.00 7/3.00 27.0 431 1440 119 78 19.9 0.0758 0.0955
Orange 54/3.25 7/3.25 29.3 506 1690 137 78 19.9 0.0646 0.0816
Olive 54/3.50 7/3.50 31.5 587 1960 159 78 19.9 0.0557 0.0705
Pawpaw 54/3.75 19/2.25 33.8 672 2240 178 77 20.0 0.0485 0.0615
Quince 3/1.75 4/1.75 5.3 16.8 95 12.7 136 13.9 3.25 4.37
Raisin 3/2.50 4/2.50 7.5 34.4 195 24.4 136 13.9 1.59 2.14
Sultana 4/3.00 3/3.00 9.0 49.5 243 28.3 119 15.2 0.897 1.21
Walnut 4/3.75 3/3.75 11.3 77.3 380 43.9 119 15.2 0.573 0.77



4. FAQ
(1).Are you a manufacturer or trading company?
We are a leading and profesional manufacturer of cable and wire, including: LV power cable, ABC, bare conductor, building wire, control cable and so on, with high quality.
(2). Is it sample available?
For stock product, of course, the sample is available for free. The sample will be released against the freight, and freight collect is also acceptable.

(3). Can we represent your SANWU CABLE to bid?
Highly welcome! We are looking for agency or partner in your local to promote our products, develop business, accordingly, we will provide nice condictions to make you get rich return.

(4). How about the package?
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.



5. Available Samples



336.4 Mcm 477 Mcm Galvanized Acsr Panther Conductor Overhead Conductor 0

6. Factory Cable making machines

336.4 Mcm 477 Mcm Galvanized Acsr Panther Conductor Overhead Conductor 1



7. Packing&Delivery

336.4 Mcm 477 Mcm Galvanized Acsr Panther Conductor Overhead Conductor 2

336.4 Mcm 477 Mcm Galvanized Acsr Panther Conductor Overhead Conductor 3
