8.0mm 9.5mm 12mm Aluminium Wire Rod For Electrical Conductor

8.0mm 9.5mm 12mm Aluminium Wire Rod For Electrical Conductor

8.0mm 9.5mm 12mm Aluminium Wire Rod For Electrical Conductor
8.0mm 9.5mm 12mm Aluminium Wire Rod For Electrical Conductor
8.0mm 9.5mm 12mm Aluminium Wire Rod For Electrical Conductor
Product Details:
Place of Origin: Luoyang,China
Brand Name: Luoyang Sanwu
Certification: IS09001, IS014001,OHSAS18001
Model Number: 1350/1370/1A60/6201/6101/8030/1120
Payment & Shipping Terms:
Minimum Order Quantity: 25Tons
Price: Negotiable
Packaging Details: New export standard wooden pallet, reel, or according to customers' request
Delivery Time: 7-15work days
Payment Terms: T/T
Supply Ability: 10000 tons per month
Contact Now
Detailed Product Description
Name: Aluminium Wire Rod Grade: EC
Application: ACSR,AAC,AAAC,ACAR Capacity: 300tons Per Day
Diameter: 8.0mm.9.5mm,12mm
High Light:

8.0mm aluminium wire rod

,

acsr aluminium wire rod

,

9.5mm aluminium alloy wire rod

8.0mm 9.5mm 12mm Aluminium Wire Rod For Electrical Conductor

Luoyang Sanwu Cable Co., Ltd. is founded in the Sept. 2016 with registered fund 106 million RMB which is the subsidiary of Luoyang Asian Sun Industrial Group Co., Ltd. We can produce all kinds of high and low voltage electric wire and cables, and have been one of the new technology development enterprise made scientific, industry, trading as a whole. Main products include power cables, PV cable, control cables, branching cables, aerial cables, Most important thing is that we also produce the raw material-aluminium wire rod coperated with Ls Group etc. Seven big series, more than 300 varieties, nearly. 2000. Specification

Item
Aluminum Wire
Standard
GB/T3191-1998,ASTM B221M-05A,JIS H4040-2006,etc
Material
1050,1060,2A14,3003,3103,4032,5454,5754,5056,5082,5086,6061,6060,6082,7075,7475
Size
Diameter
0.1-20mm
Length Width
as requirement
Surface
Bright,polished,hair line,brush,embossed,etching,color coated,painted,etc
Trade terms
Price term
Ex-Work,FOB,CNF,CFR,CIF
Payment Term
T/T,L/C,western Union





6mm 7mm 8mm 9.5mm 1350/1370/1A60/1r50 Aluminum Wire Rod
6mm 7mm 8mm 9.5mm 1350/1370/1A60/1r50 Aluminum Wire Rod

Product Description

Aluminum Rod
Aluminum rod is mainly used for processing wire and cable, by drawing process, the wire is drawn into a single wire of different diameters, then s
tranded composite cable conductor. Aluminum rods are made by melting aluminum ingots, the liquid aluminum flows out in a certain direction, and solidified into aluminum rods.
Chem ical Com ponents (%)
Type Si Fe Cu Mn Mg Cr Ni Zn   Ti Zr Other Al
per Toal

1350

0.1

0.4

0.05

0.01

-

0.01

-

0.05
0.03 Ga, 0.05B
0.02 V+Ti

-

-

0.03

0.1

99.5

1370

0.1

0.25

0.02

0.01

0.02

0.01

-

0.04
0.03 Ga, 0.02B
0.02 V+Ti

-

-

0.02

0.1

99.7
1A60 0.1 0.25 0.01 - - - - - - 0.02 R+Ti
+Mn+Gr
- 0.03 - 99.6

Conductivity and Strength Tens ile

Type
  Conductivity (20ºC)/O·m <= Conductivity (20ºC)/%IACS >= Strength Tens ile Mpa Elongation/% (200m m gauge length) >=

1350
0 27.9 61.8 60-95 25
H12 28.03 61.5 85-115 12
H13 28.08 61.4 105-135 10
H14 28.12 61.3 120-150 8


1370
0 27.9 61.8 60-95 25
H12 28.01 61.55 85-115 11
H13 28.03 61.5 105-135 8
H14 28.05 61.47 115-150 5
H16 28.08 61.4 130-160 5


1A60
0 27.55 62.68 60-90 25
H12 27.85 61.91 80-110 13
H13 28.01 61.55 95-115 11
H14 28.01 61.55 110-130 8
H16 28.01 61.55 120-150 5

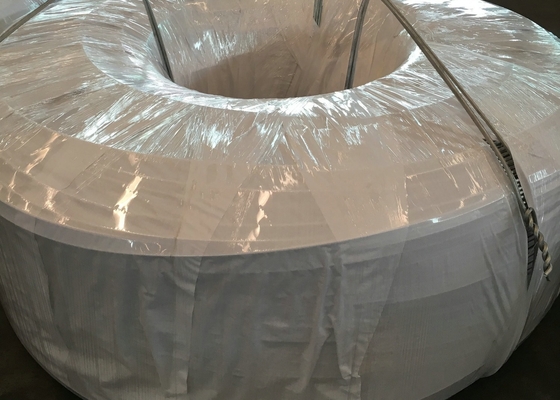

Product Pictures:
6mm 7mm 8mm 9.5mm 1350/1370/1A60/1r50 Aluminum Wire Rod
6mm 7mm 8mm 9.5mm 1350/1370/1A60/1r50 Aluminum Wire Rod
6mm 7mm 8mm 9.5mm 1350/1370/1A60/1r50 Aluminum Wire Rod



More Products:
6mm 7mm 8mm 9.5mm 1350/1370/1A60/1r50 Aluminum Wire Rod
8.0mm 9.5mm 12mm Aluminium Wire Rod For Electrical Conductor 6 Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C
