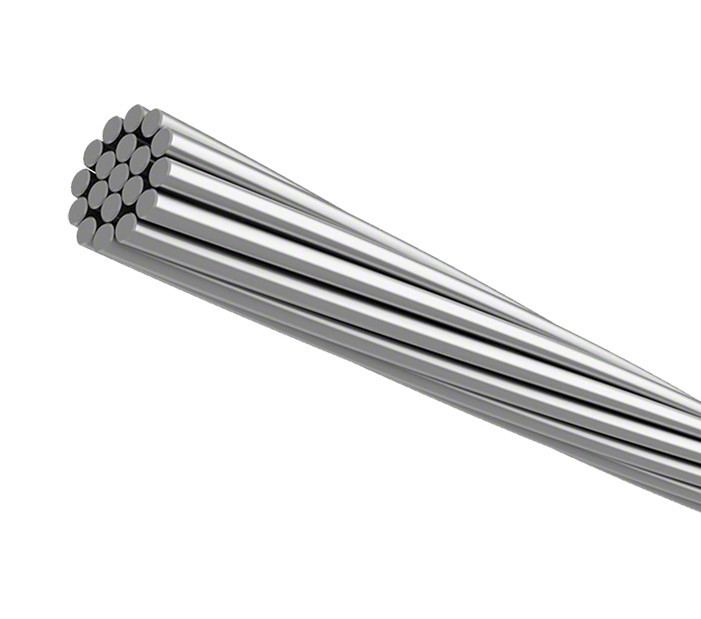

1350 H19 Aac Gnat Conductor For 33kv Distribution Line

1350 H19 Aac Gnat Conductor For 33kv Distribution Line

1350 H19 Aac Gnat Conductor For 33kv Distribution Line
1350 H19 Aac Gnat Conductor For 33kv Distribution Line
1350 H19 Aac Gnat Conductor For 33kv Distribution Line
Product Details:
Place of Origin: Henan,China
Brand Name: Sanwu
Certification: ISO SGS
Model Number: All Aluminium Conductor
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: New wooden drum, Reel, Circle or according to customer's request
Delivery Time: two weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Name: Aac Gnat Conductor Standard: BS IEC ASTM DIN,AZS Standard
Voltage: Under 330kv Application: 33kV Distribution Line
Port: Qingdao / Nimgbo / Tianjin Material: Aluminum 1350 H19
High Light:

1350 h19 aac gnat conductor

,

33kv distribution line aac gnat conductor

,

1350 h19 aac conductor

1350-H19 Aac Gnat Conductor 33kV Distribution Line



Conductor
This bare concentric-lay-stranded conductor, made from round aluminum alloy 6201-T81 wires, is
constructed with a central core surrounded by one or more layers of helically laid wires.


Application
On aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance
than the one produced by the ACSR.


Aac Wasp Conductor Specification

Code Name Area Stranding and wire diameter Approx. Overall diameter Weight Nominal breaking load Nom. DC resistance at 20 deg.
Nominal Actual
mm2 mm2 mm mm kg/km kN ohm/km
MIDGE 22 23.33 7/2.06 6.2 64 3.99 1.227
APHIS 25 26.4 3/3.35 7.2 73 4.11 1.081
GNAT 25 26.8 7/2.21 6.6 73 4.59 1.066
WEEVIL 30 31.6 3/3.66 7.9 86 4.86 0.9082
MOSQUITO 35 37.0 7/2.59 7.8 101 6.03 0.7762

LADYBIRD 40 42.8 7/2.79 8.4 117 6.87 0.6689
ANT 50 52.83 7/3.10 9.3 145 8.28 0.5419
FLY 60 63.55 7/3.40 10.2 174 9.90 0.4505
BLUEBOTTLE 70 73.7 7/3.66 11.0 202 11.34 0.3881
EARWING 75 78.5 7/3.78 11.4 215 11.94 0.3644

GRASSHOPPER 80 84.1 7/3.91 11.7 230 12.78 0.3406
CLEGG 90 95.6 7/4.17 12.5 262 14.53 0.2995
WASP 100 106.0 7/4.39 13.2 290 16.00 0.2702
BEETLE 100 106.6 19/2.67 13.4 293 17.42 0.2704
BEE 125 132.0 7/4.90 14.7 361 19.94 0.2169

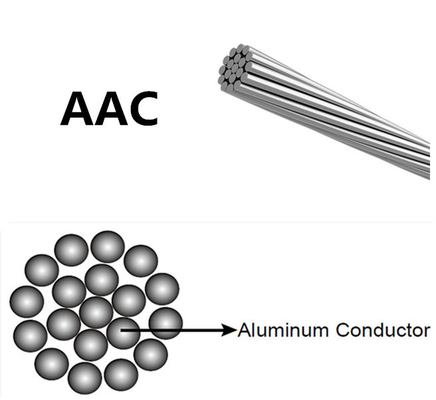

CONSTRUCTION:



Aluminum 1350-H19 wires, concentrically stranded.

The most commonly used stranding consists of 7, 19, 37, 61 and 91 wires.

Bare concentric-lay-stranded aluminum wires constructed with a straight round central aluminum wire surrounded by one or more layers of helically laid aluminum wires.
In all constructions, the successive layers shall have opposite directions of lay, the outermost layer being right-handed.



Our Workshop & Testing Lab
ASTM Standard Electric Cable ACSR/AAC/AAAC/ABC Cable Bare Conductor Aluminum ConductorASTM Standard Electric Cable ACSR/AAC/AAAC/ABC Cable Bare Conductor Aluminum Conductor



Packing & Delivery
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;
20GP, 40GP and 40HQ containers
ASTM Standard Electric Cable ACSR/AAC/AAAC/ABC Cable Bare Conductor Aluminum Conductor



1350 H19 Aac Gnat Conductor For 33kv Distribution Line 3



FAQ:
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
