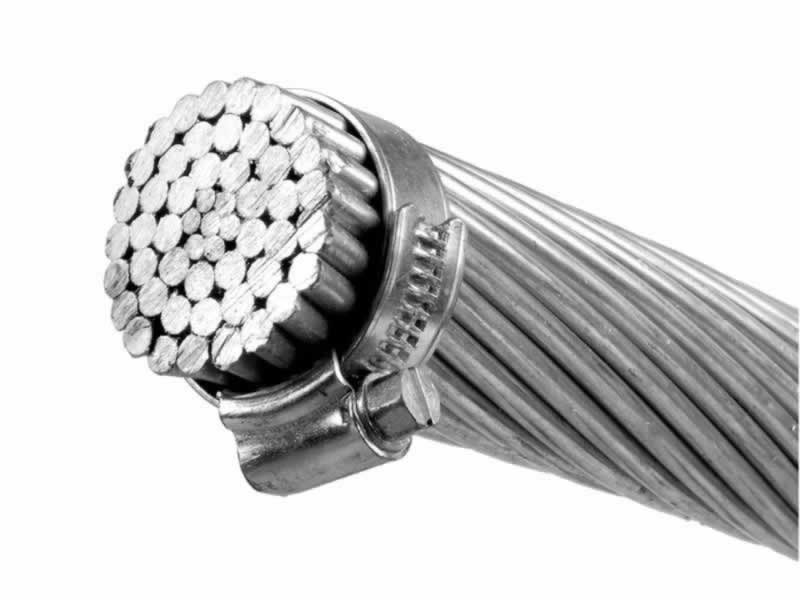

Bare All Aluminium Conductor For Overhead Power Cable

Bare All Aluminium Conductor For Overhead Power Cable

Bare All Aluminium Conductor For Overhead Power Cable
Bare All Aluminium Conductor For Overhead Power Cable
Bare All Aluminium Conductor For Overhead Power Cable
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: AAC
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: New wooden drum, Reel, Circle or according to customer's request
Delivery Time: 1-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Product Name: Bare All Aluminium Conductor Voltage: HV
Application: Overhead Power Cable Standard: ASTM,BS,DIN,AS/NZS,IEC, CSA
Sample: Free Cross Section Area:: 10-800mm2
Type Of Conductor:: Stranded
High Light:

bare all aluminium conductor

,

overhead power cable all aluminium conductor

,

overhead power cable aac conductor

Bare All Aluminium Conductor For Overhead Power Cable



The bare conductor:AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.

Construction: Bare aluminum alloy 1350-H19 wires, concentrically stranded around a Class A galvanized coated steel core wire.

ACSR consists of a galvanized steel core of 1 wire, 7 wires, 19 wires etc. surrounded by concentric layers of aluminum wire.



Specification of All Aluminium Conductor



Nominal

area

Stranding &wire diameter Approx Overall diameter Breaking Load DC Resistance at 20

Approx.

Weight

mm mm N Ω/km Kg/km
16 7/1.70 5.10 2840 1.802 43.5
25 7/2.15 6.45 4355 1.127 69.6
35 7/2.50 7.50 5760 0.8332 94.1
50 7/3.00 9.00 7930 0.5786 135..5
70 7/3.60 10.80 10950 0.4018 195.1
95 7/4.16 12.48 14450 0.3009 260.5
120 19/2.85 14.25 19420 0.2373 333.5
150 19/3.15 15.75 23310 0.1943 407.4
185 19/3.50 17.5 28440 0.1574 503.0
210 19/3.75 18.75 32260 0.1371 577.4
240 19/4.00 20.00 36260 0.1205 656.9
300 37/3.20 22.40 46850 0.09689 820.4
400 37/3.70 25.90 61150 0.07247 1097
500 37/4.16 29.12 76370 0.05733 1387
630 61/3.63 32.67 91940 0.04577 1744
800 61/4.10 36.90 115900 0.03588 2225



Bare All Aluminium Conductor For Overhead Power Cable 0

Bare All Aluminium Conductor For Overhead Power Cable 1
