LUOYANG SANWU CABLE GROUP CO.,LTD.
Professional Cable and Conductor Manufacturer
 |
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Model Number: | AAAC |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Non returnable wooden / steel reels |
| Delivery Time: | 1-15days |
| Supply Ability: | 200 tons per day |
| Certification: | TUV | Name: | Aaac Conductor |
|---|---|---|---|
| Application: | Overhead Transmission Line | Rates: | 0.6/1kv |
| Size: | 55 Sq Mm | Type: | LV |
| High Light: | tuv aluminium alloy conductor,aluminium alloy conductor aaac,alloy conductor for overhead |
||

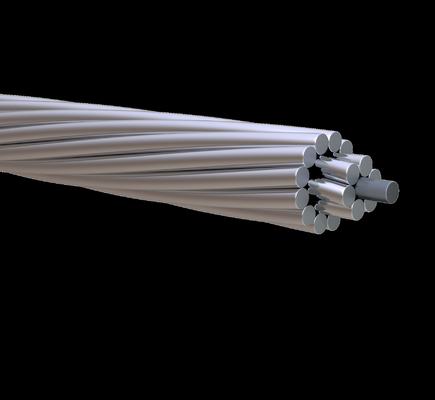

0.6/1kv 55 Sq Mm Aaac Conductor Price
Aaac Conductor have been widely used in power transmission lines with various voltage levels, and also used in power lines across great Rivers, plain,highland etc. The cables have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient and low cost installation and maintenance, large transmission capacity.
1. Specifications
Conductor(AAAC) bear conductor meets or exceeds the following ASTM Specifications:
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purpose.
B-399 Concentrical-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
2. Product Performance
(1). The electrical performance of AAAC is indicated in DCΩ /km(20oC). The resistivity of aluminum alloy wire for stranded wires is: LHA1: not greater than 32.840nΩ . m LHA2: not greater than 32.530nΩ . m
(2). The rated tensile strength of AAAC is denoted with the result of total cross-section areas of all aluminum alloy conductors multiplied by min.
Tensile strength of corresponding size specified in the standard for aluminum alloy wire.
The technical parameter
|
Code Number |
Stranding&wire diameter |
Approx Overall diameter |
Nominal |
Approx. |
Breaking Load |
DC Resistance at 20 |
|
area |
Weight |
|||||
|
mm |
mm |
mm 2 |
Kg/km |
KN |
Ohm/km |
|
|
16 |
7/1.83 |
5.49 |
18.4 |
50.4 |
5.43 |
1.7896 |
|
25 |
7/2.29 |
6.86 |
28.8 |
78.7 |
8.49 |
1.1453 |
|
40 |
7/2.89 |
8.68 |
46 |
125.9 |
13.58 |
0.7158 |
|
63 |
7/3.63 |
10.9 |
72.5 |
198.3 |
21.39 |
0.4545 |
|
100 |
19/2.78 |
13.9 |
115 |
316.3 |
33.95 |
0.2877 |
|
125 |
19/3.10 |
15.5 |
144 |
395.4 |
42.44 |
0.2302 |
|
160 |
19/3.51 |
17.6 |
184 |
506.1 |
54.32 |
0.1798 |
|
200 |
19/3.93 |
19.6 |
230 |
632.7 |
67.91 |
0.1439 |
|
250 |
19/4.39 |
22 |
288 |
790.8 |
84.88 |
0.1151 |
|
315 |
37/3.53 |
24.7 |
363 |
998.9 |
106.95 |
0.0916 |
|
400 |
37/3.98 |
27.9 |
460 |
1268.4 |
135.81 |
0.0721 |
|
450 |
37/4.22 |
29.6 |
518 |
1426.9 |
152.79 |
0.0641 |
|
500 |
37/4.45 |
31.2 |
575 |
1585.5 |
169.76 |
0.0577 |
|
560 |
61/3.67 |
33 |
645 |
1778.4 |
190.14 |
0.0516 |
|
630 |
61/3.89 |
35 |
725 |
2000.7 |
213.9 |
0.0458 |
|
710 |
61/4.13 |
37.2 |
817 |
2254.8 |
241.07 |
0.0407 |
|
800 |
61/4.38 |
39.5 |
921 |
2540.6 |
271.62 |
0.0361 |
|
900 |
91/3.81 |
41.8 |
1036 |
2861.1 |
305.58 |
0.0321 |
|
1000 |
91/4.01 |
44.1 |
1151 |
3179 |
339.53 |
0.0289 |
|
1120 |
91/4.25 |
46.7 |
1289 |
3560.5 |
380.27 |
0.0258 |
|
1250 |
91/4.49 |
49.4 |
1439 |
3973.7 |
424.41 |
0.0231 |
Luoyang Sanwu Cable Co., Ltd., with registered capital of 100 million RMB, is a high-tech development company for scientific research, industry producing and trading , offering a diverse selection of quality wires and cables to industrial customers in 33 countries worldwide. The leading products are ACSR, overhead conductor, AAAC, AAC, power cable, BLXY, home-used wire and so on.
Sanwu cable owns variously advanced equipment and large quantities of high skilled professionals. With complete management system, advanced production process, strict testing procedure and reliable product quality, we have successively got IS09001, IS014001,OHSAS18001,TUV Certificate, CCC(China Compulsory Certification), the national industrial production license and so on.
In terms of quality, It is highly controlled by our company to ensure that all the products we sell meet your requirements and give you reassurance with excellent after-sale service.In terms of service, we are focusing on your need, we concern what you concern and request what you request to provide a more satisfied service.
FAQ:
Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.
Q:Have you ever supplied cables to our country ?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
