600/1000 Volts Abc Conductor Cable Single Phase And Three Phase

600/1000 Volts Abc Conductor Cable Single Phase And Three Phase

  • 600/1000 Volts Abc Conductor Cable Single Phase And Three Phase
600/1000 Volts Abc Conductor Cable Single Phase And Three Phase
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO
Model Number: ABC cable
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiate
Packaging Details: wooden drums
Delivery Time: 2weeks
Payment Terms: T/T, L/C
Supply Ability: 100 tons per day
Contact Now
Detailed Product Description
Conductor: Aerial Bundled Cable Insulation: PVC/PE/XLPE
Application: Service Cables Voltage: 0.6/1kV
Phase: Single-Phase And Three-Phase
High Light:

1000 volts abc conductor cable


three phase abc conductor cable


600 volts abc cable

600/1000 Volts Aerial Bundled Cable Single-Phase And Three-Phase


Aerial Bundled Cable Application:

Use in aerial bundled conductor (ABC) systems for city power grid transmission line.
Operating voltage up to 600/1000 volts.
Main for overhead single-phase and three-phase electricity distribution and other purposes.
Stable working temperature -10°C to 80°C

Aerial Bundled Cable Features:

1. Economical - Good electricity property and cheaper than cooper cables.
2. Flexible - easy to install and work with distributions and other applications.
3. Safe - prevent electric short circuit and potential risk of fire.
4. Durable - anti UV Radiation and moisture, Corrosion Resistance.
5. Aesthetically pleasing - Good finishing is guaranteed.


Product Name Low voltage xlpe insulated cables bare aluminium conductor AAC / ABC cable
Coductor Copper / Aluminum, based on client's requirements
Construction Bare copper wire
Insulation jacket
PVC sheath
Colors Assorted upon request
Voltage 600-1000V, 1KV-35KV
Application These cables are used for aerial cable transmitting power on long spans or under very server mechanical conditions.
Specifications CCC ISO certificated
Strict QC
Prompt delivery
OEM/ODM Available
Sample Free, freight charge prepaid or negotiation
Payment Term T/T, L/C
MOQ 100 Kilometer/Kilometers
Port Of Loading Ningbo
Delivery Detail 10days after confirming the order
Code Word Phase conductor Bare Neutral Messenger Nominal Lay Length Weight Per 1000ft. (lbs.) Allowable Ampacities+




Insul. Thick.





Rated Strength


AAC Neutral-messenger
Pekingese 6 1 45 6 7 563 10.36 61 61 85 70
Collie 6 7 45 6 7 563 10.36 64 64 85 70
Dachshund 4 1 45 4 7 881 10.36 92 92 115 90
Spaniel 4 7 45 4 7 881 10.36 96 96 115 90
Doberman 2 7 45 2 7 1350 14.88 147 147 150 120
Malemute 1/0 9 60 1/0 7 1990 14.88 234 234 205

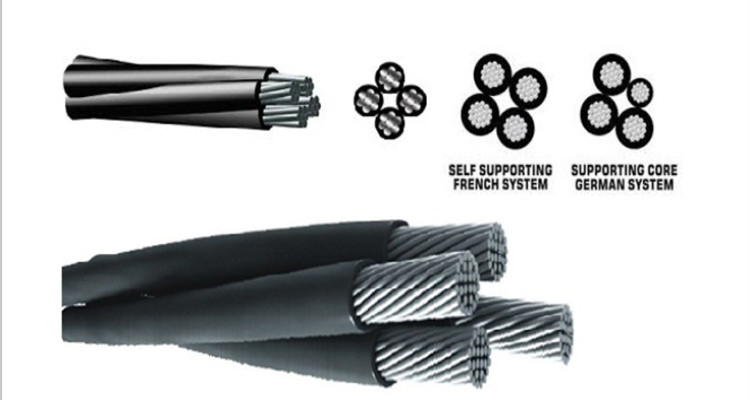

Aerial Bundled Conductor (ABC) Cables


Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system.

It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.

Caledonian LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.

This over-head cable provides reinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140. It is not flame retardant. But this could be if requested change to a flame retardant cable.


Luoyang Sanwu Cable CO.,Ltd was established in September 2016 ,with registered capital of 5 million RMB and more than 200 employees.Sanwu is a wire and cable manufacturing enterprise integrating with R&D, production and sales. The transportation of manufacturing base is convenient ,which is located in Yichuan Country Industrial Zone, adjacent to the Luoyang southwest highway,Zhengzhou-Shaolinsi-Luoyang high way .
The company has obtained national product safety certification, 3C certification, 3 system certification, German TUV certification and international standard product mark certification, etc. Now Sanwu has three production workshops and more than 40 production lines. We mainly produce and manage electric round aluminum rods, overhead wires, power cables, wires and cables for electrical equipment, and special cables. Sanwu products are widely used in electric power, transportation, new energy, petroleum and petrochemical, national defense, and urban construction. In addition, Leading products overhead conductors are sold well and trusted by users all over the world .

       600/1000 Volts Abc Conductor Cable Single Phase And Three Phase 0
