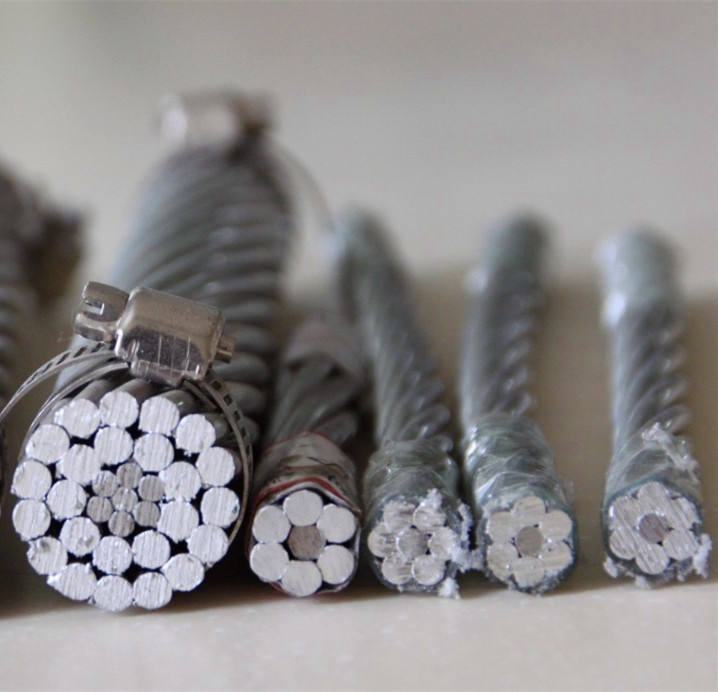

1000mm2 Overhead Aluminium Conductor Steel Reinforced Greely Aerial Drop Conductor

Overhead Aluminium Conductor Steel Reinforced GREELY Aerial Drop Conductor

ⅠApplications

Aluminium Conductor Steel Reinforced is used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

ACSR:Aluminum Conductor Steel Reinforced BS215

Ⅱ Standards

We could produce the cable according to many standards:ASTM ,BS ,IEC,DIN,

JIS and so on,

We will do our best to meet your requirements. the conductor could with or without grease.

Ⅲ Type

1. AAC : All Aluminum Conductor

2. ACSR:Aluminum Conductor Steel Reinforced

3. AAAC:All Alloy Aluminum Conductor

4. AACSR: Aluminum Alloy Conductor Steel Reinforced

5. ACAR: Aluminum Conductor Alloy Reinforced

6. ACSR/AW:Aluminum Conductor Aluminum Clad Steel Reinforced

Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.
