Place of Origin: | Henan |
Brand Name: | Sanwu |
Certification: | ISO CCC |
Model Number: | ACAR Conductor |
Minimum Order Quantity: | 1000M |
---|---|
Price: | USD 0.2-20 per meter |
Packaging Details: | wooden drums |
Delivery Time: | 1-15days |
Payment Terms: | L/C, T/T |
Supply Ability: | 200 tons per day |
Conductor: | Aluminum | Core: | Aluminium Alloy |
---|---|---|---|
Color: | Silver | Insulation: | Bare |
Rated Voltage: | 0.6-1kv | Application: | Power Distribution Lines |
Service Life: | 70 Years | Warranty: | 1 Year |
Highlight: | acar conductor 0.6kv,Aerial Power Distribution Lines acar conductor,aluminium conductor alloy reinforced 1kv |

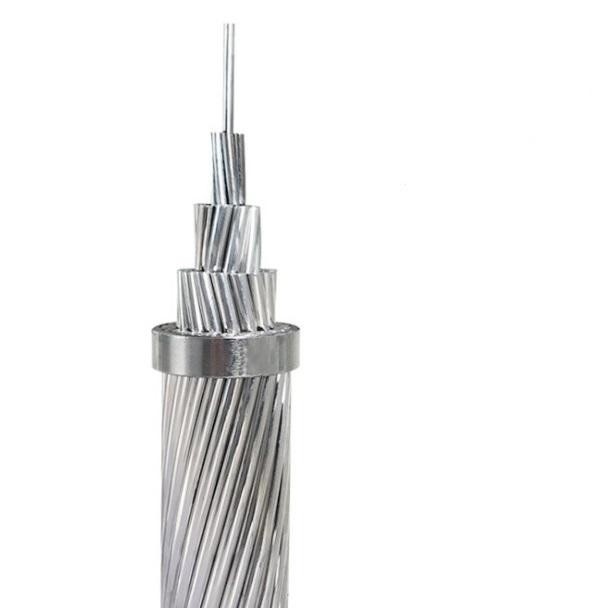

0.6-1kv Aluminum Alloy ACAR Conductor For Aerial Power Distribution Lines
utilized as major and secondary distribution cables as well as bare overhead transmission cables. Where strength and ampacity are important factors in line design, ACAR can be used because of its good strength-to-weight ratio; for a given weight, ACAR gives more strength and ampacity than ACSR.
Product Name | Aluminum Conductor Alloy Reinforced (ACAR) |
Conductor | Aluminum/Copper |
Construction | Aluminum Stranded & Aluminum Alloy Reinforce |
Colors | Assorted upon request |
Voltage | 600-1000V, 1KV-35KV |
Application | Used as bare overhead conductor for power distribution lines |
Standards | GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request |
1.Standard
ASTM B524 ,B 230, B 398, IEC61089, etc Application
2.Construction
ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer
3.Features
1. ACAR offers excellent balance mechanical and electrical properties.
2.It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.
3.It is a compromise choice between AAC,ACSR,and AAAC.
4.It has 1350 designates grade of pure aluminium.
5. It has 6201 designates aluminium alloy grade.
4.Part of ACAR(6201) conductors of ASTM sizes.
Size Kcmil | Stranding No.& Dia.(In.) | Cross Sectional Area(Square In.) | Nominal Conductor Dia. (In.) |
Nominal weight (Lbs/1000FT) |
Rated Strength ( Lbs) |
|||
1350 | 6201 | 1350 | 6201 | Total | ||||
503.6 | 15*0.1628 | 4*0.1628 | 0.3122 | 0.0833 | 0.3955 | 0.814 | 473 | 10500 |
587.2 | 15*0.1758 | 4*0.1758 | 0.3644 | 0.0971 | 0.4612 | 0.879 | 551 | 12200 |
649.5 | 18*0.1325 | 19*0.1325 | 0.2482 | 0.2620 | 0.5102 | 0.927 | 608 | 16600 |
653.1 | 12*0.1854 | 7*0.1854 | 0.3240 | 0.1890 | 0.5130 | 0.927 | 612 | 15400 |
739.8 | 18*0.1414 | 19*0.1414 | 0.2827 | 0.2983 | 0.5810 | 0.990 | 693 | 18800 |
853.7 | 30*0.1519 | 7*0.1519 | 0.5437 | 0.1268 | 0.6705 | 1.063 | 801 | 17500 |
853.7 | 24*0.1519 | 13*0.1519 | 0.4349 | 0.2356 | 0.6705 | 1.063 | 800 | 19300 |
927.2 | 24*0.1583 | 13*0.1583 | 0.4723 | 0.2559 | 0.7282 | 1.108 | 869 | 20900 |
5.Packaging and Delivery:
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
Contact Person: Miranda
Tel: +8615837987764
