LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | AAAC-005 |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New wooden drum, Reel, Circle or according to customer's request |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 tons per day |
| Material: | Hard Drawn Aluminium | Keywords: | AAC All Aluminium Conductor |
|---|---|---|---|
| Usage: | Overhead Transmission Line | Certification: | ASTM B, BS, DIN, IEC Certification |
| Voltage: | Up To 10KV | No. Of Wires: | 37 |
| High Light: | Hard Drawn all aluminum conductor,Overhead Transmission Line all aluminum conductor,High Current Carrying Capacity aac conductor |
||

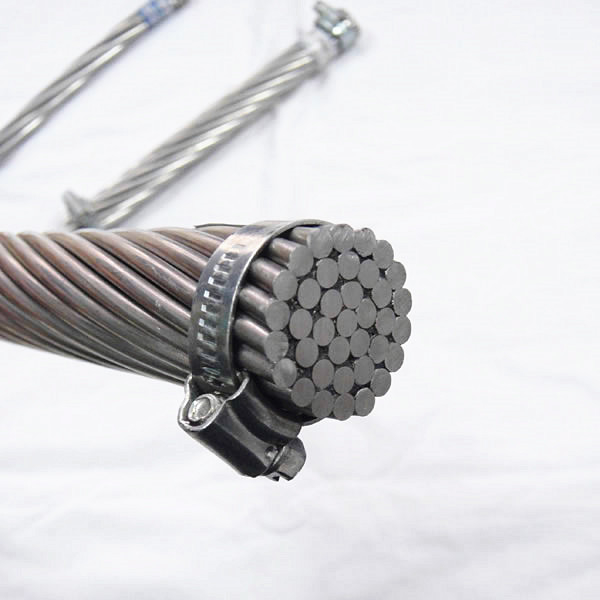

Hard Drawn Aluminium AAC All Aluminium Conductor High Current Carrying Capacity
Description:
Hard drawn aluminum wires twisted into one or more strands make create an all-aluminum conductor, or AAC. The minimum conductivity of the EC grade alloy conductor is 61.2% IACS.
High current carrying capacity and suitability for low- and medium-voltage lines in metropolitan areas are among its features. outstanding ability to withstand rust
Perfect for usage in places with low humidity and low corrosion
|
Products |
ASTM BS All Aluminium Conductor For Overhead Transmission Line |
|
Type |
Tarantula Bare Conductor 37 / 5.23mm |
|
Material |
Aluminum |
|
Power Capacity |
10~1000KV |
|
No.of wires |
37 |
|
Galvanization |
No |
|
Packing |
New wooden drum, Reel, Circle or according to customer's request |
|
payment term |
L/C, T/T, Western Union, MoneyGram |
|
Life Period |
More than 25 years, it is according to installing environment |
|
Certificates |
ISO,CCC, TUV, CE |
Construction
All Aluminum-Alloy Conductors (AAAC) is a concentric-lay-stranded conductor consisting of aluminum-alloy wires available in both single layer and multi-layer constructions.
Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay- stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. The DC resistance at 20°C of the 6201-T81 conductors and of the standard ACSRs of the same diameter are approximately the same. Conductors of the 6201-T81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.
Features
High strength to weight ratio
Better sag characteristics
Improved electrical properties
Excellent resistance to corrosion
Application
Aluminium Conductors are predominantly used in Overhead Line applications and for primary and secondary power distribution.
All Aluminum-Alloy Conductors (AAAC) can be used in Medium, High and Extra-High voltage transmission lines. AAAC offers better sag performance due to the high strength-to-weight ratio provided by the aluminum-alloy. In addition, AAAC provides a higher corrosion resistance than ACSR conductors.
Specification
(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6)rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7)aluminimum conductor aluminimum alloy reinforced(ACAR)
