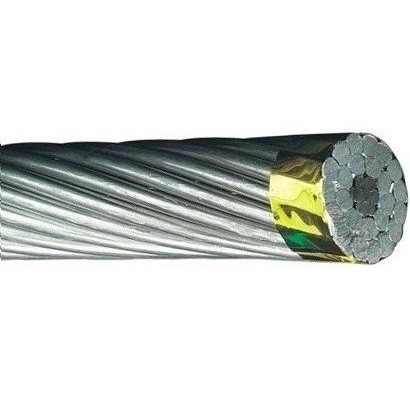

Rose Iris Pansy Poppy Aster Steel Reinforced Aluminium Conductor ACSR 0.5-1000mm2

Rose Iris Pansy Poppy Aster Steel Reinforced Aluminium Conductor ACSR 0.5-1000mm2

  • Rose Iris Pansy Poppy Aster Steel Reinforced Aluminium Conductor ACSR 0.5-1000mm2
Rose Iris Pansy Poppy Aster Steel Reinforced Aluminium Conductor ACSR 0.5-1000mm2
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: Acsr Drake Conductor
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: New Wooden drum, reel, circle, or according to customers request.
Delivery Time: 1-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Name: Steel Reinforced Aluminium Conductor ACSR Dimension: 0.5--1000mm2
Life Span: 30 Years Code: Rose Iris Pansy Poppy Aster
Voltage: MV / LV Standard: ASTM-B232 BS215-2
High Light:

LV aluminum conductor steel reinforced

,

0.5mm2 aluminum conductor steel reinforced

,

1000mm2 aluminium conductor steel reinforced

Rose Iris Pansy Poppy Aster Steel Reinforced Aluminium Conductor ACSR



Primary and secondary distribution cables, as well as bare overhead transmission, are made of ACSR conductor, also known as aluminum conductor steel reinforced. ACSR's strength to weight ratio and durability make it appropriate for use in all practical spans on transmission towers, wood poles, and other structures.

* The capacities displayed are for general use only, as per Article 310.15 of the National Electrical Code. * All drawings, designs, specifications, plans, and weight, size, and dimension details included in Houston Wire & Cable Company's technical or commercial documentation are for indicative purposes only and are not to be construed as legal obligations or as the company's endorsement. All information is liable to change at any time.



ACSR Conductor

Code Size (AWG/MCM) Number of Strands(mm) Weight(kg/km) Rated Strength(kg)
Rose 4 7*1.96 58.3 399
Iris 2 7*2.47 92.7 611
Pansy 1 7*2.78 117 740
Poppy 1/0 7*3.12 147.5 897
Aster 2/0 7*3.5 186 1375



Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.



Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.
