LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Luoyang,China |
| Brand Name: | Luoyang Sanwu |
| Certification: | IS09001, IS014001,OHSAS18001 |
| Model Number: | 1350/1370/6201/6101/8030/1120 |
| Minimum Order Quantity: | 20Tons |
|---|---|
| Price: | Negotiable |

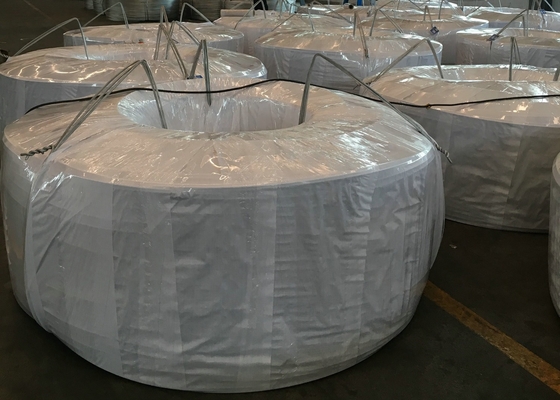

| Packaging Details: | Export standard wooden pallet, reel, or according to customers' request |
| Delivery Time: | 7-15work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 9000 tons per month |
| Grade: | EC | Application: | ACSR,AAC,AAAC,ACAR |
|---|---|---|---|
| Capacity: | 300tons Per Day | Diameter: | 8.0mm.9.5mm,12mm |

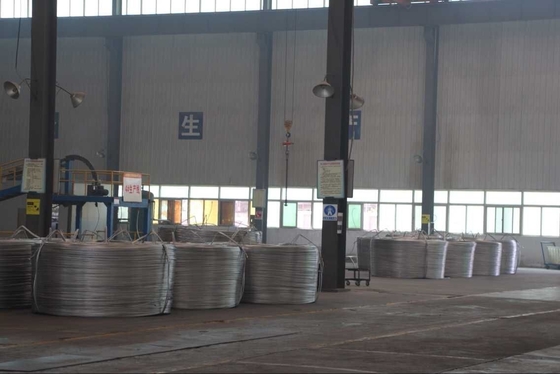

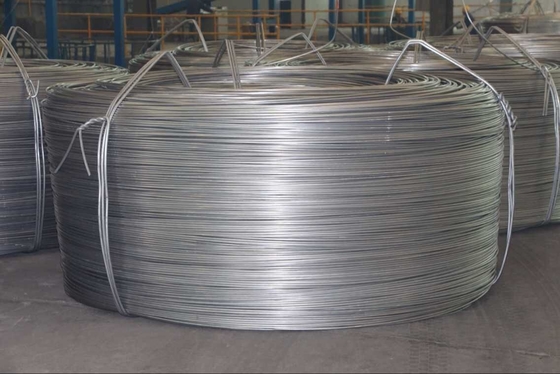

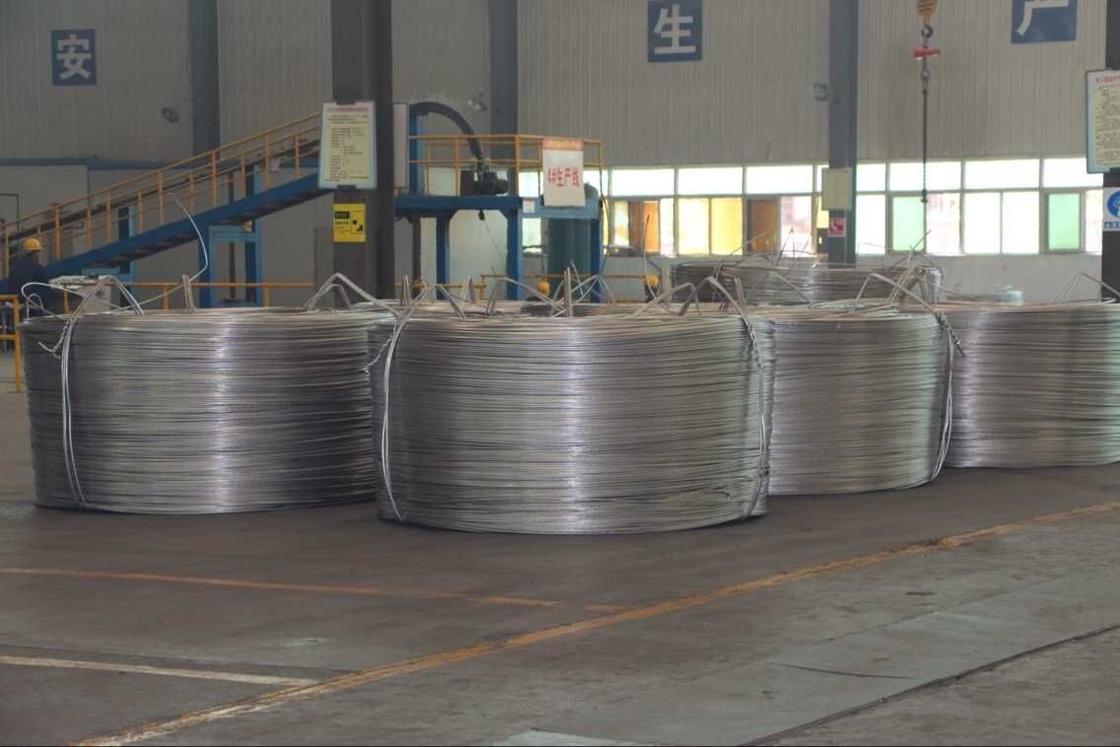

| Name: | Aluminum Wire Rod | ||
| High Light: | 9.5mm Aluminum Round Bar,H16 Aluminum Round Bar,Bright Polish Surface Aluminum Round Bar |
||
One kind of electrical wiring utilized in residential construction or homes with aluminum electrical conductors is aluminum building wiring. Another type of aluminum utilized for feeder lines or main distribution wiring is stranded aluminum cable. Because it is so dependable, aluminum is a material that is often used to supply electricity to homes.
Because aluminum wire has a higher conductivity to weight ratio than copper, it is also utilized in the wiring of power grids, such as local power distribution lines, overhead power transmission lines, and the power wiring of certain aircraft.
Quick Details
Specifications : ASTM B211, AMS 4120, AMS 4339, AMS-QQ-A-225/6, ASTM B221, AMS 4152, AMS 4164, AMS 4165, AMS-QQ-A-200/3
Standard : ASTM, ASME
Surface: Bright, Polish & Black
Aluminium Round Bar: Temper:O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length :1M-6M,12M & Required Length
Diameter : 6.00 mm to 600.0mm
Grade : 1060,2014,2023,2a12,2024,5083, 5086, 6061,6063,6082,7075,7a04
Purity |
Chemical Composition% |
|||||
AL Minimum |
Foreign Content,Maximum |
|||||
Si |
Fe |
Cu |
V+Cr+Mn+Ti |
Other |
||
Al99.60E |
99.6 |
0.08 |
0.20 |
0.005 |
0.01 |
0.3 |
Type |
Tensile Strength,N/mm² | Fracture Toughness%,Min | Electrical Resistance Ωmm²/m 20,Max |
| A | 60-80 | 25 | 0.02755 |
| A2 | 80-110 | 12 | 0.02785 |
| A4 | 95-115 | 10 | 0.02801 |
| A6 | 110-130 | 8 | 0.02801 |
| A8 | 120-150 | 6 | 0.02801 |
Temper |
Tensile Strength |
|
Ks j |
M pa |
|
1350-O |
8.5-14.0 |
59-97 |
1350-H12 and-H22 |
12.0-17.0 |
83-117 |
1350-H14 and-H24 |
15.0-20.0 |
103-138 |
1350-H16 and-H26 |
17.0-22.0 |
117-152 |
Temper |
Resistivity |
Equivalent Volume Conductivity,% |
Max.Ω.mm2/m |
IACS Min. |
|
1350-O |
0.027899 |
61.8 |
1350-H12 and-H22 |
0.028035 |
61.5 |
1350-H14 and-H24 |
0.028080 |
61.4 |
1350-H16 and-H26 |
0.028126 |
61.3 |
