Power Distribution Aluminium Wire Rod Residential Construction Cable

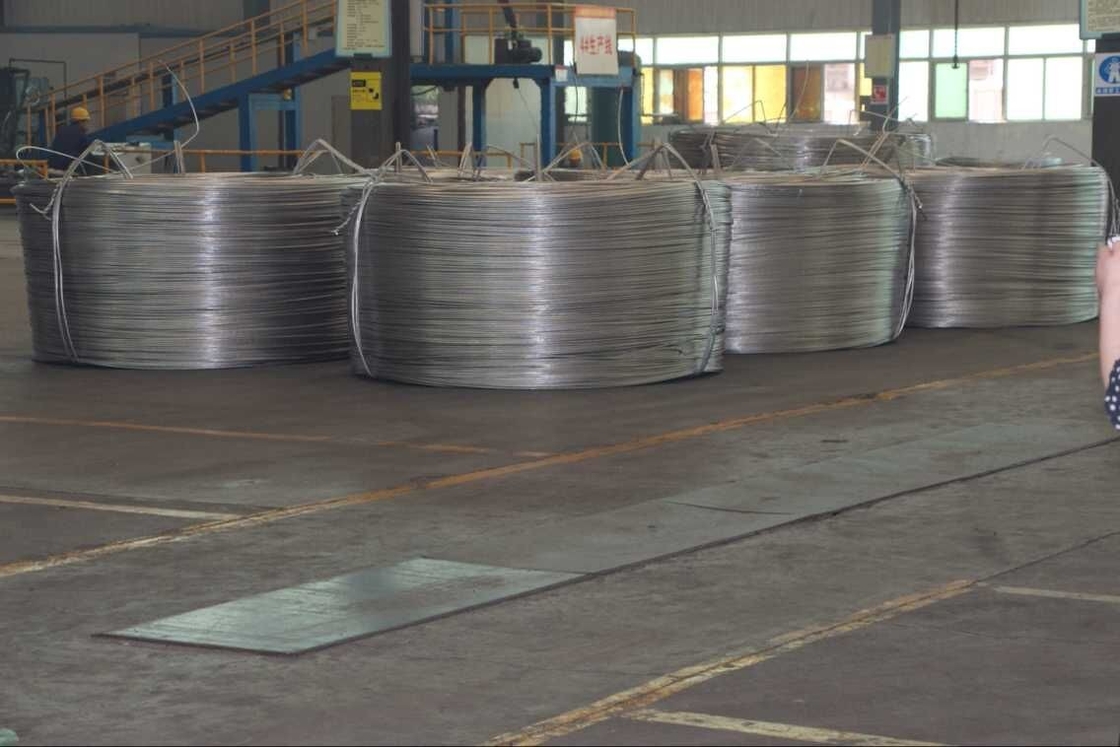

Power Distribution Aluminium Wire Rod Residential Construction Cable

Power Distribution Aluminium Wire Rod Residential Construction Cable

Product Details:

Place of Origin:	Luoyang,China
Brand Name:	Luoyang Sanwu
Certification:	IS09001, IS014001,OHSAS18001
Model Number:	1350/1370/6201/6101/8030/1120

Payment & Shipping Terms:

Minimum Order Quantity:	20Tons
Price:	Negotiable
Packaging Details:	Export standard wooden pallet, reel, or according to customers' request
Delivery Time:	7-15work days
Payment Terms:	T/T, L/C
Supply Ability:	9000 tons per month

Contact Now

Detailed Product Description

Name:	Aluminium Wire Rod	Grade:	EC
Application:	Overhead Insulated Cable	Capacity:	300tons Per Day
Diameter:	8.0mm.9.5mm,12mm	Usage:	Power Distribution
High Light:	Residential Construction Aluminium Wire Rod , Overhead Cable Aluminium Wire Rod , Power Distribution Aluminium Wire Rod

Power Distribution Aluminium Wire Rod Residential Construction Cable

Copper wire can be more affordably replaced with aluminum wire. Although it takes one pound of aluminum wire to equal the current-carrying capability of two pounds of copper wire, it requires a bigger wire gauge than copper wire to carry the same current. This makes aluminum wire a very desirable material for utilities, builders, and other users.

Basic Info.

Model NO.

aluminum wire rod

Transport Package

Wood Pallet or as Client

Specification

as the costumer request

Trademark

Asian Sun/Neutral packing

Origin

Henan, China

HS Code

7604299000

Production Capacity

10000t/Month

Product Description

Hard drawn aluminum wire rod 8mm 9.5mm 1050 1060 1100 1350 Aluminum Wire Rod Manufacture For Electrical Purposes

Aluminum wire rod,also named electric round aluminum rod is mainly used in the main raw materials of wires and cables, and widely used in the construction of power grids at all levels. Through the processing in the production process, it can be used for the production and processing of enameled wire and electromagnetic wire,The surface of the rod is clean, smooth and seamless.
Hard Drawn Aluminum Wire Rod 8mm 9.5mm 1050 1060 1100 1350 Aluminum Wire Rod Manufacture for Electrical Purposes

Hard Drawn Aluminum Wire Rod 8mm 9.5mm 1050 1060 1100 1350 Aluminum Wire Rod Manufacture for Electrical Purposes

Hard Drawn Aluminum Wire Rod 8mm 9.5mm 1050 1060 1100 1350 Aluminum Wire Rod Manufacture for Electrical Purposes

Hard Drawn Aluminum Wire Rod 8mm 9.5mm 1050 1060 1100 1350 Aluminum Wire Rod Manufacture for Electrical Purposes

Hard Drawn Aluminum Wire Rod 8mm 9.5mm 1050 1060 1100 1350 Aluminum Wire Rod Manufacture for Electrical Purposes

Chem ical Com ponents (%)
Type	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn		Ti	Zr	Other		Al
Type	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn		Ti	Zr	per	Toal	Al
1350	0.1	0.4	0.05	0.01	-	0.01	-	0.05	0.03 Ga, 0.05B 0.02 V+Ti	-	-	0.03	0.1	99.5
1370	0.1	0.25	0.02	0.01	0.02	0.01	-	0.04	0.03 Ga, 0.02B 0.02 V+Ti	-	-	0.02	0.1	99.7
1A60	0.1	0.25	0.01	-	-	-	-	-	-	0.02 R+Ti +Mn+Gr	-	0.03	-	99.6

Conductivity and Strength Tens ile
Type		Conductivity (20ºC)/O·m <=	Conductivity (20ºC)/%IACS >=	Strength Tens ile Mpa	Elongation/% (200m m gauge length) >=
1350	0	27.9	61.8	60-95	25
	H12	28.03	61.5	85-115	12
	H13	28.08	61.4	105-135	10
	H14	28.12	61.3	120-150	8
1370	0	27.9	61.8	60-95	25
	H12	28.01	61.55	85-115	11
	H13	28.03	61.5	105-135	8
	H14	28.05	61.47	115-150	5
	H16	28.08	61.4	130-160	5
1A60	0	27.55	62.68	60-90	25
	H12	27.85	61.91	80-110	13
	H13	28.01	61.55	95-115	11
	H14	28.01	61.55	110-130	8
	H16	28.01	61.55	120-150	5

Hard Drawn Aluminum Wire Rod 8mm 9.5mm 1050 1060 1100 1350 Aluminum Wire Rod Manufacture for Electrical Purposes

Hard Drawn Aluminum Wire Rod 8mm 9.5mm 1050 1060 1100 1350 Aluminum Wire Rod Manufacture for Electrical Purposes

Hard Drawn Aluminum Wire Rod 8mm 9.5mm 1050 1060 1100 1350 Aluminum Wire Rod Manufacture for Electrical Purposes

Product Description

Product Description:

(1) It is mainly used for drawing the core of wires and cables.
(2) The surface of the rod is clean, smooth and seamless.
(3) Coil weight: large coil 2000kg, small coil: 300--2000kg.

Main Standard Specifications of 1350 Type,ISO Certificate Aluminum Wire Rod 9.5mm for Wire Drawing:

(1)Aluminum Rod was produced and provided by consulting and following the American standard ASTM B233 and Germany standard EN17152.
(2)Producing and providing the products according to Chinese standard GB/T3954-2001, consulting
and following the American standard ASTM B233:1997, and Germany DIN standard EN 17152:1997.

TABLE 1-Textile Shield for Power Cable for Aluminum Rod

Purity	Chemical Composition%
	AL Minimum	Foreign Content,Maximum
	AL Minimum	Si	Fe	Cu	V+Cr+Mn+Ti	Other
Al99.60E	99.6	0.08	0.20	0.005	0.01	0.3

Type	Tensile Strength,N/mm²	Fracture Toughness%,Min	Electrical Resistance Ωmm²/m 20,Max
A	60-80	25	0.02755
A2	80-110	12	0.02785
A4	95-115	10	0.02801
A6	110-130	8	0.02801
A8	120-150	6	0.02801

TABLE 2- Tensile Property Limits for 1350mm Aluminum Rod

Temper	Tensile Strength
	Ks j	M pa
1350-O	8.5-14.0	59-97
1350-H12 and-H22	12.0-17.0	83-117
1350-H14 and-H24	15.0-20.0	103-138
1350-H16 and-H26	17.0-22.0	117-152

TABLE 3- Electrical Resistivity Limits for Aluninium wire

Temper	Resistivity	Equivalent Volume Conductivity,%
	Max.Ω.mm2/m	IACS Min.
1350-O	0.027899	61.8
1350-H12 and-H22	0.028035	61.5
1350-H14 and-H24	0.028080	61.4
1350-H16 and-H26	0.028126	61.3

Packing Method of 1350 Type,ISO Certificate Aluminum Wire Rod 9.5mm for Wire Drawing:

1.The aluminum rod is usually packed with wooden drum.
2.The aluminum rod will pack according to customer's requirement.
3.Delivery within 7-15 working days after receive your payment.
4.Supply and ship on time.

Inspection:

To make sure customer receive the good quality goods,100% inspection to be done before delivery.

Our Services:

1.Inquiries are typically answered within 12 hours and OEM is welcome.
2.We have experienced QC to control the quality of different kind of cables.
3.We're CCC certificated, and can provide CE, Rohs and SGS certificates before exporting.
4.We have grown from a small factory with an annual turnover of USD$50,000 to over USD50,000,000 during these 10 years.
5.Huge Inventory Allows Us To Ship Your Order Immediately.
6.Our employees are all capable and professinal.They can offer you the Prompt Courteous Service.
7.We ship worldwide.
