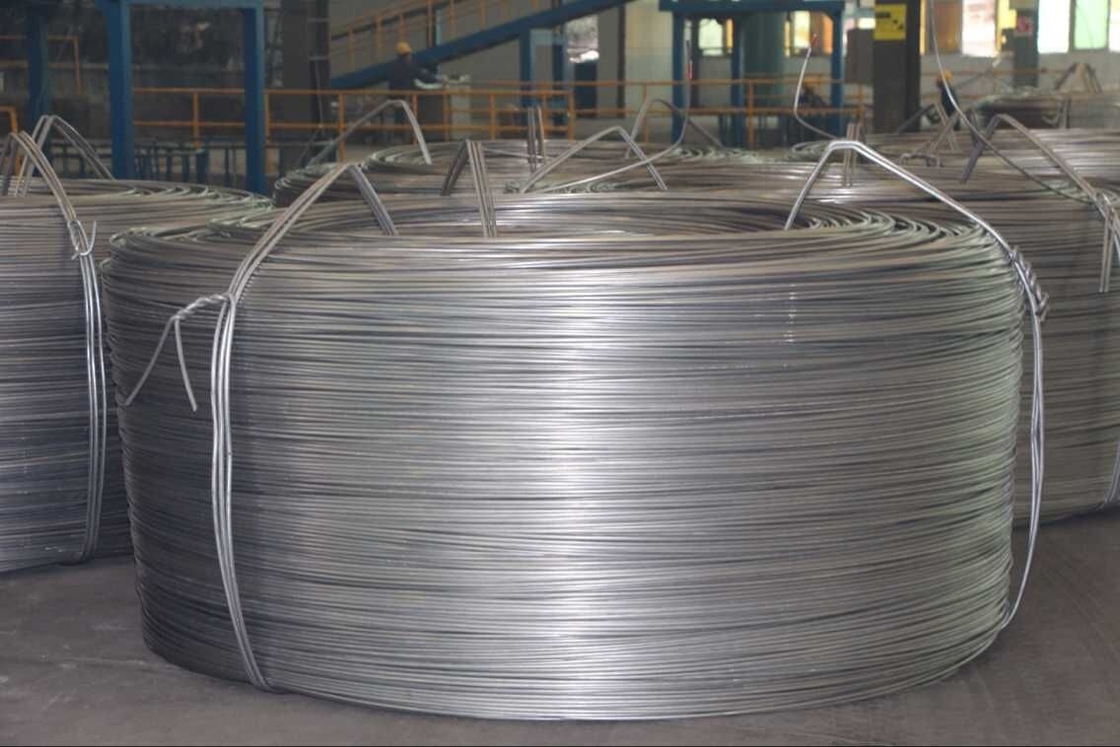

ACSR AAC AAAC ACAR Aluminum Round Stock For Overhead Power Lines

Product Details:

Place of Origin:	Luoyang,China
Brand Name:	Luoyang Sanwu
Certification:	IS09001, IS014001,OHSAS18001
Model Number:	1350/1370/6201/6101/8030/1120

Payment & Shipping Terms:

Minimum Order Quantity:	20Tons
Price:	Negotiable
Packaging Details:	Export standard wooden pallet, reel, or according to customers' request
Delivery Time:	7-15work days
Payment Terms:	T/T, L/C
Supply Ability:	9000 tons per month

Contact Now

Detailed Product Description

Grade:	EC	Application:	ACSR,AAC,AAAC,ACAR
Capacity:	300tons Per Day	Diameter:	8.0mm.9.5mm,12mm
Name:	Aluminum Round Stock	Usage:	Over-Head Power Lines
High Light:	ACAR Aluminum Round Stock , Overhead Power Lines Aluminum Round Stock , AAAC Aluminum Round Stock

ACSR,AAC,AAAC,ACAR Aluminum Round Stock For Over-Head Power Lines

For many years, electrical conductors made of aluminum wire have been in use. Aluminum wire was first used for power transmission lines by electrical utilities not long after the construction of modern power distribution networks in the late 1880s. For over a century, aluminum has been utilized in electrical applications in the US in a safe and efficient manner.

Application:

Flexible conductor of power cable
Conductor of power cable
Conductor of over-head power lines
Over-head power cables & conductors
Enameled wire conductor

Basic Info.

Model NO.

Aluminium Wire Rod

Surface Treatment

Oxidized

Alloy

Non-alloy

Product Name

Aluminum Wire Rod

Aluminum Purity Ratio

99.7%

Density

2.68g/cm3

Ai Wire Rod Grade

1100/1050/1060/1070/1080/1200/1350

Ai Wire Rod Temper

O, T1, T4, T5, T6, H112

Color

White

Tensile Strengthis

More Than 170MPa

Delivery Time

7-15 Days

Hardness

35-149

Surface

Mill Finish, No Stains, Without Rough Selvedge

Usage

Ships, Vessel, Container

Inner Diameter(mm)

570mm or Customized

Outer Diameter(mm)

2~29mm or Customized

Packing

Customer′s Requirements

Pallet Size mm

Standart 150X1480X1480 mm

Transport Package

Standard Export Package, or as Required

Specification

99.7

Trademark

Chenguan Metal

Origin

Hebei, China

HS Code

7604291099

Production Capacity

10000 Tons/Month

Product Description

Hard drawn aluminum wire rod 8mm 9.5mm 1050 1060 1100 1350 Aluminum Wire Rod Manufacture For Electrical Purposes

Aluminum wire rod,also named electric round aluminum rod is mainly used in the main raw materials of wires and cables, and widely used in the construction of power grids at all levels. Through the processing in the production process, it can be used for the production and processing of enameled wire and electromagnetic wire,The surface of the rod is clean, smooth and seamless.
Hard Drawn Aluminum Wire Rod 8mm 9.5mm 1050 1060 1100 1350 Aluminum Wire Rod Manufacture for Electrical Purposes

Chem ical Com ponents (%)
Type	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn		Ti	Zr	Other		Al
Type	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn		Ti	Zr	per	Toal	Al
1350	0.1	0.4	0.05	0.01	-	0.01	-	0.05	0.03 Ga, 0.05B 0.02 V+Ti	-	-	0.03	0.1	99.5
1370	0.1	0.25	0.02	0.01	0.02	0.01	-	0.04	0.03 Ga, 0.02B 0.02 V+Ti	-	-	0.02	0.1	99.7
1A60	0.1	0.25	0.01	-	-	-	-	-	-	0.02 R+Ti +Mn+Gr	-	0.03	-	99.6

Conductivity and Strength Tens ile
Type		Conductivity (20ºC)/O·m <=	Conductivity (20ºC)/%IACS >=	Strength Tens ile Mpa	Elongation/% (200m m gauge length) >=
1350	0	27.9	61.8	60-95	25
	H12	28.03	61.5	85-115	12
	H13	28.08	61.4	105-135	10
	H14	28.12	61.3	120-150	8
1370	0	27.9	61.8	60-95	25
	H12	28.01	61.55	85-115	11
	H13	28.03	61.5	105-135	8
	H14	28.05	61.47	115-150	5
	H16	28.08	61.4	130-160	5
1A60	0	27.55	62.68	60-90	25
	H12	27.85	61.91	80-110	13
	H13	28.01	61.55	95-115	11
	H14	28.01	61.55	110-130	8
	H16	28.01	61.55	120-150	5

Product Description

Product Description:

(1) It is mainly used for drawing the core of wires and cables.
(2) The surface of the rod is clean, smooth and seamless.
(3) Coil weight: large coil 2000kg, small coil: 300--2000kg.

Main Standard Specifications of 1350 Type,ISO Certificate Aluminum Wire Rod 9.5mm for Wire Drawing:

(1)Aluminum Rod was produced and provided by consulting and following the American standard ASTM B233 and Germany standard EN17152.
(2)Producing and providing the products according to Chinese standard GB/T3954-2001, consulting
and following the American standard ASTM B233:1997, and Germany DIN standard EN 17152:1997.

TABLE 1-Textile Shield for Power Cable for Aluminum Rod

Purity	Chemical Composition%
	AL Minimum	Foreign Content,Maximum
	AL Minimum	Si	Fe	Cu	V+Cr+Mn+Ti	Other
Al99.60E	99.6	0.08	0.20	0.005	0.01	0.3

Type	Tensile Strength,N/mm²	Fracture Toughness%,Min	Electrical Resistance Ωmm²/m 20,Max
A	60-80	25	0.02755
A2	80-110	12	0.02785
A4	95-115	10	0.02801
A6	110-130	8	0.02801
A8	120-150	6	0.02801

TABLE 2- Tensile Property Limits for 1350mm Aluminum Rod

Temper	Tensile Strength
	Ks j	M pa
1350-O	8.5-14.0	59-97
1350-H12 and-H22	12.0-17.0	83-117
1350-H14 and-H24	15.0-20.0	103-138
1350-H16 and-H26	17.0-22.0	117-152

TABLE 3- Electrical Resistivity Limits for Aluninium wire

Temper	Resistivity	Equivalent Volume Conductivity,%
	Max.Ω.mm2/m	IACS Min.
1350-O	0.027899	61.8
1350-H12 and-H22	0.028035	61.5
1350-H14 and-H24	0.028080	61.4
1350-H16 and-H26	0.028126	61.3

Packing Method of 1350 Type,ISO Certificate Aluminum Wire Rod 9.5mm for Wire Drawing:

1.The aluminum rod is usually packed with wooden drum.
2.The aluminum rod will pack according to customer's requirement.
3.Delivery within 7-15 working days after receive your payment.
4.Supply and ship on time.

Inspection:

To make sure customer receive the good quality goods,100% inspection to be done before delivery.

Our Services:

1.Inquiries are typically answered within 12 hours and OEM is welcome.
2.We have experienced QC to control the quality of different kind of cables.
3.We're CCC certificated, and can provide CE, Rohs and SGS certificates before exporting.
4.We have grown from a small factory with an annual turnover of USD$50,000 to over USD50,000,000 during these 10 years.
5.Huge Inventory Allows Us To Ship Your Order Immediately.
6.Our employees are all capable and professinal.They can offer you the Prompt Courteous Service.
7.We ship worldwide.
